Industrial Lens – CCL123034MPR2

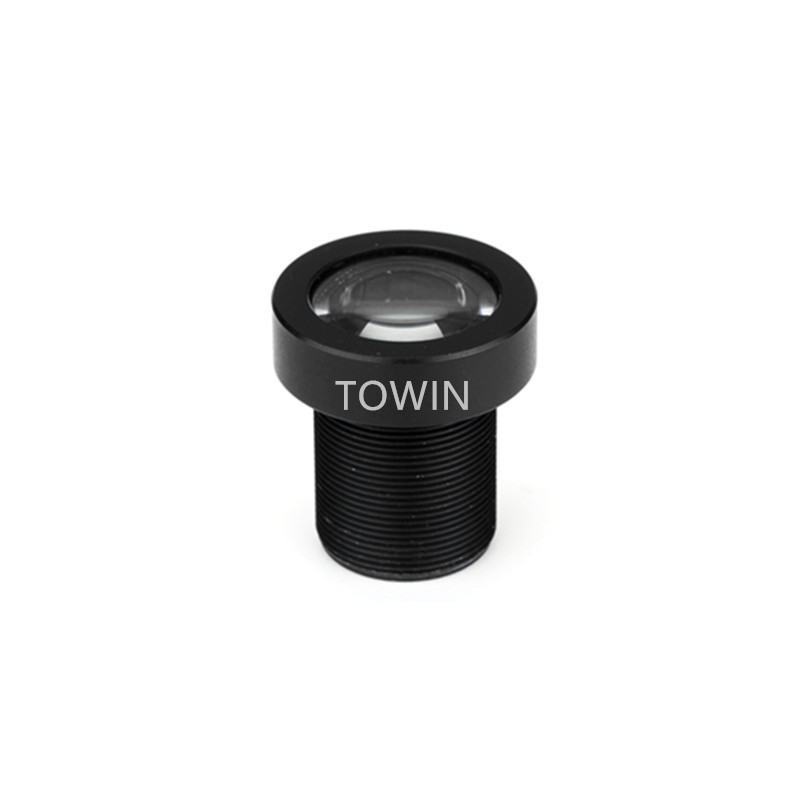

The lens CCL123034MPR2 is 5megapixel Industrial M12 lens.  Wide angle ultra low distortion, less than 1%.  And the corner of the image has the same optical brightness and sharpness as the center.  It is suitable for security CCTV surveillance, video conference, barcode scanning, industrical inspection, action camera.

Product Description

The 3.4mm Industrial M12 lens is designed for high-resolution imaging systems requiring wide-angle coverage, low distortion and compact optical integration. Supporting 1/2″ image formats and 12.4MP resolution, this lens provides a 100° diagonal field of view, with 86° horizontal and 70° vertical coverage for broad scene imaging.

With TV distortion controlled below 1%, the lens provides accurate image geometry for industrial vision, inspection and intelligent imaging applications. The F2.8 fixed aperture offers stable optical performance, while the 0.1m minimum object distance supports close-range imaging requirements.

Featuring an M12x0.5 mount, 24mm total track length and 8G optical construction, this lens provides a compact and high-resolution solution for industrial cameras, machine vision systems, robotics and embedded vision applications.

Key Features

100° Wide Field of View

The 3.4mm focal length provides a 100° diagonal field of view, with 86° horizontal and 70° vertical coverage, enabling cameras to capture broad scenes from a compact installation position.

12.4MP High-Resolution Imaging

Supporting 12.4MP resolution, the lens is designed for high-resolution camera systems requiring detailed image capture and reliable optical performance.

<1% TV Distortion

TV distortion below 1% helps maintain accurate image geometry, making the lens suitable for inspection, measurement and computer vision applications where image accuracy is important.

1/2″ Sensor Compatibility

The lens supports 1/2″ image formats, providing suitable sensor coverage for high-resolution industrial and embedded camera systems.

Compact M12x0.5 Mount

The M12x0.5 interface enables flexible integration into compact camera modules, industrial vision equipment and space-constrained imaging systems.

Close-Range Imaging Capability

With a minimum object distance of 0.1m, the lens supports close-range imaging applications requiring detailed scene capture.

8G Optical Construction

The 8G optical construction provides a multi-element optical design optimized for stable imaging performance and high-resolution applications.

Industrial M12 Lens Applications

Machine Vision Inspection

The 3.4mm M12 lens is suitable for machine vision systems requiring high resolution, broad scene coverage and controlled optical distortion.

Industrial Measurement

The <1% TV distortion performance helps maintain image geometry for visual measurement and inspection applications.

Robotics Vision

The 100° field of view provides broad visual coverage for robotic systems used for object detection, positioning and environmental perception.

Intelligent Vision Systems

The combination of 12.4MP resolution and wide-angle coverage makes the lens suitable for AI-enabled imaging and intelligent camera systems.

Embedded Vision

The compact M12x0.5 mount makes this lens suitable for embedded cameras and intelligent imaging devices where space-efficient optical integration is required.

Why Choose TOWIN as Your Industrial Lens Manufacturer?

TOWIN provides professional optical solutions for M12 lenses, high-resolution lenses and customized industrial imaging systems. With optical design expertise, precision manufacturing capability and experience in high-resolution compact optics, TOWIN supports customers from optical development through mass production.

Frequently Asked Questions

Q: What applications is the 3.4mm M12 lens suitable for?

A: The 3.4mm M12 lens is suitable for machine vision inspection, industrial measurement, robotics vision, intelligent imaging and embedded vision systems requiring high resolution and wide-angle coverage.

Q: What resolution does this M12 lens support?

A: The lens supports 12.4MP resolution, making it suitable for high-resolution industrial cameras and advanced vision systems requiring detailed image capture.

Q: What is the field of view of this 3.4mm lens?

A: The lens provides a 100° diagonal field of view, with 86° horizontal and 70° vertical coverage.

Q: Why is less than 1% TV distortion important for industrial imaging?

A: Low TV distortion helps reduce image deformation and maintain more accurate image geometry, which is beneficial for inspection, measurement and computer vision applications.

Q: What sensor size is compatible with this M12 lens?

A: This lens supports 1/2″ image formats and uses an M12x0.5 mount interface for compatible industrial and embedded camera systems.

Q: What is the minimum object distance of this lens?

A: The minimum object distance is 0.1m, allowing the lens to support close-range imaging and inspection applications.

Q: What is the advantage of the 8G optical construction?

A: The 8G optical construction uses multiple optical elements to support stable imaging performance and high-resolution image capture in compact camera systems.

Q: Can TOWIN customize this high-resolution M12 lens?

A: Yes. TOWIN provides OEM and ODM customization services, including optical optimization, mechanical adjustments and customized lens solutions for different industrial and intelligent imaging systems.
