M12 Lens Solutions for Industrial Imaging
Towin provides high-performance M12 lenses designed for machine vision, robotics, smart devices, security systems, and embedded imaging applications. Our compact board lenses deliver excellent image quality, low distortion, and reliable performance for industrial environments.

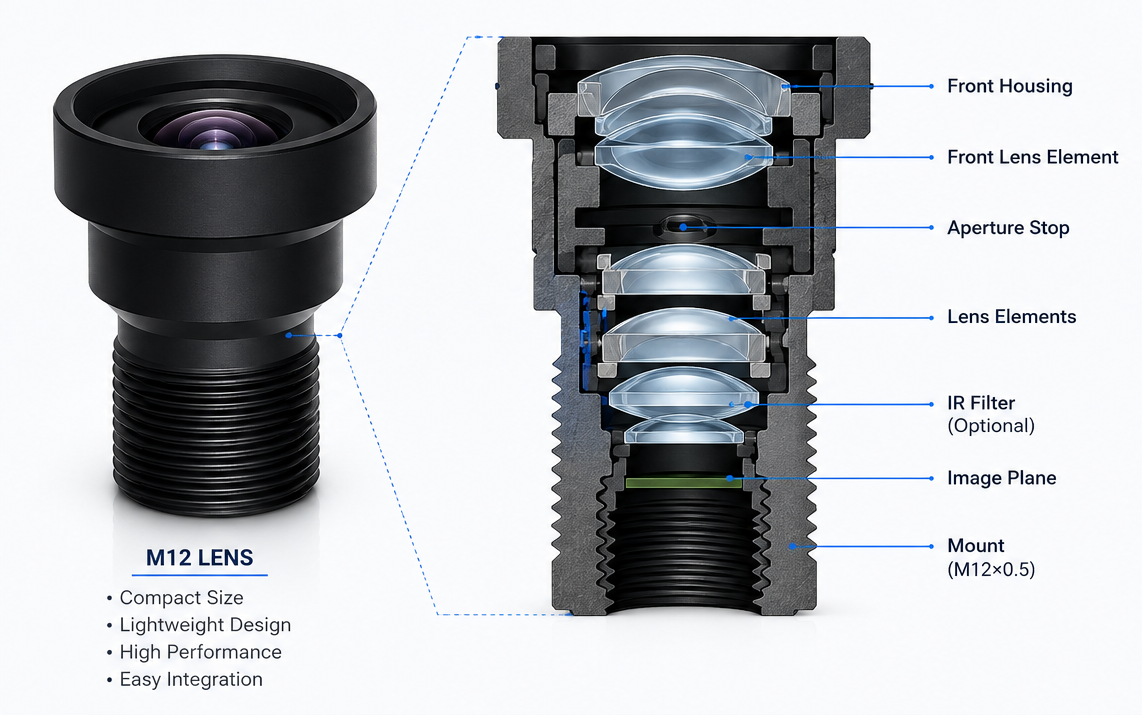

What Is an M12 Lens?
An M12 lens, also known as a board lens or S-mount lens, uses a standardized M12 × 0.5 thread interface. Due to its compact size, lightweight construction, and flexible optical configurations, M12 lenses are widely used in embedded vision systems, AI cameras, robotics, smart devices, and industrial imaging equipment.
Compared with larger C-mount lenses, M12 lenses provide a more compact solution while maintaining excellent optical performance for many machine vision applications.
Why Choose M12 Lenses for Industrial Imaging?
Compact & Lightweight
M12 lenses feature a compact 12mm thread mount, making them ideal for embedded cameras and space-limited systems.
Key Benefits
Applications
Cost-Effective Solution
Compared with traditional C-Mount lenses, M12 lenses provide a more economical solution for large-scale camera deployment.
Key Benefits
Applications
Flexible Optical Options
M12 lenses are available in various focal lengths, from ultra-wide-angle to telephoto designs, supporting different FOV requirements.
Key Benefits
Applications
AI Vision Optimized
M12 lenses provide compact optical solutions for AI-powered vision systems requiring fast integration and reliable imaging performance.
Key Benefits
Applications
M12 Lens Key Specifications
Sensor Support
1/4" – 1/1.7"
Resolution
2MP – 20MP
FOV Range
30° – 200°
Focal Length
1.8mm – 50mm
Mount
M12 × 0.5
Operating Temp.
-40°C – 85°C
Customization
OEM / ODM
Typical M12 Lens Applications
M12 Lens Applications Overview
1. Machine Vision
2. Robotics
3. Smart Security
4.Drone
5. Traffic
6.Al Camera
Real-World M12 Lens Use Cases
Detect tiny soldering defects, missing components, and low-contrast codes with high accuracy.
Low distortion M12 lenses with high-resolution optics for accurate image capture and measurement.
Provide reliable visual information for navigation, localization, obstacle detection, and path planning.
Wide-angle and low-distortion m12 lenses optimized for robotic vision systems and measurements.
Capture clear facial details and monitor large areas under varying lighting conditions.
IR-corrected and wide-angle M12 lenses designed for day and night surveillance.
Capture high-resolution images while maintaining lightweight payload requirements.
Compact and lightweight M12 lenses with optimized optical performance for UAV systems.
Capture vehicles and license plates accurately in complex traffic environments.
Low distortion and IR-compatible M12 lenses for 24/7 traffic monitoring and analytics.
Embedded AI devices require compact optical solutions with high performance.
Compact M12 lenses with sensor matching for edge AI vision applications.
Key Advantages of Towin M12 Lens Solutions
Recommended M12 Lens Products
Low Distortion Lens
M12 vs C-Mount Lens: How to Choose?
Choose M12 Lens if:
- ✅Compact & Lightweight Camera
- ✅Embedded Vision Solutions
- ✅AI Camera / Edge Computing
- ✅Drones / UAV Imaging
- ✅Robotics & AGV Systems
- ✅Cost-Sensitive Projects
- ✅Easy Integration & Space Saving
Choose C-Mount Lens if:
- ☑️Large Format or High Resolution
- ☑️Factory Inspection & Metrology
- ☑️Telecentric Lens Applications
- ☑️Long Working Distance
- ☑️High Accuracy Measurement
- ☑️Professional Machine Vision
- ☑️Flexibility in Lens Selection
How to Choose the Right M12 Lens
Selecting an M12 lens depends on multiple factors, including:
- Sensor size
- Field of view requirements
- Working distance
- Resolution requirements
- Distortion tolerance
- Environmental conditions
Engineers should evaluate both optical performance and mechanical integration when selecting an industrial M12 lens.
M12 Lens Selection Workflow
Select Sensor
Choose the right sensor size and type for your camera module.
1/4" 1/3" 1/2.7"
1/2.3" 1/1.8" 1/1.7"
Determine FOV
Define the field of view required for your application.
FOV 30° – 200°+
Choose Working Distance
Determine the distance between the lens and the target object.
0.1m – ∞
Calculate Focal Length
Use FOV, sensor size and working distance to calculate the focal length.
1.8mm – 50mm+
Choose Resolution
Select the resolution (MP) that meets your imaging requirements.
2MP – 20MP+
Select Lens Model
Choose the best-matched M12 lens from our recommended models.
M12 Lens Compatibility by Sensor Size
Selecting the correct M12 lens starts with understanding sensor size compatibility. Different image sensors require different image circle coverage, focal lengths, and optical designs. The table below provides a quick reference for common sensor formats used in machine vision, robotics, security cameras, and embedded AI systems.
| Sensor Size | Typical Resolution | Common Applications | Recommended Guide |
|---|---|---|---|
| 1/4" | 2MP | Smart Home Cameras | Learn More |
| 1/3" | 2MP–5MP | Security Cameras | Learn More |
| 1/2.7" | 5MP | AI Vision Cameras | Learn More |
| 1/2.3" | 8MP–12MP | Robotics & Drones | Learn More |
| 1/1.8" | 8MP–16MP | Machine Vision | Learn More |
| 1/1.7" | 12MP–20MP | High-Resolution Imaging | Learn More |
Why Choose Towin as Your M12 Lens Manufacturer
📇 Optic Assembly
Precision assembly in controlled environments ensures high alignment accuracy and consistency.
📈 MTF Testing
100% optical performance testing (MTF, FOV, Distortion) guarantees stable and reliable imaging quality.
📚 Lens Coating
Multi-layer coating technology delivers high transmittance, low reflection and excellent durability.
🛡️ Clean Room
Dust-free clean room production eliminates contamination and ensures product reliability.
📦 Packing & QC
Individual inspection and secure packaging ensure products arrive in perfect condition.
🚚 Fast Delivery
Large inventory and efficient supply chain enable fast lead times and on-time global delivery.
Custom M12 Lens Design Services
Towin supports OEM and ODM lens development projects for industrial imaging manufacturers. Our optical engineering team can optimize focal length, field of view, distortion performance, sensor compatibility, and mechanical structure according to project requirements.
- ✓ Optical Design
- ✓ Mechanical Design
- ✓ Prototype Development
- ✓ Mass Production Support
- ✓ Global Delivery
Learn More About M12 Lenses
Frequently Asked Questions
Looking for the Right M12 Lens Solution?
Whether you are developing a machine vision system, robotics platform, AI camera, or embedded imaging device, Towin can help you find the optimal M12 lens solution.
Contact our engineering team for expert lens recommendations and custom optical design support.
