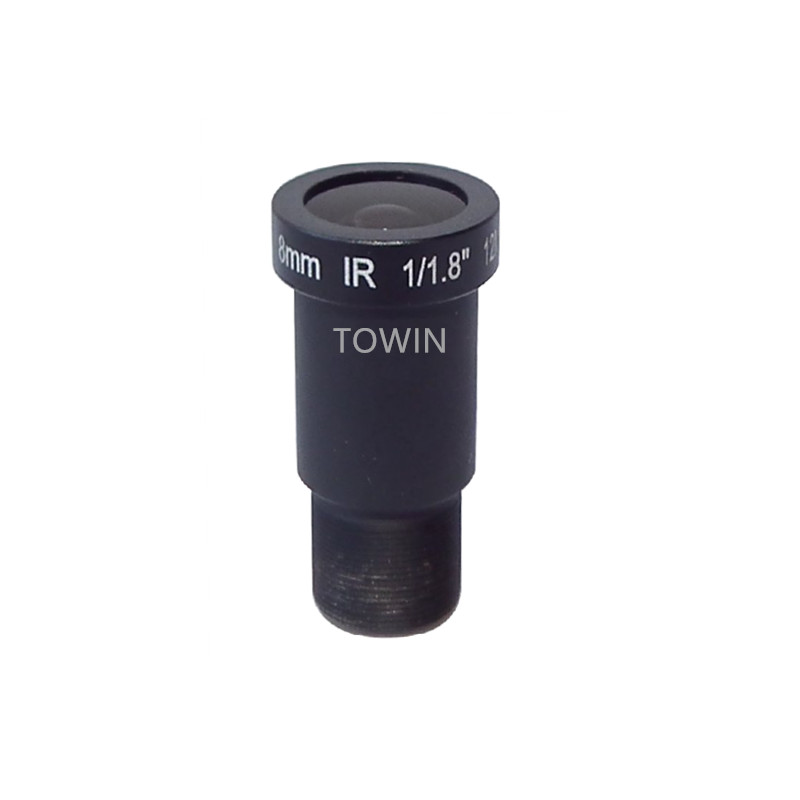

M12 Lens – CCL118080MPR
8mm F1.8 12 megapixel, IR corrected lens, S-mount, CCTV, IMX226
CCL118080MPR is a 12 megapixel IR corrected M12 lens for 1/1.8″ sensor, such as IMX226. And it is 8mm S-mount. The aperture is F1.8 for smart city security suveillance.
| IMAGE FORMAT | 1/1.8″ |
| FOCAL LENGTH | 8mm |
| F.O.V. | 70°(D) |
| 56°(H) | |
| 40° (V) | |
| RESOLUTION | 12 MP |
| APERTURE | F1.8 |
| DISTORTION | -16% |
| MOUNT | M12 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 10.02mm |
| CONSTRUCTION | 7G |
Product Description
The 8mm IR corrected M12 lens is designed for high-resolution industrial cameras, machine vision systems and embedded imaging applications requiring detailed image capture and a balanced field of view. Supporting 1/1.8″ image formats and 12MP resolution, this lens provides a 70° diagonal field of view, with 56° horizontal and 40° vertical coverage.
The F1.8 aperture provides strong light-gathering capability, helping maintain clear and detailed images under varying lighting conditions. The lens features a fixed iris, manual focus and fixed zoom configuration, allowing practical optical adjustment during camera installation and system setup.
With an M12 mount, 10.02mm B.F.L. and 7G optical construction, this lens provides a compact, high-resolution optical solution for machine vision, industrial inspection, robotics and intelligent imaging systems.
Key Features
12MP High-Resolution Imaging
Supporting up to 12MP resolution, the 8mm IR corrected M12 lens is designed for applications requiring detailed image capture and high-resolution visual information.
70° Wide Field of View
The lens provides a 70° diagonal field of view, with 56° horizontal and 40° vertical coverage, offering a balanced combination of scene coverage and image detail.
1/1.8″ Sensor Compatibility
Designed for 1/1.8″ image formats, the lens provides suitable sensor coverage for high-resolution industrial and machine vision cameras.
F1.8 Large Aperture
The F1.8 aperture provides good light-gathering capability, helping improve image brightness and maintain image quality in challenging lighting environments.
7G Optical Construction
The 7G optical construction provides a multi-element optical design that supports stable imaging performance and high-resolution image output.
Compact M12 Mount
The M12 interface enables flexible integration into compact camera modules, embedded vision systems and space-constrained industrial equipment.
Manual Focus Adjustment
The manual focus design allows users to fine-tune image sharpness according to different working distances and camera installation conditions.
IR Corrected M12 Lens Applications
Machine Vision Inspection
This 8mm M12 lens is suitable for high-resolution machine vision systems requiring detailed image capture for inspection, defect detection and quality control.
Industrial Measurement
The high-resolution imaging capability makes the lens suitable for visual measurement and inspection applications where detailed image information is important.
Factory Automation
The lens can be integrated into automated production systems, inspection equipment and industrial cameras for monitoring and quality control.
Robotics Vision
The 70° field of view and 12MP resolution provide detailed visual information for robotic inspection, positioning and object recognition.
Intelligent Vision Systems
The combination of high resolution, compact M12 mounting and F1.8 aperture makes the lens suitable for AI-powered industrial and embedded imaging systems.
Why Choose TOWIN as Your IR Corrected M12 Lens Manufacturer?
TOWIN provides professional optical solutions for M12 lenses, high-resolution lenses and customized industrial imaging systems. With optical design expertise, precision manufacturing capability and experience in high-resolution compact optics, TOWIN supports customers from optical development through mass production.
| TOWIN Capability | Customer Benefits |
|---|---|
| High-resolution optical design expertise | Optimized lens solutions for demanding imaging applications |
| M12 lens development experience | Compact optical solutions for industrial and embedded cameras |
| Machine vision lens expertise | Solutions for inspection, automation and robotics applications |
| OEM and ODM customization support | Flexible optical and mechanical customization |
| Precision manufacturing capability | Stable optical performance and consistent product quality |
| Strict quality control process | Reliable lenses for demanding industrial applications |
Frequently Asked Questions
Q: What applications is the 8mm M12 lens suitable for?
A: The 8mm M12 lens is suitable for machine vision inspection, industrial measurement, factory automation, robotics vision and intelligent imaging systems requiring high-resolution image capture.
Q: What resolution does this M12 lens support?
A: The lens supports 12MP resolution, making it suitable for high-resolution industrial cameras and machine vision systems requiring detailed image information.
Q: What sensor size is compatible with this lens?
A: This lens supports 1/1.8″ image formats and uses an M12 mount interface for compatible industrial and embedded camera systems.
Q: What is the field of view of the 8mm M12 lens?
A: The lens provides a 70° diagonal field of view, with 56° horizontal and 40° vertical coverage.
Q: What is the advantage of the F1.8 aperture?
A: The F1.8 aperture provides good light-gathering capability, helping the camera maintain brighter and clearer images in low-light or changing illumination environments.
Q: Can the focus of this M12 lens be adjusted manually?
A: Yes. The lens features manual focus, allowing users to adjust image sharpness according to the working distance and specific camera installation requirements.
Q: Can TOWIN customize high-resolution M12 lenses for specific projects?
A: Yes. TOWIN provides OEM and ODM customization services, including optical optimization, mechanical adjustments and customized M12 lens solutions for different industrial imaging systems.
Q: Does TOWIN support mass production of high-resolution M12 lenses?
A: Yes. TOWIN supports customized optical development and mass production with professional manufacturing processes and strict quality control systems.
