Low Distortion Lens – S06011806128

Product Description

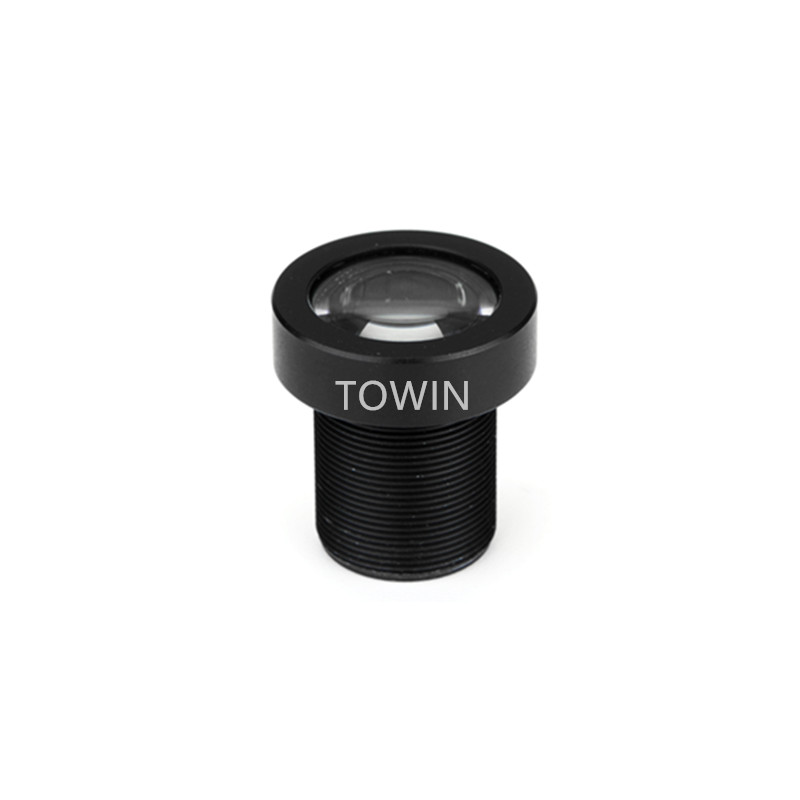

The 6mm low distortion M12 lens is designed for high-resolution industrial imaging systems requiring low distortion, reliable image quality and a balanced field of view. Supporting 1/1.8″ image formats and 5MP resolution, this lens provides a 72° diagonal field of view, with 61° horizontal and 47° vertical coverage for precise scene capture.

With TV distortion controlled below 0.5%, the lens helps maintain accurate image geometry, making it suitable for machine vision inspection, measurement and automated imaging applications. The F2.8 fixed aperture provides stable optical performance, while the 0.1m minimum object distance supports close-range industrial imaging.

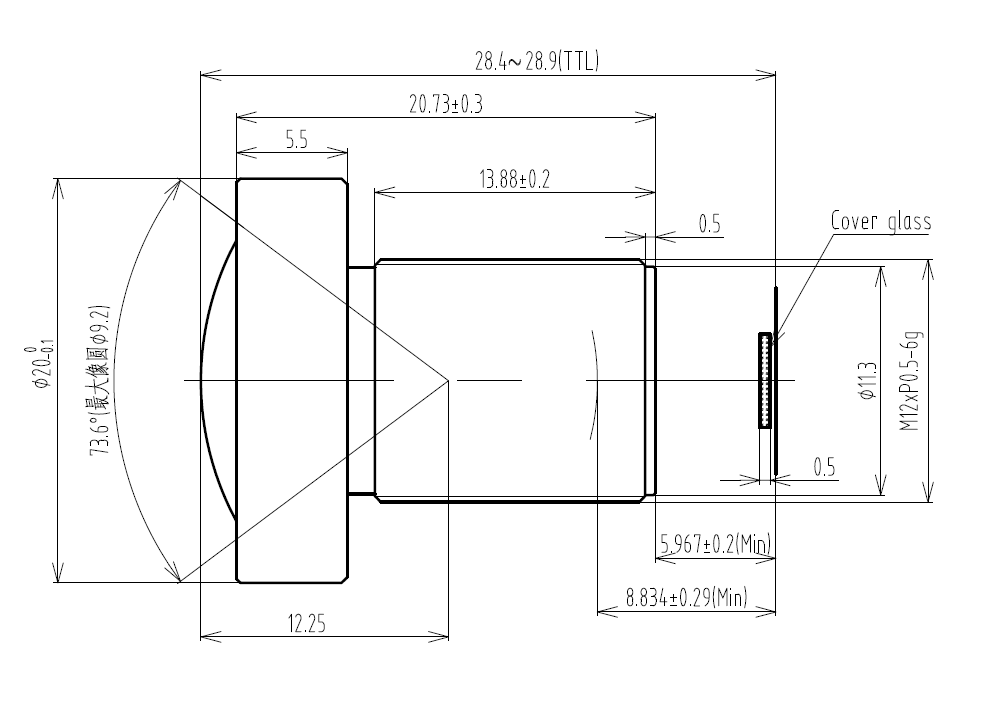

Featuring an M12x0.5 mount and 7G optical construction, the lens offers a compact and reliable solution for industrial cameras, embedded vision systems and automated inspection equipment.

Key Features

<0.5% Low Distortion Performance

The 6mm M12 lens provides TV distortion below 0.5%, helping preserve image geometry and reduce optical deformation in inspection and measurement applications.

5MP High-Resolution Imaging

Supporting 5MP resolution, the lens delivers detailed image output for machine vision, industrial inspection and automated imaging systems.

72° Field of View

The 72° diagonal field of view, combined with 61° horizontal and 47° vertical coverage, provides a balanced combination of scene coverage and image detail.

1/1.8″ Sensor Compatibility

Designed for 1/1.8″ image formats, the lens provides suitable sensor coverage for high-resolution industrial and embedded camera systems.

Compact M12x0.5 Mount

The M12x0.5 interface allows flexible integration into compact industrial cameras and embedded vision systems where installation space is limited.

7G Optical Construction

The 7G optical construction supports stable optical performance and reliable image quality for demanding industrial imaging applications.

0.1m Minimum Object Distance

The short 0.1m minimum object distance enables close-range imaging for inspection, monitoring and compact machine vision applications.

Applications

Machine Vision Inspection

This 6mm M12 lens is suitable for automated inspection systems requiring high resolution, low distortion and reliable image geometry.

Industrial Measurement

The <0.5% TV distortion performance helps maintain accurate image representation for visual measurement and dimensional inspection applications.

Factory Automation

The lens can be integrated into production line cameras, automated inspection equipment and manufacturing systems requiring stable optical performance.

Robotics Vision

The balanced field of view and 5MP resolution make the lens suitable for robotic positioning, object detection and visual inspection.

Embedded Vision Systems

The compact M12x0.5 mount makes this lens suitable for embedded cameras and intelligent imaging devices with limited installation space.

Why Choose TOWIN as Your Industrial Lens Manufacturer?

TOWIN provides professional optical solutions for M12 lenses, low-distortion lenses and customized industrial imaging systems. With optical design expertise, precision manufacturing capability and experience in machine vision optics, TOWIN supports customers from optical development through mass production.

Frequently Asked Questions

Q: What applications is the 6mm M12 lens suitable for?

A: The 6mm M12 lens is suitable for machine vision inspection, industrial measurement, factory automation, robotics vision and embedded imaging systems requiring high resolution and low distortion.

Q: Why is low distortion important for machine vision lenses?

A: Low distortion helps preserve accurate image geometry and minimize optical deformation, which is important for measurement, inspection and computer vision applications.

Q: What sensor size is compatible with this M12 lens?

A: This lens supports 1/1.8″ image formats and uses an M12x0.5 mount interface for compatible industrial and embedded camera systems.

Q: What resolution does this lens support?

A: The lens supports 5MP resolution, providing detailed image capture for industrial inspection, automation and machine vision applications.

Q: What is the field of view of this 6mm M12 lens?

A: The lens provides a 72° diagonal field of view, with 61° horizontal and 47° vertical coverage.

Q: What is the minimum object distance of this lens?

A: The minimum object distance is 0.1m, making the lens suitable for close-range industrial inspection and imaging applications.

Q: What is the advantage of the 7G optical construction?

A: The 7G optical construction uses multiple optical elements to provide stable optical performance and reliable image quality for industrial imaging systems.

Q: Can TOWIN customize M12 low-distortion lenses for specific projects?

A: Yes. TOWIN provides OEM and ODM customization services, including optical optimization, mechanical adjustments and customized lens solutions for different machine vision and industrial imaging systems.
