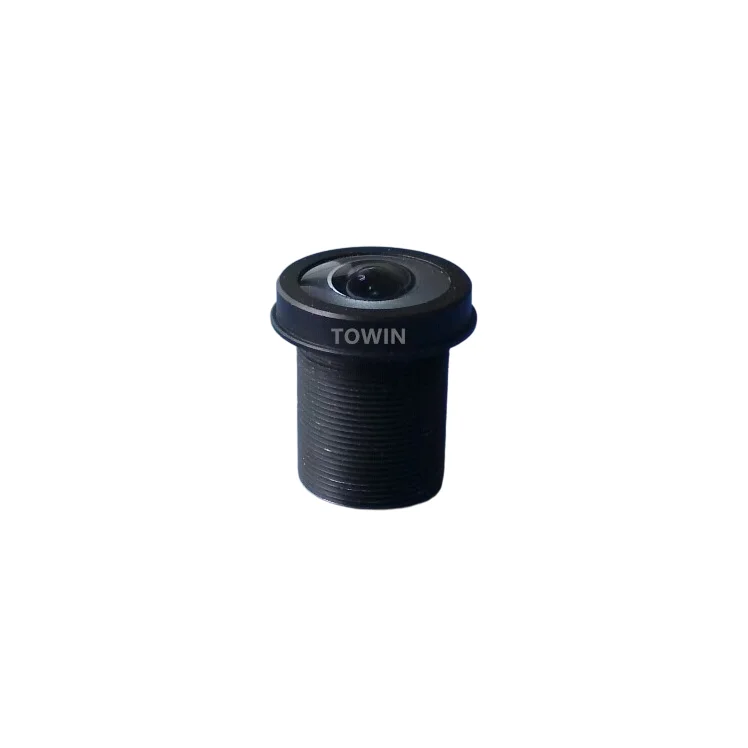

The M12 fisheye lens CCL13013MP with image circle Φ3.52mm will be good for 1/3″ megapixel sensors. It is with IR corrected for 360 panoramic CCTV application.
| IMAGE FORMAT | Φ3.52mm |
| FOCAL LENGTH | 1.3mm |
| F.O.V.(1/3″) | 180°(D) |
| 180°(H) | |
| 180°(V) | |
| RESOLUTION | 3Megapixel |
| OPTICAL DISTORTION | <-100% |
| APERTURE | F2.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| T.T.L. | 23.89mm |
| M. B.F.L. | 5.45mm |
| CONSTRUCTION | 6G |
Product Description
The 1.3mm M12 fisheye lens is designed for compact imaging systems requiring extremely wide scene coverage and reliable image performance. Supporting a Φ3.52mm image format and 3MP resolution, this lens provides a 180° field of view across diagonal, horizontal and vertical directions when used with a 1/3″ format, enabling cameras to capture an exceptionally broad scene from a single optical module.
Featuring an F2.0 fixed aperture and 6G optical construction, the lens provides stable optical performance for wide-angle imaging applications. The 0.2m minimum object distance supports relatively close-range panoramic imaging, while the M12x0.5 mount enables straightforward integration into compact camera systems.
With a total track length of 23.89mm and 5.45mm M.B.F.L., this fisheye lens is suitable for panoramic cameras, smart security systems, embedded vision devices and other applications requiring maximum field-of-view coverage.
Key Features
180° Ultra-Wide Field of View
The 1.3mm fisheye lens provides an extremely wide 180° field of view, enabling cameras to capture a very large scene and significantly reduce blind areas.
3MP Resolution Performance
Supporting 3MP resolution, the lens provides clear image capture for security monitoring, embedded vision and panoramic imaging applications.
Compact M12x0.5 Mount
The M12x0.5 interface provides a compact optical solution for small camera modules, embedded devices and space-constrained imaging systems.
F2.0 Fixed Aperture
The F2.0 aperture provides stable light transmission and consistent imaging performance for different wide-angle camera applications.
6G Optical Construction
The 6G optical construction supports stable optical performance while maintaining a compact lens structure suitable for miniature camera systems.
Close-Range Panoramic Imaging
With a minimum object distance of 0.2m, the lens supports wide-area imaging in relatively close-range environments.
M12 Fisheye Lens Applications
Panoramic Security Cameras
This 1.3mm M12 fisheye lens is suitable for panoramic surveillance cameras requiring extremely wide scene coverage and reduced blind spots.
Smart Security Systems
The 180° field of view allows smart security cameras to monitor large areas from a single camera position, supporting broad environmental awareness.
Embedded Vision Systems
The compact M12x0.5 mount makes this lens suitable for embedded cameras, intelligent devices and space-limited imaging modules.
Robotics Vision
The ultra-wide viewing angle can help robotic systems capture more surrounding visual information for perception and environmental monitoring.
Industrial Wide-Area Monitoring
The lens can be used for industrial applications requiring broad scene observation, equipment monitoring and visual awareness.
Why Choose TOWIN as Your M12 Fisheye Lens Manufacturer?
TOWIN provides professional optical solutions for M12 lenses, fisheye lenses and customized imaging systems. With optical design expertise, precision manufacturing capability and experience in compact wide-angle optics, TOWIN supports customers from optical development through mass production.
| TOWIN Capability | Customer Benefits |
|---|---|
| Advanced optical design expertise | Optimized fisheye solutions for ultra-wide imaging requirements |
| M12 lens development experience | Compact optical solutions for embedded camera systems |
| Wide-angle optical design capability | Solutions for panoramic and broad-area imaging |
| OEM and ODM customization support | Flexible optical and mechanical customization |
| Precision manufacturing capability | Stable optical performance and consistent product quality |
| Strict quality control process | Reliable products for long-term imaging applications |
Frequently Asked Questions
Q: What applications is the 1.3mm M12 fisheye lens suitable for?
A: The 1.3mm M12 fisheye lens is suitable for panoramic security cameras, smart security systems, embedded vision devices, robotics and industrial monitoring applications requiring an ultra-wide field of view.
Q: What is the field of view of this 1.3mm fisheye lens?
A: When used with a 1/3″ image format, the lens provides a 180° field of view in the diagonal, horizontal and vertical directions according to the supplied specifications.
Q: What image resolution does this M12 fisheye lens support?
A: The lens supports 3MP resolution, making it suitable for compact panoramic and wide-angle imaging systems.
Q: What is the advantage of an M12 fisheye lens for embedded cameras?
A: M12 fisheye lenses combine a compact mounting interface with an extremely wide field of view, making them suitable for small cameras that require broad environmental coverage.
Q: What is the minimum object distance of this lens?
A: The minimum object distance is 0.2m, allowing the lens to capture relatively close scenes while maintaining its ultra-wide viewing capability.
Q: What is the advantage of the 6G optical construction?
A: The 6G optical construction provides a multi-element optical design that supports stable imaging performance while maintaining a compact lens structure.
Q: Can TOWIN customize M12 fisheye lenses for specific applications?
A: Yes. TOWIN provides OEM and ODM customization services, including optical optimization, mechanical adjustments and customized fisheye lens solutions for different camera platforms.
Q: Does TOWIN support mass production of M12 fisheye lenses?
A: Yes. TOWIN supports customized optical development and mass production with professional manufacturing processes and strict quality control systems.
