S5318620F
Wide-angle 3-Megapixel M12 CCTV lens with Built-In IR Filter, 186° FOV, F2.0 aperture, IP69K waterproof rating for security surveillance.
S5318620F is Fisheye 3-Megapixel M12 CCTV lens with Built-In IR Filter, 186° FOV, F2.0 aperture, IP69K waterproof rating for security surveillance.
| IMAGE FORMAT | Max Φ5.3mm |
| FOCAL LENGTH | 1.6mm |
| F.O.V. (1/2.42″ ISX031) | 186° (D=7.45) |
| 186° (H=5.81) | |
| 162° (V=4.66) | |
| RESOLUTION | 3 Megapixel |
| F-θ DISTORTION | <-7.9% |
| APERTURE | F2.0 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |

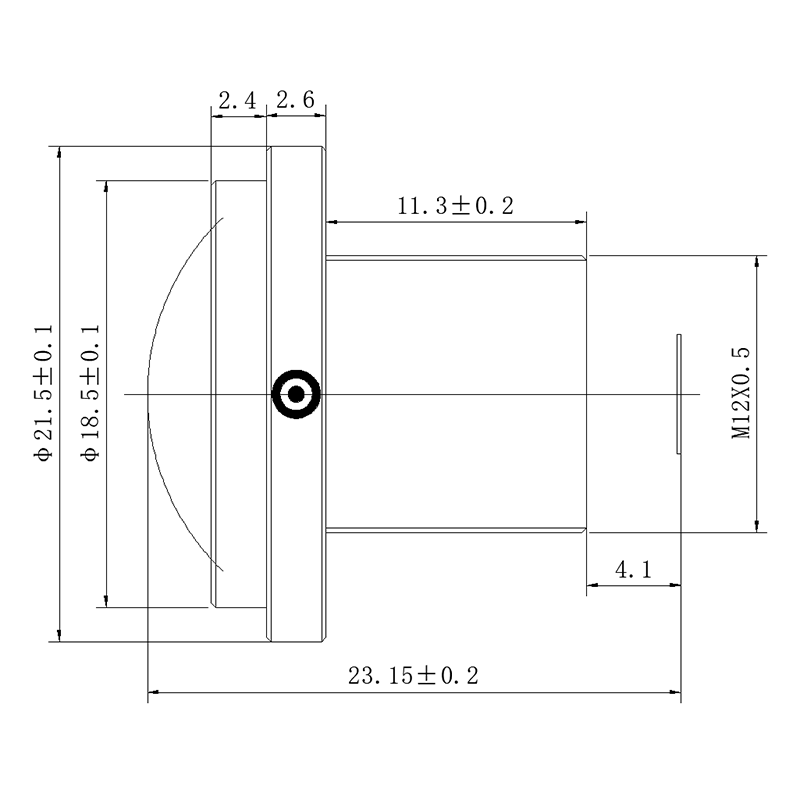

| T.T.L. | 23.15mm |
| STRUCTURE | 6G+IRCF |
| WATERPROOF | IP69K |
