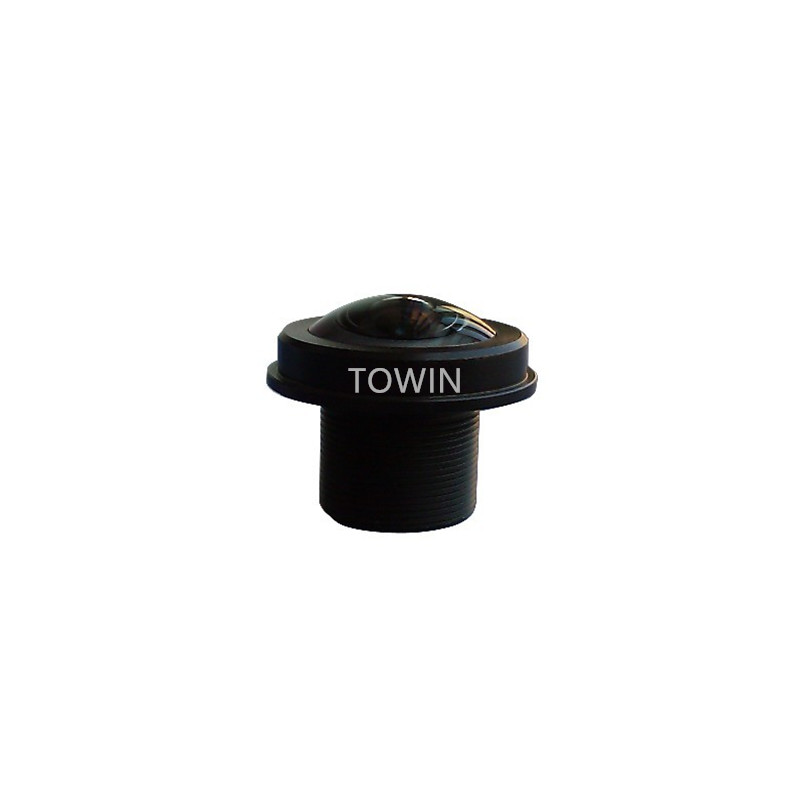

Fisheye Lens – CCL12016MP
5MP fisheye S-mount mini lens, image circle Φ4.7mm for 1/2″ 185 degree, home camera, CCTV surveillance
CCL12016MP is a 5MP fisheye S-mount mini lens. It has image circle Φ4.7mm for 1/2″ with 185 degree. And it is F2.0 widely used in home camera, CCTV surveillance.
| IMAGE FORMAT | Φ4.7 |
| FOCAL LENGTH | 1.6mm |
| F.O.V. | 185°(D) |
| 185°(H) | |
| 185°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-99% |
| APERTURE | F2.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.3m |
| T.T.L. | 20.7mm |
| DIMENSION | Φ20×16.4mm |
Key Features
185° Ultra-Wide Field of View
The 1.6mm fisheye lens provides an ultra-wide 185° field of view, allowing cameras to capture extensive scenes and reduce blind spots in panoramic imaging applications.
High-Resolution 5MP Imaging Performance
Supporting 5MP resolution, this M12 fisheye lens delivers detailed image output for security, monitoring and industrial vision systems requiring wide-area image capture.
Compact M12x0.5 Mount Design
The compact M12 mount provides easy integration into embedded cameras and space-limited imaging systems while maintaining reliable optical performance.
Fisheye Optical Design for Panoramic Imaging
The ultra-wide fisheye structure enables panoramic scene coverage, making it suitable for applications requiring broad environmental awareness.
Fixed Aperture for Stable Imaging
The F2.0 fixed aperture design provides consistent optical performance and simplifies integration into different camera platforms.
Lightweight and Compact Structure
With a Φ20×16.4mm compact dimension, the lens is suitable for miniaturized cameras and embedded vision solutions where size and weight are critical factors.
Fisheye Lens Applications
Panoramic Security Cameras
This 1.6mm M12 fisheye lens is suitable for panoramic surveillance systems requiring wide-area coverage and reduced blind spots.
Smart Security Applications
The ultra-wide field of view supports intelligent security systems, allowing cameras to monitor large areas with fewer devices.
Embedded Vision Systems
The compact M12 design makes this lens suitable for embedded cameras, robotics vision and compact imaging equipment.
Industrial Wide-Area Monitoring
The lens can be used for industrial environments requiring broad scene capture, positioning assistance and visual monitoring.
VR and Immersive Imaging Applications
The 185° fisheye design provides wide-angle image capture suitable for panoramic and immersive imaging solutions.
Why Choose TOWIN as Your Fisheye Lens Manufacturer?
TOWIN provides professional optical solutions for fisheye lenses, M12 lenses and customized imaging applications. With optical design expertise, precision manufacturing capability and experience in compact optical systems, TOWIN supports customers from optical development to mass production.
| TOWIN Capability | Customer Benefits |
|---|---|
| Advanced optical design capability | Optimized fisheye lens solutions for ultra-wide imaging requirements |
| M12 lens development experience | Compact optical solutions for embedded vision applications |
| OEM and ODM customization support | Flexible customization for different camera platforms |
| Precision manufacturing process | Stable optical performance and consistent product quality |
| Customized optical solutions | Support for security, industrial and intelligent imaging projects |
Frequently Asked Questions
Q: What applications is the 1.6mm M12 fisheye lens suitable for?
A: The 1.6mm M12 fisheye lens is suitable for panoramic cameras, security surveillance, embedded vision systems, industrial monitoring and applications requiring ultra-wide image coverage.
Q: What is the advantage of a 185° fisheye lens?
A: A 185° fisheye lens provides an extremely wide field of view, allowing cameras to capture larger scenes and minimize blind areas compared with standard wide-angle lenses.
Q: What sensor size is compatible with this M12 fisheye lens?
A: This lens is designed for Φ4.7 image formats and uses an M12x0.5 mount interface for compact camera systems.
Q: Why are M12 fisheye lenses commonly used in embedded vision systems?
A: M12 fisheye lenses offer a compact size, lightweight structure and ultra-wide viewing capability, making them suitable for space-limited cameras and intelligent vision devices.
Q: Does this fisheye lens support low-light imaging applications?
A: The F2.0 aperture design provides good light transmission performance, helping cameras achieve stable imaging in various lighting environments.
Q: Can TOWIN customize M12 fisheye lenses for specific applications?
A: Yes. TOWIN provides OEM and ODM customization services, including optical design optimization, mechanical adjustments and customized fisheye lens solutions.
Q: Does TOWIN support mass production of customized fisheye lenses?
A: Yes. TOWIN supports customized optical development and mass production with professional manufacturing processes and strict quality control systems.
