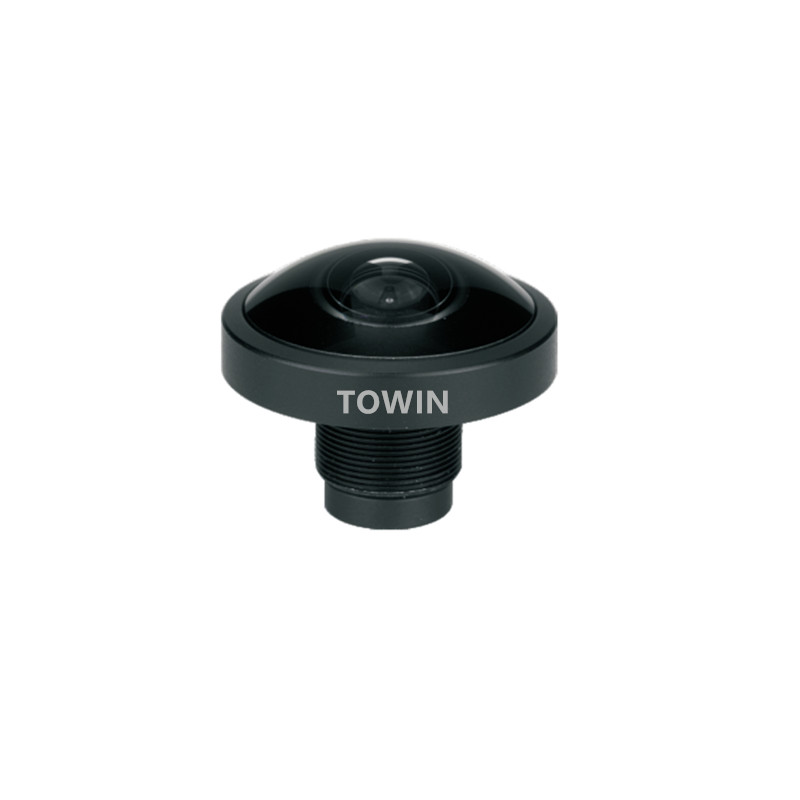

Fisheye Lens – S00903423020F
0.09mm M12 fisheye lens supports 8MP imaging with 230° ultra-wide FOV for panoramic, immersive and advanced vision applications.
S00903423020F is a M12 mount fisheye lens. The image circle is Φ3.4, designed for 1/3.2″ sensors, such as IMX179, 8 megapixel, to get 230 degree. It is very low F-theta distortion <3%.
| IMAGE FORMAT | Φ3.4 |
| FOCAL LENGTH | 0.09mm |
| F.O.V. (1/3.2″ IMX179) | 230° |
| 230° | |
| 230° | |
| RESOLUTION | 8 MP |
| F-Theta | <3% |
| APERTURE | F2.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 23.6mm |
| STRUCTURE | 7G+IRCF |
Product Description
The 0.09mm M12 fisheye lens is an ultra-wide-angle optical solution designed for advanced panoramic and immersive imaging systems. Optimized for the 1/3.2″ IMX179 sensor, this lens provides an exceptional 230° field of view, enabling cameras to capture an extremely broad scene with a single compact optical module.
Supporting 8MP resolution and F-Theta distortion below 3%, the lens combines high-resolution imaging with optimized geometric performance for demanding wide-angle applications. The F2.0 fixed aperture provides stable light transmission, while the 0.1m minimum object distance supports close-range panoramic imaging.
Featuring a compact M12x0.5 mount, 23.6mm total track length and 7G+IRCF optical structure, this fisheye lens is suitable for panoramic cameras, immersive imaging, smart security, robotics vision and other applications requiring an exceptionally wide field of view.
Key Features
230° Ultra-Wide Field of View
The lens provides an exceptional 230° field of view, allowing cameras to capture an extremely broad surrounding scene and minimize blind areas.
8MP High-Resolution Imaging
Supporting 8MP resolution, the lens provides detailed image capture for advanced panoramic, immersive and intelligent vision applications.
Optimized for IMX179 Sensor
The optical design is specified for the 1/3.2″ IMX179 sensor, providing a dedicated solution for compatible high-resolution camera modules.
<3% F-Theta Distortion
With F-Theta distortion below 3%, the lens provides optimized geometric performance for ultra-wide-angle imaging and applications requiring more controlled image deformation.
F2.0 Fixed Aperture
The F2.0 aperture provides stable light transmission and consistent imaging performance across different wide-angle imaging environments.
7G+IRCF Optical Structure
The 7G+IRCF construction combines multiple optical elements with an IR cut filter component to support stable image quality and reliable optical performance.
Compact M12x0.5 Mount
The M12x0.5 interface enables straightforward integration into compact camera modules and embedded vision systems.
Fisheye Lens Applications
Panoramic Security Cameras
This ultra-wide M12 fisheye lens is suitable for panoramic security systems requiring maximum scene coverage and significantly reduced blind spots.
Immersive and Panoramic Imaging
The 230° field of view makes the lens suitable for immersive imaging systems and applications requiring extremely broad environmental capture.
Smart Security and AI Vision
The 8MP resolution and ultra-wide coverage provide extensive image information for intelligent security monitoring and computer vision applications.
Robotics and Autonomous Vision
The extremely wide viewing angle can help robotic systems capture more surrounding visual information for environmental perception and navigation.
Embedded Vision Systems
The compact M12x0.5 mount makes the lens suitable for embedded cameras and intelligent imaging devices where space and field of view are important design considerations.
Why Choose TOWIN as Your Fisheye Lens Manufacturer?
TOWIN provides professional optical solutions for M12 lenses, fisheye lenses and customized ultra-wide-angle imaging systems. With optical design expertise, precision manufacturing capability and experience in high-resolution compact optics, TOWIN supports customers from optical development through mass production.
| TOWIN Capability | Customer Benefits |
|---|---|
| Advanced optical design expertise | Optimized solutions for ultra-wide-angle imaging requirements |
| High-resolution lens development | Support for demanding 8MP and advanced imaging applications |
| M12 lens development experience | Compact optical solutions for embedded camera systems |
| Fisheye lens design capability | Solutions for panoramic and immersive imaging |
| OEM and ODM customization support | Flexible optical and mechanical customization |
| Precision manufacturing and quality control | Stable optical performance and consistent product quality |
Frequently Asked Questions
Q: What applications is the 0.09mm M12 fisheye lens suitable for?
A: The 0.09mm M12 fisheye lens is suitable for panoramic security cameras, immersive imaging, smart security, robotics vision and embedded systems requiring an extremely wide field of view.
Q: What is the field of view of this M12 fisheye lens?
A: The lens provides a 230° field of view when paired with the specified 1/3.2″ IMX179 sensor, enabling extremely broad scene coverage.
Q: What sensor is this lens designed for?
A: The lens is specifically specified for the 1/3.2″ IMX179 sensor, making it suitable for compatible 8MP camera modules.
Q: What resolution does this fisheye lens support?
A: The lens supports 8MP resolution, providing detailed image capture for high-resolution panoramic and ultra-wide-angle imaging applications.
Q: What is the advantage of <3% F-Theta distortion?
A: F-Theta distortion below 3% provides more controlled geometric performance for ultra-wide-angle imaging, which can improve image usability in panoramic and computer vision applications.
Q: What is the minimum object distance of this lens?
A: The minimum object distance is 0.1m, allowing the lens to capture relatively close scenes while maintaining its extremely wide field of view.
Q: Can TOWIN customize ultra-wide M12 fisheye lenses?
A: Yes. TOWIN provides OEM and ODM customization services, including optical optimization, sensor matching, mechanical adjustments and customized fisheye lens solutions.
Q: Does TOWIN support mass production of high-resolution fisheye lenses?
A: Yes. TOWIN supports customized optical development and mass production with professional manufacturing processes and strict quality control systems.
