Fisheye Lens – S01412420020F69

S01412420020F69 is Fisheye M12-mount F2.0 CCTV Lens with Built-In IR Filter, 3-Megapixel IP69K Waterproof, for Surveillance or Industrial Applications.

1.4mm M12 Fisheye Automotive Lens

This 1.4mm M12 fisheye automotive lens delivers an ultra-wide 200° field of view for compact vehicle camera systems that require maximum scene coverage. With 3MP resolution, F2.0 aperture, M12 × 0.5 mounting, and IP69K waterproof protection, it is designed for demanding automotive imaging environments such as surround-view, parking assistance, and vehicle monitoring.

Fisheye Lens Highlights

• 200° Ultra-Wide FOV — Captures an exceptionally broad scene with a single compact camera.
• 1.4mm Fisheye Design — Provides expansive coverage for surround-view and vehicle monitoring systems.
• 3MP Resolution — Matches compact automotive imaging modules using the 1/2.42″ ISX031 sensor.
• IP69K Protection — Built for demanding automotive environments exposed to water, dust, and high-pressure cleaning.
• Compact M12 × 0.5 Mount — Simplifies integration into space-constrained vehicle camera modules.

1.4mm M12 200° Fisheye Lens Applications

Core Application Scenes

This 1.4mm M12 fisheye automotive lens is designed for vehicle camera systems where extremely wide coverage is more important than conventional rectilinear imaging. Its 200° field of view allows a compact camera module to capture a broad area around the vehicle, making it suitable for systems that need to minimize blind zones.

In automotive surround-view systems, the lens can be installed on front, rear, side, or corner camera modules to provide wide-area visual coverage for parking and low-speed maneuvering. The fisheye optical design is particularly useful where the camera must observe a large area from a limited installation position.

For parking assistance cameras, the 1.4mm focal length and 200° field of view can help capture nearby obstacles, parking spaces, curbs, and surrounding vehicles. This makes the lens suitable for compact camera modules integrated into vehicle bumpers, mirrors, grilles, tailgates, or other constrained mounting locations.

The lens can also support commercial vehicle and fleet monitoring applications, where wide-area imaging is useful for monitoring vehicle surroundings. Its IP69K protection makes it suitable for exposed camera locations that may encounter road spray, dust, rain, washing procedures, and other harsh environmental conditions.

For broader automotive vision development, this lens can be integrated into TOWIN ADAS Solutions, particularly when an application requires a compact wide-angle imaging module rather than a long-range narrow-FOV camera.

Designed for automotive surround-view, parking assistance, wide-area vehicle monitoring, and compact fisheye camera applications.

Compatible Device List

• Automotive Camera Modules: Suitable for compact M12-based camera assemblies using a 1/2.42″ ISX031 sensor.
• Surround-View Cameras: Applicable to front, rear, side, and corner-view camera positions where broad coverage is required.
• Parking Assistance Systems: Suitable for cameras mounted around bumpers, grilles, tailgates, and other vehicle areas with limited installation space.
• Commercial Vehicle Cameras: Can be used in trucks, vans, buses, and other vehicles requiring wide-area exterior monitoring.
• Vehicle Monitoring Devices: Supports compact camera modules designed to observe large areas around a vehicle.
• Harsh-Environment Camera Modules: IP69K protection makes the lens suitable for exposed automotive camera locations subject to water, dust, and high-pressure cleaning.

Optical & System Integration Considerations

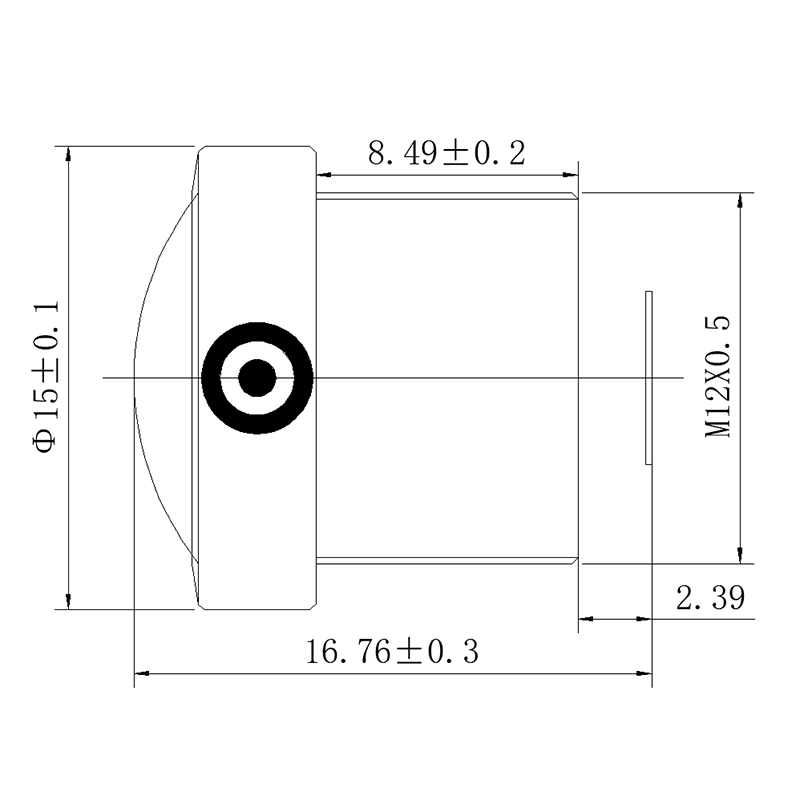

The M12 × 0.5 mount provides a compact mechanical interface for embedded camera designs, while the 16.76mm T.T.L. helps engineers evaluate mechanical clearance during camera module development.

With a maximum image format of Φ5.6mm and a specified 1/2.42″ ISX031 sensor, the lens should be evaluated together with the target image sensor, image circle, mechanical housing, and required field of view during system integration.

Because the lens provides a 200° ultra-wide field of view with strong fisheye distortion, it is intended for applications where very broad coverage is a primary requirement. System designers should consider the required image correction or dewarping method when integrating the lens into an automotive vision platform.

For engineers selecting an appropriate sensor and optical configuration, the TOWIN Sensor Guide provides useful background for evaluating sensor and lens compatibility.

When field coverage needs to be calculated before selecting a lens, the FOV Calculator can also be used as part of the optical selection process.

Related Lens & Solution Resources

For applications requiring compact threaded camera optics, see the complete M12 Lenses collection; For automotive vision system development, the ADAS solution page provides additional information about lens applications in advanced vehicle vision systems.

For projects involving wide-angle optical selection, the Lens Selection Guide can help engineers evaluate focal length, sensor format, field of view, and application requirements.

If you require a customized optical configuration, mechanical modification, or lens solution for a specific automotive camera module, contact the TOWIN optical engineering team through Contact TOWIN.

Frequently Asked Questions

Q: What type of lens is this 1.4mm M12 lens?
A: It is a fixed-focus M12 fisheye automotive lens with a 1.4mm focal length and an ultra-wide 200° field of view.

Q: What sensor is this lens designed for?
A: The specified field of view is based on the 1/2.42″ ISX031 image sensor. Engineers should confirm the actual sensor active area and image circle requirements before final integration.

Q: What is the field of view of this fisheye lens?
A: The specified FOV is 200° diagonal, 200° horizontal, and 169° vertical when used with the 1/2.42″ ISX031 sensor.

Q: Is this lens suitable for automotive surround-view cameras?
A: Yes. Its 1.4mm focal length and 200° ultra-wide FOV make it suitable for compact surround-view camera modules where broad vehicle-area coverage is required.

Q: Can this lens be used for parking assistance cameras?
A: Yes. The wide field of view is useful for capturing nearby parking areas, obstacles, curbs, and surrounding vehicles from compact camera positions.

Q: Is the lens waterproof?
A: Yes. The lens is specified with an IP69K waterproof rating, making it suitable for demanding exposed environments where water, dust, and high-pressure cleaning may occur.

Q: What does the M12 × 0.5 mount mean?
A: M12 × 0.5 refers to the lens mounting thread, with a nominal 12mm diameter and 0.5mm thread pitch. It is commonly used for compact embedded camera modules.

Q: Does the lens have fixed or adjustable iris control?
A: The lens uses a fixed F2.0 aperture, providing a constant optical configuration for compact automotive camera applications.
