S03512311228F

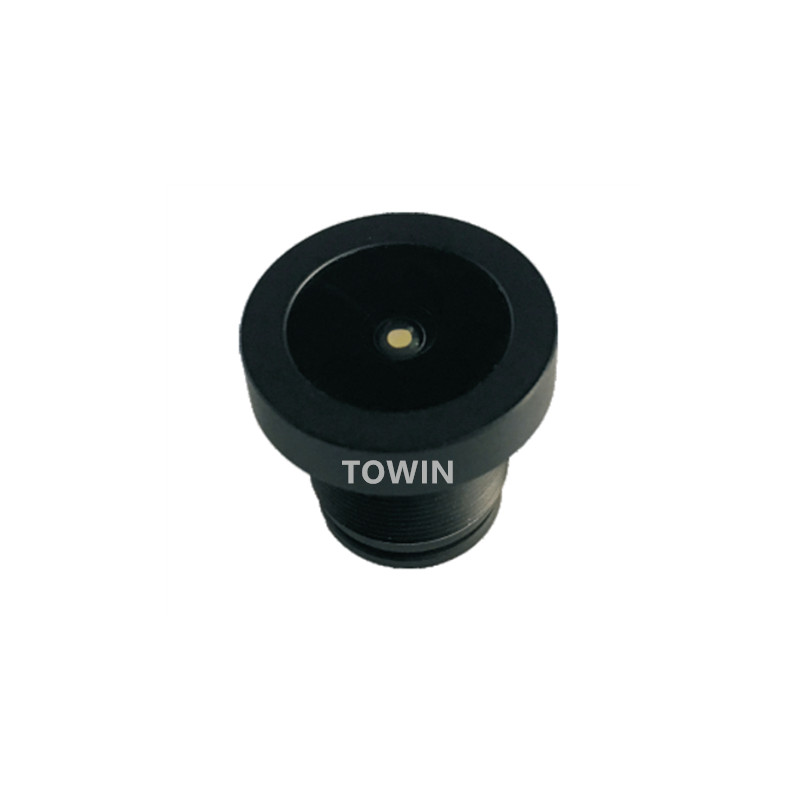

1/2.3″ IMX206, 12 Mega Pixel, 3.5 mm boad lens, Wide Angle H FOV 112° drone UAV lens.
S03512311228F is a drone UAV M12 lens. It is designed for 1/2.3″ sensor IMX206, 12 Mega Pixel. And it is 3.5mm boad lens, with Wide Angle H FOV 112 degree.
| IMAGE FORMAT | 1/2.3″ |
| FOCAL LENGTH | 3.5mm |
| F.O.V. (IMX206) | 168°(D) |
| 112°(H) | |
| 79°(V) | |
| RESOLUTION | 12 MP |
| DISTORTION | <90% |
| APERTURE | F2.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 18.79mm |
| STRUCTURE | 6G+IRCF |

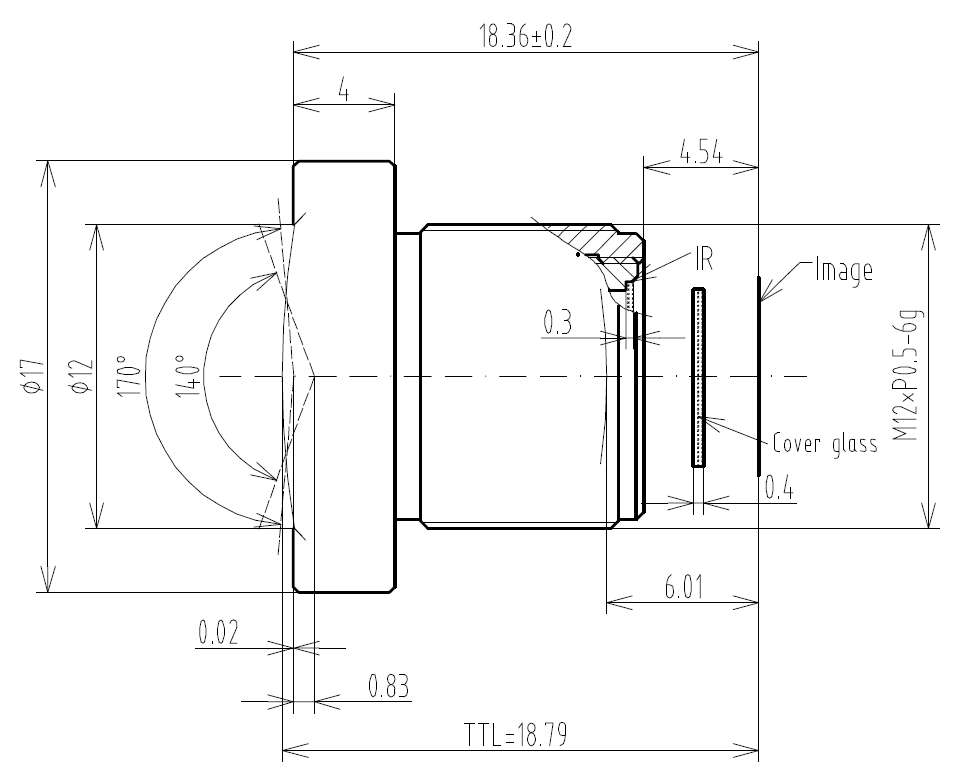

S03512311228F drone UAV lens-1
