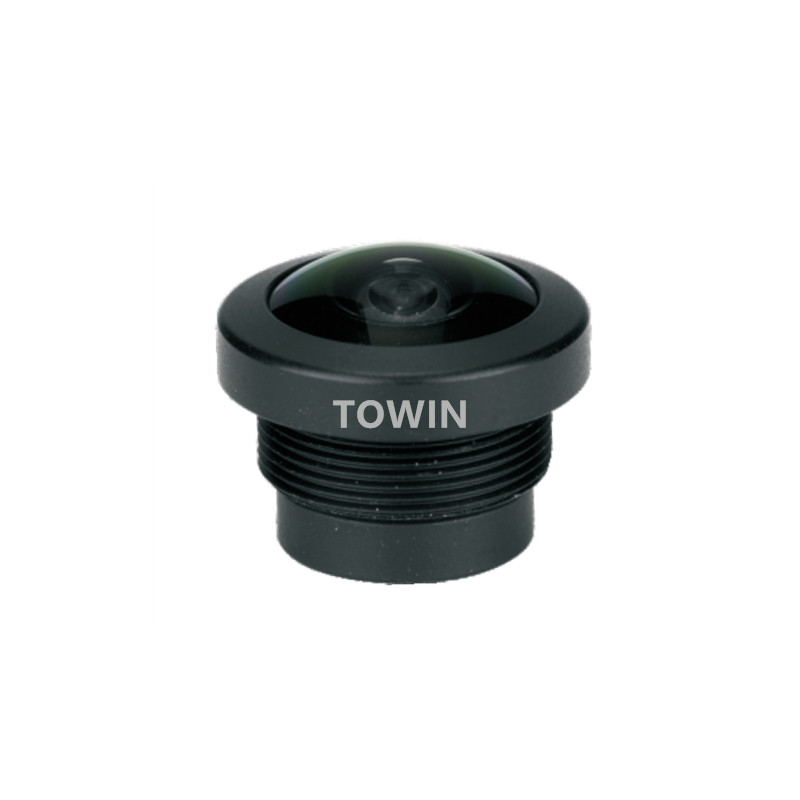

Fisheye Lens – S00903021024F

S00903021024F is a M12 mount fisheye lens.  The image circle is Φ3.0, designed for 1/3.2″ sensors, such as IMX179, 8 megapixel (1/3”, ov4689, AR0330, 1/2.7”, OV2710, AR0230, 1/2.5”, IMX317, 1/2.8”, IMX322, IMX290), to get 210 degree. It is very low F-theta distortion <-4.5%.

Product Description

The 0.09mm M12 fisheye lens is designed for ultra-wide-angle imaging systems requiring maximum scene coverage, high-resolution performance and compact optical integration. Designed for the 1/3.2″ IMX179 sensor, this lens provides an exceptional 210° field of view, enabling cameras to capture an extremely broad scene from a compact optical module.

Supporting 8MP resolution and F-Theta distortion below -4.5%, the lens combines high-resolution imaging with controlled geometric performance for advanced panoramic and computer vision applications. The F2.4 fixed aperture provides stable optical performance, while the 0.1m minimum object distance supports close-range ultra-wide imaging.

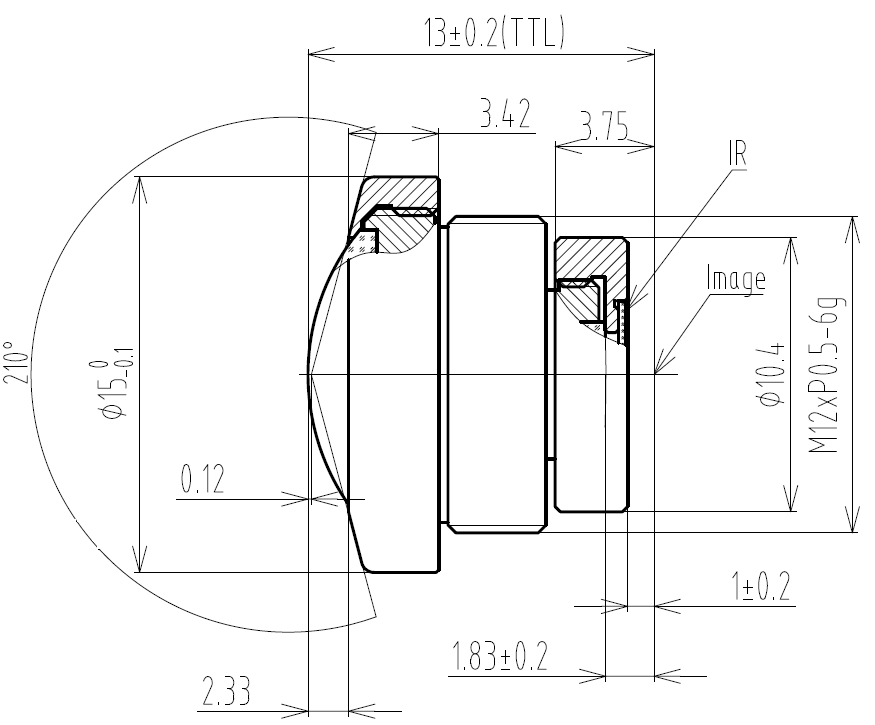

Featuring an M12x0.5 mount, 13mm total track length and 6G+IRCF optical structure, this compact fisheye lens is suitable for panoramic cameras, smart security systems, embedded vision devices and other applications requiring an exceptionally wide field of view.

M12 Fisheye Lens Key Features

210° Ultra-Wide Field of View

The lens provides an exceptional 210° field of view, enabling cameras to capture an extremely broad scene and significantly reduce blind areas in panoramic imaging applications.

8MP High-Resolution Imaging

Supporting 8MP resolution, the lens provides detailed image capture for advanced security, panoramic imaging and intelligent vision systems.

Designed for IMX179 Sensor

The lens is specified for use with the 1/3.2″ IMX179 sensor, providing a dedicated optical solution for compact high-resolution camera modules.

Optimized F-Theta Performance

With F-Theta distortion below -4.5%, the lens provides controlled geometric performance for ultra-wide-angle imaging and computer vision applications.

Compact M12x0.5 Mount

The M12x0.5 interface provides a compact mounting solution for embedded cameras and space-constrained imaging systems.

6G+IRCF Optical Structure

The 6G+IRCF construction combines multiple glass elements with an IR cut filter component to support stable optical performance and reliable image quality.

Ultra-Compact Optical Design

With a total track length of only 13mm, the lens is suitable for miniature camera modules where optical space is highly limited.

M12 Fisheye Lens Applications

Panoramic Security Cameras

This 0.09mm M12 fisheye lens is suitable for panoramic surveillance systems requiring exceptionally wide scene coverage and minimal blind spots.

Smart Security and AI Vision

The 210° field of view and 8MP resolution support intelligent security applications requiring broad environmental awareness and detailed image data.

Embedded Vision Systems

The compact M12x0.5 mount and 13mm total track length make this lens suitable for miniature embedded cameras and intelligent imaging devices.

Robotics and Autonomous Vision

The ultra-wide viewing capability can help robotic systems capture extensive environmental information for perception, navigation and situational awareness.

Immersive and Panoramic Imaging

The 210° optical design is suitable for panoramic and immersive imaging systems requiring extremely broad scene capture from a single camera.

Why Choose TOWIN as Your Industrial Lens Manufacturer?

TOWIN provides professional optical solutions for M12 lenses, fisheye lenses and customized ultra-wide-angle imaging systems. With optical design expertise, precision manufacturing capability and experience in compact high-resolution optics, TOWIN supports customers from optical development through mass production.

Frequently Asked Questions

Q: What applications is the 0.09mm M12 fisheye lens suitable for?

A: The 0.09mm M12 fisheye lens is suitable for panoramic security cameras, smart security systems, embedded vision devices, robotics and immersive imaging applications requiring an exceptionally wide field of view.

Q: What is the field of view of this M12 fisheye lens?

A: When used with the specified 1/3.2″ IMX179 sensor, the lens provides a 210° field of view according to the supplied specifications.

Q: What resolution does this fisheye lens support?

A: The lens supports 8MP resolution, making it suitable for high-resolution panoramic, security and intelligent vision applications.

Q: What sensor is this lens designed for?

A: This lens is specifically specified for the 1/3.2″ IMX179 sensor, providing a compact optical solution for compatible high-resolution camera modules.

Q: What is the advantage of F-Theta distortion below -4.5%?

A: Controlled F-Theta distortion helps provide more predictable geometric characteristics across the ultra-wide image, which can be beneficial for panoramic imaging and computer vision applications.

Q: What is the minimum object distance of this lens?

A: The minimum object distance is 0.1m, allowing the lens to capture extremely wide scenes even at relatively close distances.

Q: What is the advantage of the 6G+IRCF construction?

A: The 6G+IRCF optical construction combines multiple glass elements with an IR cut filter component to support stable optical performance and image quality.

Q: Can TOWIN customize ultra-wide M12 fisheye lenses?

A: Yes. TOWIN provides OEM and ODM customization services, including optical optimization, mechanical adjustments and customized fisheye lens solutions for specific camera platforms.
