Fisheye Lens – S00803021024F

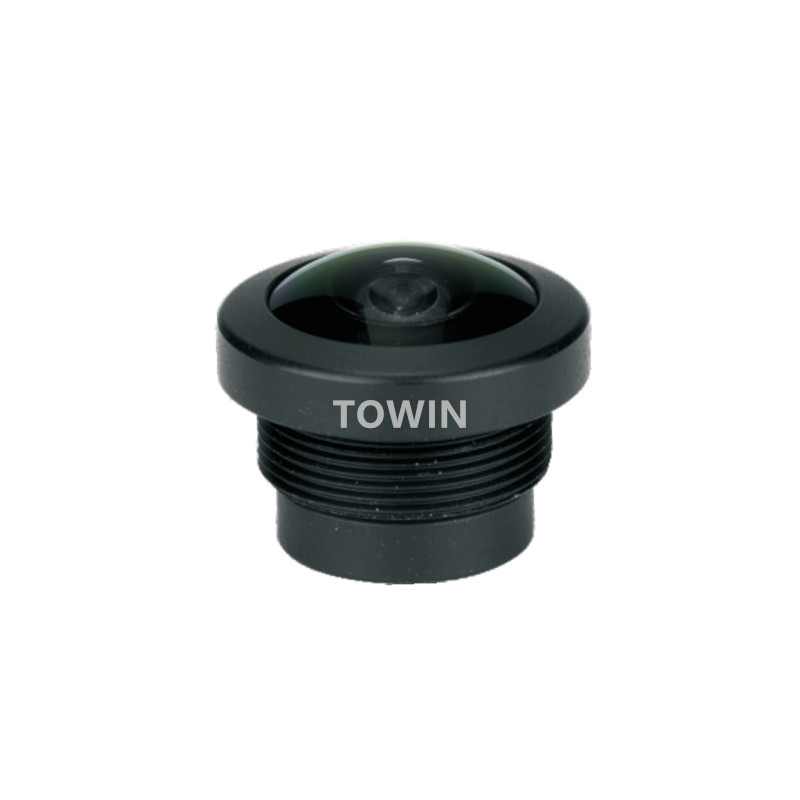

S00803021024F is a M12 mount fisheye lens.  The image circle is Φ3.0, designed for 1/3″ sensors, such as OV4689, 4 megapixel (1/3.2”, IMX179, AR0330, 1/2.7”, OV2710, AR0230, 1/2.5”, IMX317, 1/2.8”, IMX322, IMX290), to get 210 degree. It is very low F-theta distortion <-4.5%.

Product Description

The 0.08mm M12 fisheye lens is designed for advanced imaging systems requiring an exceptionally wide field of view, high-resolution image capture and compact optical integration. Designed for the 1/3″ OV4689 image format, this lens provides a 210° field of view in the supplied specifications, enabling cameras to capture an extremely broad scene from a compact optical module.

Supporting 8MP resolution and F-Theta distortion below -4.5%, the lens provides high-detail imaging with controlled geometric performance for ultra-wide-angle applications. The F2.4 fixed aperture offers stable optical performance, while the 0.1m minimum object distance supports close-range panoramic imaging.

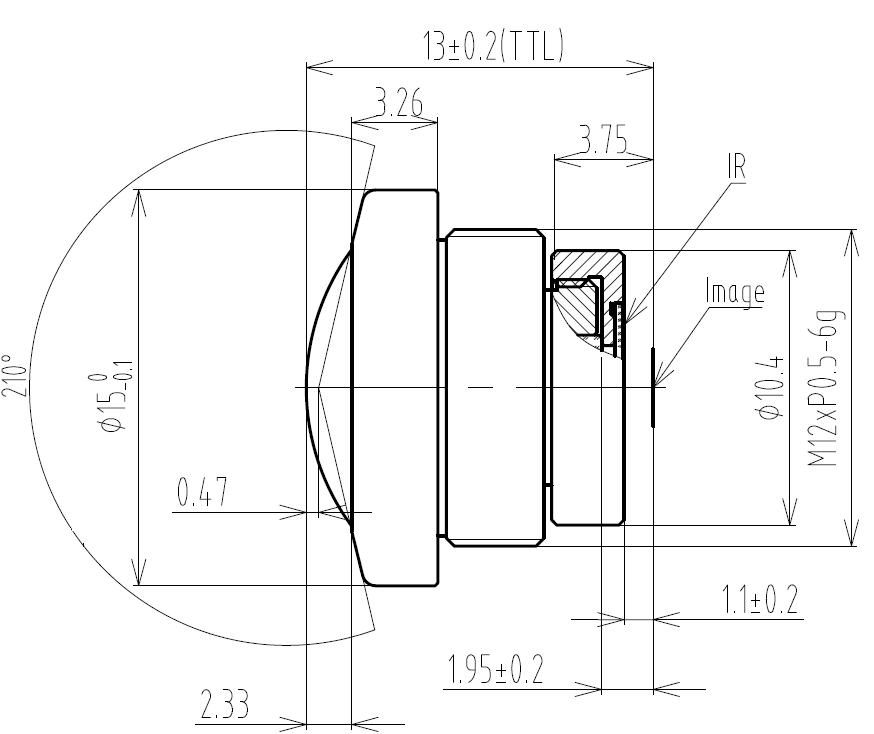

Featuring an M12x0.5 mount, 13mm total track length and 7G+IRCF optical construction, this compact fisheye lens is suitable for panoramic cameras, smart security systems, embedded vision and applications requiring maximum environmental coverage.

M12 Fisheye Lens Key Features

210° Ultra-Wide Field of View

The lens provides an exceptional 210° field of view, enabling cameras to capture an extremely broad scene and minimize blind areas in panoramic and immersive imaging applications.

8MP High-Resolution Imaging

Supporting 8MP resolution, the lens provides detailed image capture for advanced security, panoramic imaging and intelligent vision applications.

Optimized F-Theta Distortion

With F-Theta distortion below -4.5%, the optical design provides controlled geometric performance for ultra-wide-angle imaging applications.

OV4689 Image Format Compatibility

The lens is specified for the 1/3″ OV4689 image format, providing a dedicated optical solution for compatible high-resolution camera modules.

Compact M12x0.5 Mount

The M12x0.5 interface enables integration into compact camera modules and embedded imaging systems where installation space is limited.

7G+IRCF Optical Construction

The 7G+IRCF construction combines multiple glass elements with an IR cut filter component to support stable optical performance and reliable image quality.

Compact Optical Structure

With a 13mm total track length, the lens is suitable for applications requiring a highly compact fisheye optical solution.

M12 Fisheye Lens Applications

Panoramic Security Cameras

This M12 fisheye lens is suitable for panoramic surveillance systems requiring extremely wide scene coverage and reduced monitoring blind spots.

Smart Security and AI Vision

The 210° field of view and 8MP resolution support intelligent security applications requiring broad environmental awareness and detailed image data.

Embedded Vision Systems

The compact M12x0.5 mount and short optical structure make this lens suitable for embedded cameras and space-constrained imaging devices.

Robotics and Autonomous Vision

The ultra-wide field of view enables robotic and autonomous systems to capture extensive environmental information for perception and monitoring.

Panoramic and Immersive Imaging

The extreme wide-angle design is suitable for panoramic imaging systems and applications requiring maximum scene coverage from a single camera.

Why Choose TOWIN as Your Industrial Lens Manufacturer?

TOWIN provides professional optical solutions for M12 lenses, fisheye lenses and customized high-resolution imaging systems. With optical design expertise, precision manufacturing capability and experience in compact ultra-wide-angle optics, TOWIN supports customers from optical development through mass production.

Frequently Asked Questions

Q: What applications is this M12 fisheye lens suitable for?

A: This ultra-wide-angle M12 fisheye lens is suitable for panoramic security cameras, smart security systems, embedded vision, robotics and immersive imaging applications requiring extremely broad scene coverage.

Q: What is the field of view of this fisheye lens?

A: According to the supplied specifications, the lens provides a 210° field of view for the 1/3″ OV4689 image format.

Q: What resolution does this M12 fisheye lens support?

A: The lens supports 8MP resolution, making it suitable for high-resolution panoramic, security and intelligent vision applications.

Q: What is the advantage of F-Theta distortion below -4.5%?

A: Controlled F-Theta distortion helps improve geometric consistency in ultra-wide-angle imaging, which can benefit panoramic imaging, computer vision and image-processing applications.

Q: What camera sensor is this lens designed for?

A: The supplied specification identifies the 1/3″ OV4689 image format, making the lens suitable for compatible camera modules using this imaging format.

Q: What is the minimum object distance of this lens?

A: The minimum object distance is 0.1m, allowing the lens to capture relatively close scenes while maintaining its ultra-wide field of view.

Q: What is the advantage of the 7G+IRCF construction?

A: The 7G+IRCF construction combines multiple glass elements with an IR cut filter component to support stable optical performance and consistent image quality.

Q: Can TOWIN customize ultra-wide M12 fisheye lenses?

A: Yes. TOWIN provides OEM and ODM customization services, including optical optimization, mechanical adjustments and customized fisheye lens solutions for specific camera platforms.
