CCTV Lens – S08012004718F
8mm M12 CCTV lens supports 1/2″ sensors, 3MP resolution and 47° H.F.O.V. with F1.8 aperture for security and industrial imaging applications.

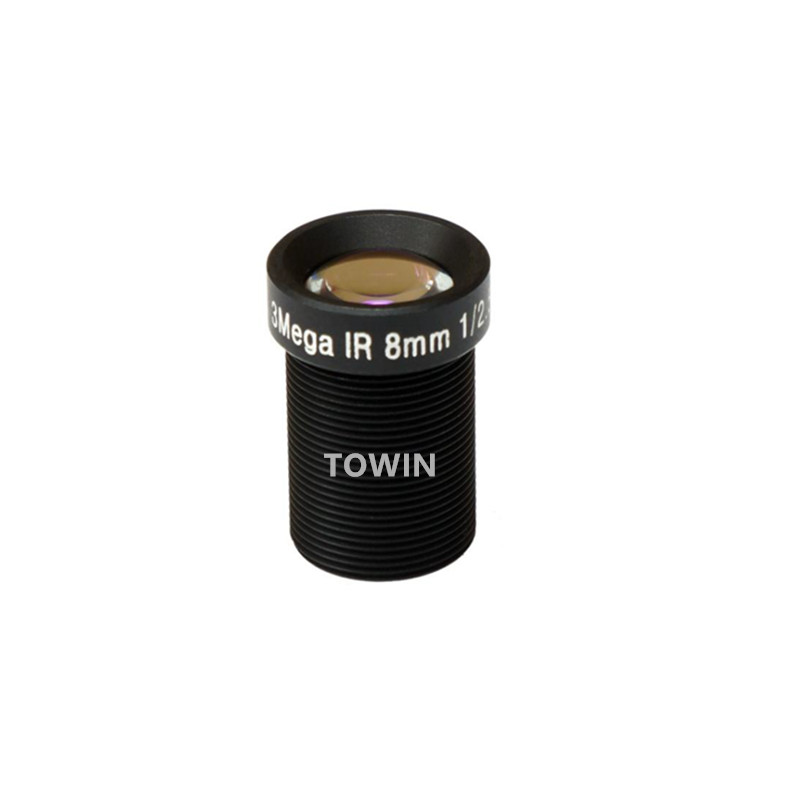

S08012004718F is a 8mm M12 mount CCTV lens. It is for 1/2″, 1/1.8″ sensors such as Aptina MT9M001, MT9T001,SONY IMX178, IMX265. And it is a 3 megapixel HD lens with F1.8 for IP camera.
| IMAGE FORMAT | 1/2“ |
| FOCAL LENGTH | 8mm |
| H.F.O.V. | 47° |
| RESOLUTION | 3 MP |
| DISTORTION | <-9% |
| APERTURE | F1.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 23.1mm |
| STRUCTURE | 5G+IRCF |
Product Description
The 8mm M12 CCTV lens is designed for compact camera systems requiring a balanced field of view, reliable image quality and flexible optical integration. Supporting 1/2″ image formats and 3MP resolution, this lens provides a 47° horizontal field of view, making it suitable for applications requiring moderate scene coverage with greater image detail than ultra-wide-angle lenses.
Featuring an F1.8 aperture, the lens provides good light-gathering capability for stable imaging under different lighting conditions. The fixed aperture and M12x0.5 mount simplify integration into compact camera modules, while the 0.1m minimum object distance supports close-range imaging.
With a 23.1mm total track length and 5G+IRCF optical structure, this lens offers a compact and reliable optical solution for security cameras, embedded vision systems, industrial monitoring and intelligent imaging applications.
Key Features
47° Horizontal Field of View
The 8mm focal length provides a 47° horizontal field of view, offering a balanced combination of scene coverage and image detail for medium-range imaging applications.
3MP Resolution Performance
Supporting 3MP resolution, the lens provides clear and reliable image output for security, industrial and embedded vision systems.
1/2″ Sensor Compatibility
Designed for 1/2″ image formats, the lens provides suitable sensor coverage for compatible compact camera systems.
F1.8 Large Aperture
The F1.8 aperture provides good light-gathering capability, helping maintain brighter and clearer images in indoor and changing lighting conditions.
Compact M12x0.5 Mount
The M12x0.5 interface provides a compact mounting solution for embedded cameras and space-constrained imaging systems.
Close-Range Imaging Capability
With a minimum object distance of 0.1m, the lens supports close-range monitoring and imaging applications.
5G+IRCF Optical Structure
The 5G+IRCF construction combines five optical glass elements with an infrared-cut filter component to support stable image quality and reliable optical performance.
M12 CCTV Lens Applications
Security Surveillance Cameras
This 8mm M12 CCTV lens is suitable for security cameras requiring a moderate field of view and detailed image capture for targeted monitoring.
Industrial Monitoring
The lens can be integrated into industrial camera systems for equipment observation, process monitoring and general visual inspection.
Embedded Vision Systems
The compact M12x0.5 mount makes this lens suitable for embedded cameras, intelligent devices and space-limited imaging modules.
Robotics Vision
The balanced field of view supports robotic vision applications requiring focused environmental observation and object detection.
Smart Security Systems
The combination of 3MP resolution, F1.8 aperture and moderate field of view makes the lens suitable for intelligent monitoring and security applications.
Why Choose TOWIN as Your M12 CCTV Lens Manufacturer?
TOWIN provides professional optical solutions for M12 lenses, compact industrial lenses and customized imaging systems. With optical design expertise, precision manufacturing capability and experience in compact optical development, TOWIN supports customers from optical development through mass production.
| TOWIN Capability | Customer Benefits |
|---|---|
| Professional optical design expertise | Optimized lens solutions for security and industrial imaging |
| M12 lens development experience | Compact optical solutions for embedded camera systems |
| Infrared optical technology | Improved compatibility with imaging systems using IR-cut filters |
| OEM and ODM customization support | Flexible optical and mechanical customization |
| Precision manufacturing capability | Stable optical performance and consistent product quality |
| Strict quality control process | Reliable lenses for long-term imaging applications |
Frequently Asked Questions
Q: What applications is the 8mm M12 lens suitable for?
A: The 8mm M12 lens is suitable for security surveillance, industrial monitoring, embedded vision, robotics and intelligent imaging applications requiring a moderate field of view and detailed image capture.
Q: What is the field of view of this 8mm M12 lens?
A: The lens provides a 47° horizontal field of view, making it suitable for applications requiring more focused coverage than wide-angle M12 lenses.
Q: What sensor size is compatible with this M12 lens?
A: This lens supports 1/2″ image formats and uses an M12x0.5 mount interface for compatible compact camera systems.
Q: What is the advantage of the F1.8 aperture?
A: The F1.8 aperture provides good light-gathering capability, helping cameras achieve brighter and clearer images in indoor and variable lighting environments.
Q: What is the minimum object distance of this lens?
A: The minimum object distance is 0.1m, allowing the lens to support relatively close-range imaging and monitoring applications.
Q: What is the advantage of the 5G+IRCF optical structure?
A: The 5G+IRCF structure combines five optical elements with an infrared-cut filter component to support stable optical performance and reliable image quality.
Q: Can TOWIN customize 8mm M12 lenses for specific projects?
A: Yes. TOWIN provides OEM and ODM customization services, including optical optimization, mechanical adjustments and customized M12 lens solutions for different camera systems.
Q: Does TOWIN support mass production of M12 lenses?
A: Yes. TOWIN supports customized optical development and mass production with professional manufacturing processes and strict quality control systems.
