Fisheye Lens – CCL14014MP

CCL14014MP is Fisheye CCTV Lens 1/4″ M12 5-Megapixel F2.0 Aperture Fixed Focus Manual Lens with <3.7% Distortion for Security Surveillance.

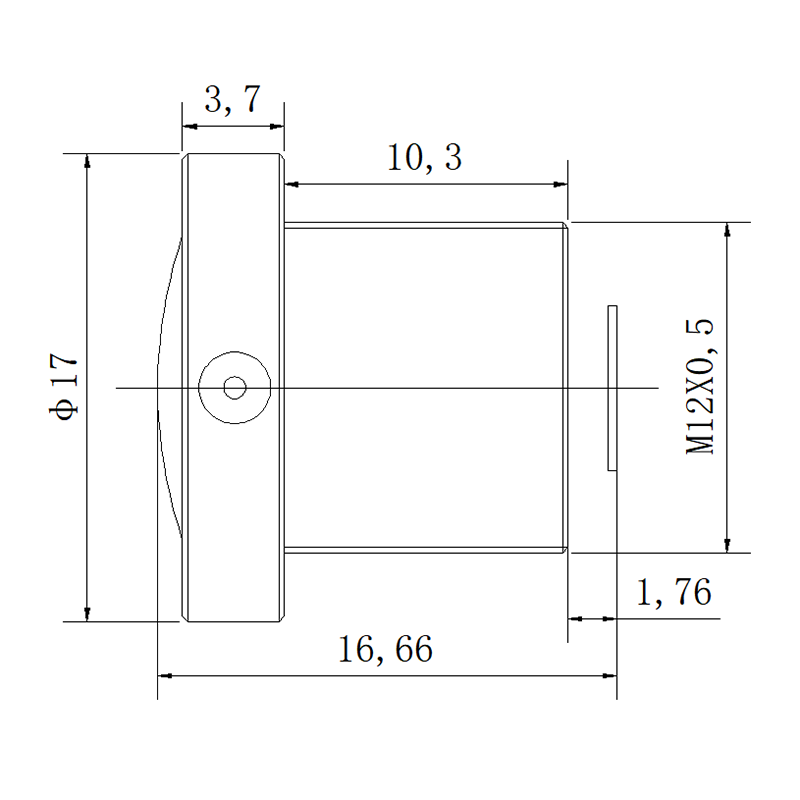

1.4mm M12 5MP 172° Fisheye Lens

This 1.4mm M12 fisheye lens delivers an ultra-wide 172° diagonal FOV with 138° horizontal and 106° vertical coverage on a 1/4″ sensor. Designed with a compact M12 × 0.5 mount, 5MP resolution, F2.0 aperture, and fixed 1.4mm focal length, it is suitable for wide-area imaging where maximum scene coverage is more important than conventional rectilinear projection.

The lens is well suited for compact vision modules, smart security cameras, robotics perception, panoramic scene capture, and other embedded imaging systems requiring an extremely wide viewing angle.

M12 Fisheye Lens Core Highlights

• 172° ultra-wide diagonal FOV captures an exceptionally large scene area
• 1.4mm fisheye focal length provides extreme wide-angle coverage on a 1/4″ sensor
• 5MP resolution supports detailed imaging for compact vision and monitoring systems
• F2.0 fixed aperture provides a practical balance between light transmission and compact optical design
• M12 × 0.5 mount enables easy integration into compact embedded camera modules
• Manual focus with fixed zoom allows optical adjustment during camera integration

1.4mm M12 172° Fisheye Lens Applications

Core Application Scenes

Ultra-Wide-Angle Vision

The 172° diagonal FOV makes this lens suitable for applications where a conventional narrow-FOV lens cannot capture the required scene. Its 1.4mm focal length allows a single compact camera module to cover a very large viewing area.

Smart Security and Surveillance

The extreme field of view can reduce blind spots in compact security cameras and embedded monitoring devices. It is suitable for applications requiring broad scene awareness from a single camera position.

Robotics and Surrounding-Environment Perception

A fisheye lens can provide broad environmental information for compact robotic systems. The 138° horizontal FOV can help capture objects and environmental features across a large angular range.

Panoramic and Wide-Area Imaging

The 172° diagonal coverage makes the lens suitable for wide-area scene capture, panoramic imaging modules, and compact cameras that need to maximize the visible environment.

Embedded Vision Modules

The M12 × 0.5 mount and compact 4G2P optical construction make the lens suitable for OEM camera modules where optical size and wide scene coverage are important design considerations.

Designed for ultra-wide-angle embedded vision, smart security, robotics perception, and wide-area imaging applications.

Compatible Device List

• M12 camera modules — M12 × 0.5 mounting supports compact embedded camera designs.
• Smart security cameras — The 172° diagonal FOV helps maximize scene coverage.
• Robotic vision modules — Suitable for broad environmental perception and object awareness.
• Panoramic imaging devices — The extreme FOV supports wide-area scene capture.
• Compact monitoring cameras — Suitable where reducing blind spots is a primary optical requirement.
• Embedded vision systems — Compact M12 construction enables integration into small camera housings.

For applications using M12 optical modules, TOWIN’s M12 Lens solutions provide additional information about compact M12 imaging systems. You can also explore the M12 Lens product range for other focal lengths and optical configurations.

For security-oriented applications, the Smart Security solution provides a broader reference for integrating wide-angle imaging into intelligent camera systems. For robotics, see Robotics Vision.

Frequently Asked Questions

Q: What is the field of view of this 1.4mm M12 fisheye lens?
A: The lens provides 172° diagonal FOV, 138° horizontal FOV, and 106° vertical FOV on a 1/4″ sensor.

Q: Is this lens a fisheye lens?
A: Yes. The combination of a 1.4mm focal length and 172° diagonal FOV is characteristic of an ultra-wide fisheye optical design.

Q: What sensor format does this M12 fisheye lens support?
A: The specified image format is 1/4″. The stated FOV values are based on this sensor format.

Q: What is the resolution of this fisheye lens?
A: The lens is specified for 5MP resolution, making it suitable for compact high-resolution wide-angle imaging systems.

Q: What does the F-θ distortion specification mean?
A: F-θ distortion describes the deviation of the lens’s image mapping from an ideal angular relationship. It is particularly relevant to wide-angle and fisheye optical designs and should not be directly compared with conventional TV distortion specifications.

Q: Is this a low distortion lens?
A: No. It should not be classified as a conventional low-distortion lens. Its optical design prioritizes an extremely wide 172° FOV rather than minimizing conventional image distortion.

Q: Can this lens be used for smart security cameras?
A: Yes. Its 172° diagonal FOV and 138° horizontal FOV make it suitable for applications requiring broad scene coverage and reduced blind areas.

Q: Does this lens have a zoom function?
A: No. The lens uses a fixed 1.4mm focal length and fixed zoom configuration. Focus is manually adjustable during installation.
