Fisheye Lens – S4820025F69 – IMX415

S4820025F69 – IMX415 is 8-Megapixel fisheye CCTV lens with Built-In IR Filter, M12 mount, IP69K waterproof rating, F2.5 200° F.O.V. for security surveillance.

M12 1.4mm 8MP 200° IP69K Fisheye Lens

This 1.4mm M12 fisheye lens is designed for the 1/2.8″ Sony IMX415 sensor, delivering 200° ultra-wide coverage, 8MP resolution, F2.5 aperture, and IP69K protection for compact automotive, outdoor, panoramic, and wide-area imaging systems.

Product Core Highlights

• 200° Ultra-Wide FOV — Provides exceptionally broad scene coverage with 200° diagonal and horizontal viewing angles.
• 8MP IMX415 Compatibility — Designed around the Sony IMX415 1/2.8″ sensor for high-resolution wide-area imaging.
• 1.4mm Focal Length — Delivers extreme fisheye coverage from a compact M12 camera interface.
• IP69K Protection — Provides a high level of protection against dust, water ingress, and high-pressure/high-temperature washdown conditions when integrated into a properly sealed camera assembly.
• F2.5 Fixed Aperture — Provides a stable optical configuration for continuous wide-angle imaging.

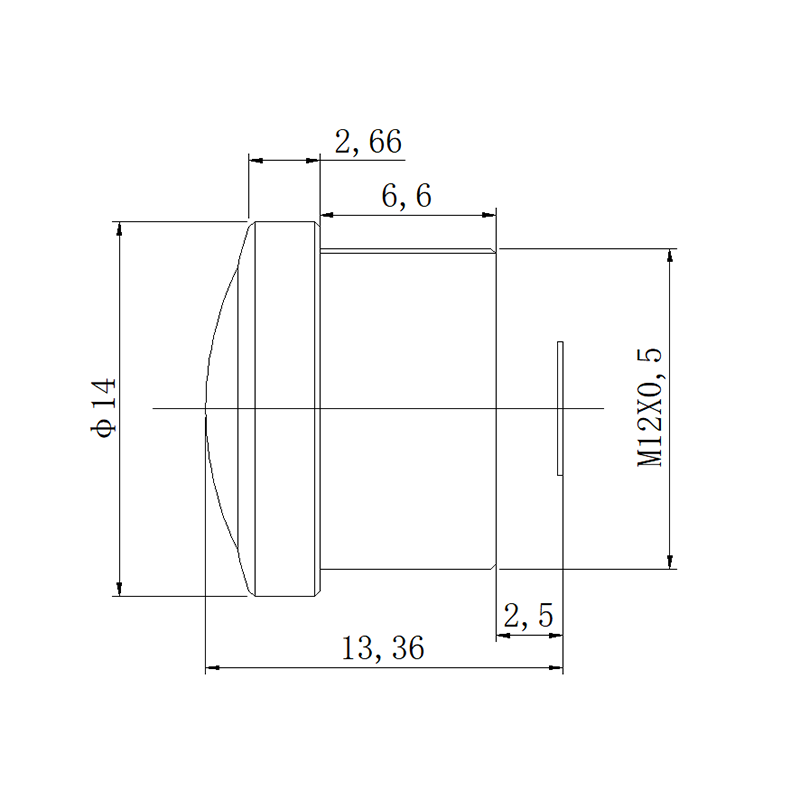

• Compact 13.36mm TTL — Supports integration into compact camera modules where both optical coverage and mechanical space are important.

M12 1.4mm Fisheye Lens Applications

Core Application Scenes

The combination of an IMX415 8MP sensor, 200° FOV, 1.4mm focal length, 0.2m M.O.D., and IP69K protection gives this lens a distinct position among ultra-wide M12 optics. It is particularly suitable for systems that require high-resolution scene coverage in exposed or demanding environments.

• Automotive Surround-View Imaging — The 200° horizontal and diagonal FOV can capture a very broad area around a vehicle-mounted camera, making the lens suitable for selected surround-view, blind-area monitoring, and close-range vehicle perception designs.
• Vehicle-Mounted Outdoor Cameras — IP69K protection makes the lens suitable for camera systems exposed to water spray, dust, washing processes, and demanding outdoor conditions when the complete camera housing is engineered accordingly.
• Heavy-Duty Vehicle Monitoring — The compact M12 format and environmental protection can support camera modules used on commercial vehicles, utility vehicles, construction equipment, and other outdoor platforms.
• High-Resolution Panoramic Imaging — The 8MP IMX415 configuration provides substantially more image detail than lower-resolution fisheye systems, supporting panoramic capture and software-based image correction.
• Outdoor Security & Area Monitoring — The 200° FOV enables broad coverage from a compact camera position, reducing blind areas in appropriate monitoring layouts.
• Robotics & Mobile Platforms — The ultra-wide perspective can provide broad environmental information for autonomous platforms operating in indoor or outdoor environments.
• Industrial Washdown Environments — The IP69K‑rated lens suits camera systems subject to frequent high‑pressure cleaning or water exposure, on condition the full camera assembly retains required protection.

For vehicle-mounted and environmentally protected applications, the Waterproof Automotive Lens range provides additional IP-rated optical options.

For compact M12 camera development, the M12 Lenses category provides additional focal lengths, sensor formats, and optical configurations.

Because this lens uses an extreme fisheye projection, engineers should evaluate image geometry and required correction before selecting it for measurement or precision inspection. The Distortion Guide explains the key differences between fisheye and conventional low-distortion imaging.

Compatible Device List

• Sony IMX415 1/2.8″ camera modules
• 8MP automotive camera modules
• Vehicle-mounted surround-view cameras
• Outdoor panoramic cameras
• Heavy-duty vehicle camera systems
• Commercial vehicle monitoring cameras
• IP-rated security camera modules
• Industrial outdoor monitoring cameras
• Washdown-resistant camera systems
• Robotics vision cameras
• High-resolution embedded vision modules
• M12 fisheye camera modules

Designed for IP-protected automotive, outdoor panoramic, and high-resolution wide-area imaging applications.

Frequently Asked Questions

Q: Which image sensor is this 1.4mm M12 lens designed for?
A: The lens is specified for the Sony IMX415 1/2.8″ sensor, with an image format of Φ4.8 and an 8MP resolution rating.

Q: What is the field of view of this M12 fisheye lens?
A: With the specified IMX415 sensor, the lens provides 200° diagonal, 200° horizontal, and 121° vertical field of view.

Q: Why is the distortion greater than -125%?
A: The very large distortion value is a consequence of the extreme fisheye optical projection. This type of lens prioritizes maximum angular coverage rather than maintaining straight-line geometry like a conventional rectilinear lens.

Q: Is this lens suitable for precision measurement?
A: It is generally intended for wide-area scene capture rather than conventional dimensional measurement. Applications requiring highly accurate geometric reproduction should instead evaluate a suitable low-distortion optical design.

Q: What does the IP69K rating provide?
A: IP69K offers high‑level protection against dust and forceful high‑temperature water jets under standard tests. The full camera assembly also requires proper sealing to achieve identical system‑level environmental protection.

Q: Can this lens be used for automotive cameras?
A: Yes. Its IP69K protection, compact M12x0.5 mount, 200° FOV, and compatibility with the IMX415 make it suitable for selected vehicle-mounted and automotive imaging applications.

Q: What is the advantage of the 8MP IMX415 configuration?
A: The IMX415 provides high-resolution image acquisition, allowing the 200° fisheye view to retain more image information for monitoring, object detection, panoramic processing, and digital dewarping.

Q: Does IRCF mean this lens is IR corrected?
A: No. IRCF refers to an IR cut filter configuration. It should not be confused with an IR-corrected optical design that maintains focus consistency across visible and near-infrared wavelengths.
