Fisheye Lens – S01014019520F

S01014019520F is M12 Fisheye CCTV lens with Built-In IR Filter, 1.3-Megapixel, 200° F2.0, waterproof IP69K for surveillance or industrial applications.

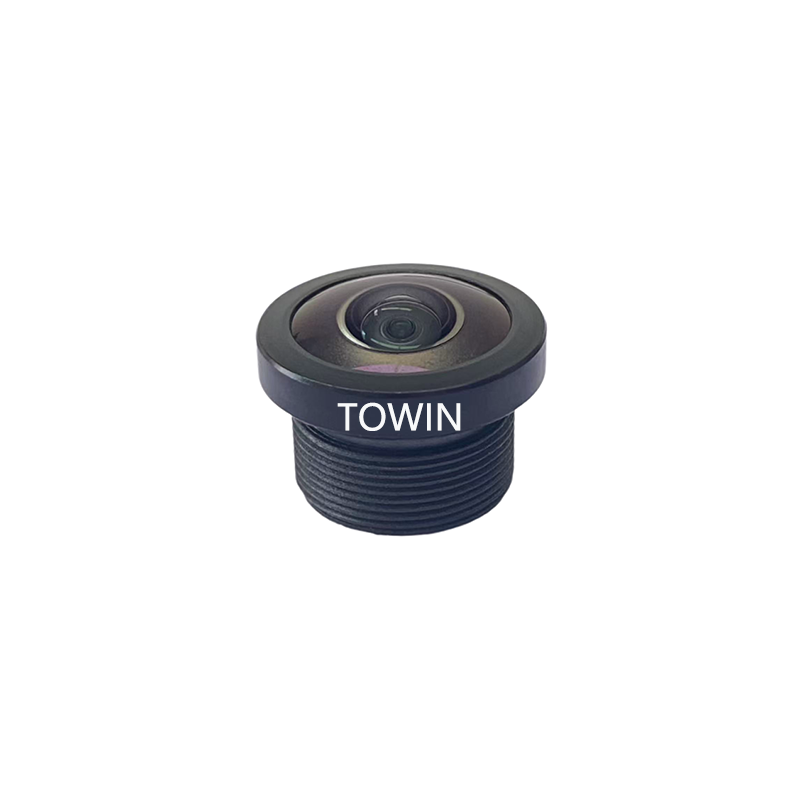

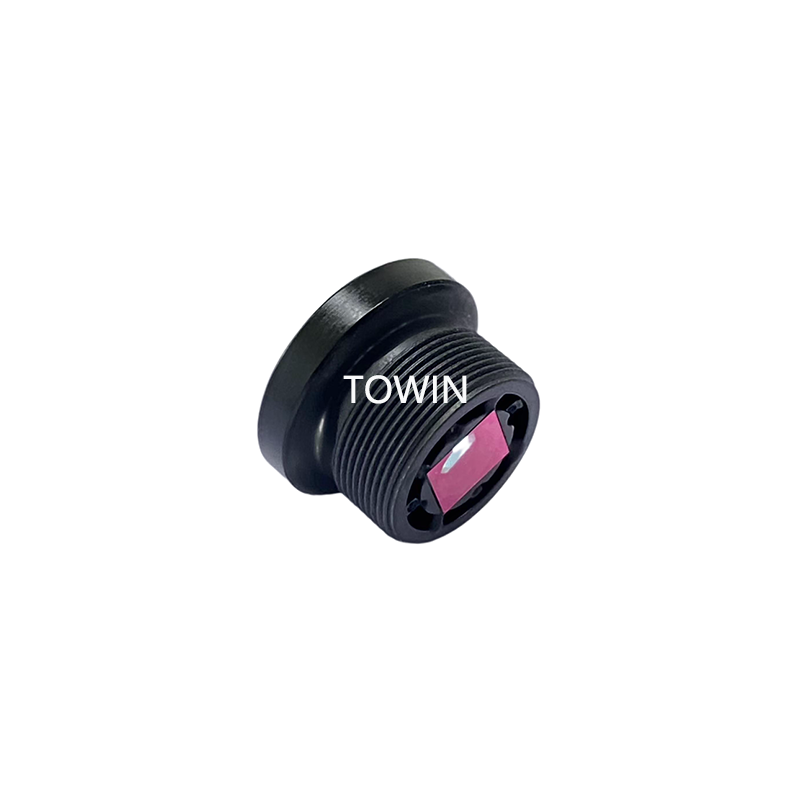

1.0mm M12 Automotive Fisheye Lens

This 1.0mm M12 automotive fisheye lens is designed for ultra-wide vehicle imaging where maximum scene coverage and compact optical integration are essential. With a 200° diagonal FOV, 1.3MP resolution, IP69K protection, and an operating temperature range of -40°C to +85°C, it is suitable for demanding automotive camera systems and exterior vehicle vision applications.

Product Highlights at a Glance

• 200° diagonal FOV for extremely broad vehicle-side scene coverage.
• 1.0mm fisheye optical design for ultra-wide automotive imaging.
• 12.88mm compact T.T.L. for space-constrained camera modules.
• IP69K protection for demanding exterior automotive environments.
• -40°C to +85°C operating range for harsh temperature conditions.

1.0mm M12 200° Fisheye Lens Applications

Core Application Scenes

This 1.0mm M12 automotive fisheye lens is engineered for vehicle-mounted cameras that need to observe an exceptionally wide area from a compact optical position. Its 200° diagonal and 195° horizontal FOV make it particularly suitable for applications where the camera must capture areas immediately surrounding the vehicle rather than concentrate on a distant forward-facing scene.

A key application is automotive surround-view imaging, where multiple compact cameras can be positioned around a vehicle to provide broad coverage of the front, rear, or side areas. The 0.1m minimum object distance is useful for close-range imaging because objects near the vehicle can remain within the lens’s coverage.

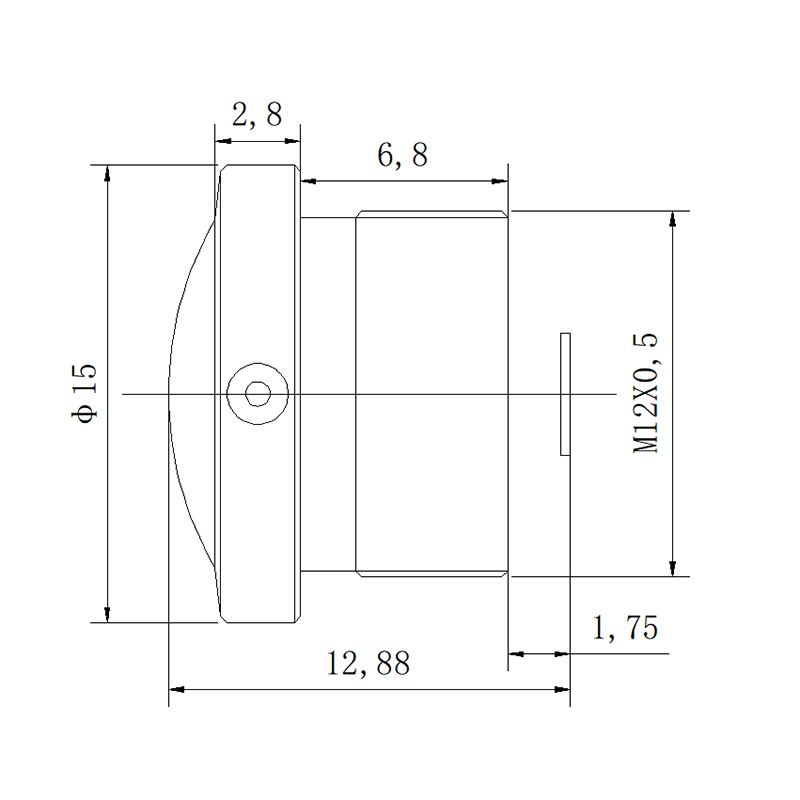

The compact 12.88mm total track length is another important characteristic for automotive camera integration. It allows optical designers to consider the lens for small camera housings where available installation depth is limited. The M12 × 0.5 interface further supports integration into compact vehicle camera assemblies.

This lens is also designed for harsh external environments. Its IP69K protection provides a high level of resistance to dust and powerful water exposure, while the -40°C to +85°C operating temperature range supports demanding outdoor vehicle applications across a broad temperature range.

For automotive perception projects, the lens can be evaluated as part of TOWIN’s ADAS solutions when an ultra-wide optical view is required for close-range environmental awareness. Engineers can also review the Lens Selection Guide when matching sensor format, FOV, focal length, and mechanical constraints.

Compatible Device List

• Automotive Surround-View Cameras: Suitable for front, rear, side, or multi-camera vehicle imaging systems requiring extremely wide coverage.
• Parking Assistance Cameras: The 200° diagonal FOV can help capture nearby obstacles and areas around the vehicle during low-speed maneuvering.
• Side and Blind-Zone Cameras: The ultra-wide horizontal coverage can be used for compact side-mounted vehicle cameras requiring broad lateral visibility.
• Exterior Vehicle Camera Modules: IP69K protection supports applications exposed to road spray, dust, water, and high-pressure cleaning.
• Commercial Vehicle Cameras: The wide temperature range makes the lens suitable for selected trucks, buses, specialty vehicles, and other outdoor vehicle platforms.
• Compact OEM Automotive Cameras: The M12 × 0.5 mount and 12.88mm T.T.L. are suitable for space-constrained customized camera assemblies.

Designed for ultra-wide automotive surround-view, parking assistance, and exterior vehicle imaging applications.

For systems where the camera’s required viewing area needs to be checked against sensor dimensions and focal length, the FOV Calculator can be used during the optical selection process.

Frequently Asked Questions

Q: Is this a fisheye lens?
A: Yes. The 1.0mm focal length, 200° diagonal FOV, and greater than 180° field coverage identify this as an ultra-wide fisheye lens.

Q: What is the field of view of this 1.0mm automotive lens?
A: At the specified 1/4″ image format, the lens provides a 200° diagonal FOV, 195° horizontal FOV, and 151° vertical FOV.

Q: Why is the specified distortion greater than 125%?
A: The high negative distortion is a characteristic of the fisheye optical projection. It enables an extremely wide field of view within a compact optical design and should not be interpreted using the same criteria as a rectilinear low-distortion lens.

Q: Is this lens suitable for automotive surround-view systems?
A: Yes. Its ultra-wide FOV, 0.1m minimum object distance, compact M12 mounting interface, and rugged environmental specifications make it suitable for selected surround-view and close-range automotive imaging systems.

Q: What does the IP69K rating provide?
A: IP69K protection is designed for demanding environments involving dust and high-pressure water exposure, making it suitable for exterior vehicle camera applications.

Q: What is the operating temperature range?
A: The specified operating temperature range is -40°C to +85°C, supporting use in demanding automotive and outdoor environments.

Q: What sensor format is supported by this lens?
A: The lens is specified for a 1/4″ image format and provides 1.3MP resolution. The maximum image format is specified as φ4.1mm. Final sensor compatibility should be confirmed against the sensor’s active imaging area.

Q: How compact is this automotive fisheye lens?
A: The total track length is only 12.88mm, while the lens uses an M12 × 0.5 mount. This compact configuration is useful for vehicle camera modules with limited installation space.
