Low distortion wide angle 4.1mm 75° 1/2.3″ M12 mount lens F4.0 HD 5MP rectilinear scanning
CCL123041MPF Low distortion wide angle 4.1mm 1/2.3″ M12 mount lens F4.0 HD 5MP rectilinear scanning
| IMAGE FORMAT | 1/2.3″ |
| FOCAL LENGTH | 4.1mm |
| F.O.V. | 88°(D) |
| 75°(H) | |
| 60°(V) | |
| RESOLUTION | 8 MP |
| DISTORTION | <-0.4% |
| APERTURE | F4.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 21.9mm |

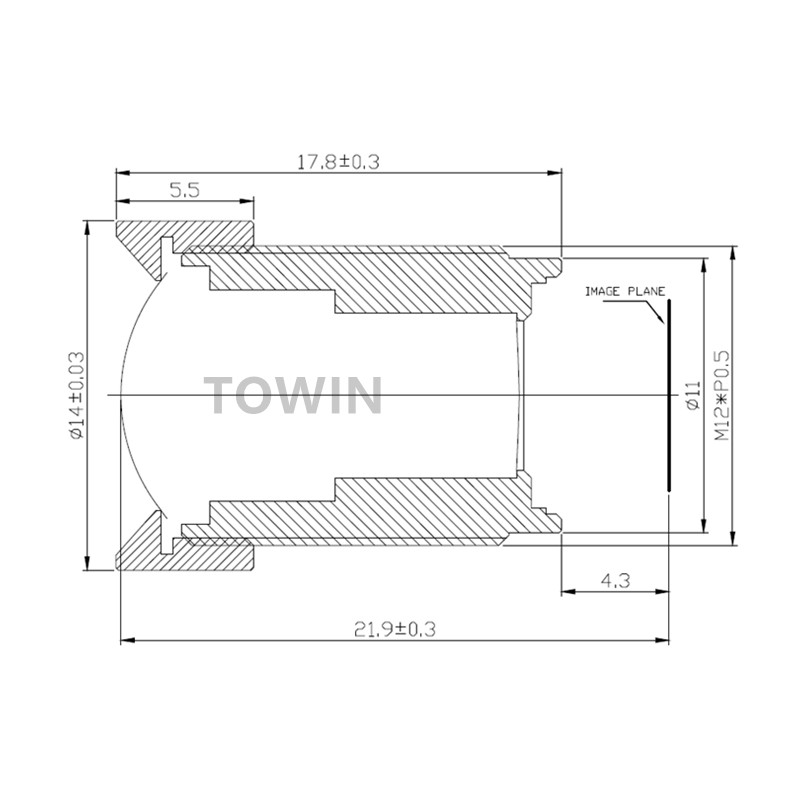

| DIMENSION | Φ14×17.8mm |
| CONSTRUCTION | 3G2P+IRF |
CCL123041MPF Low distortion wide angle 4.1mm 75° M12 mount lens F4.0 HD 5MP rectilinear scanning
