CCL123037MPF
Low distortion wide angle 3.7mm 82° M12 mount lens 1/2.3“ with HD 14MP IMX117 UAV drone

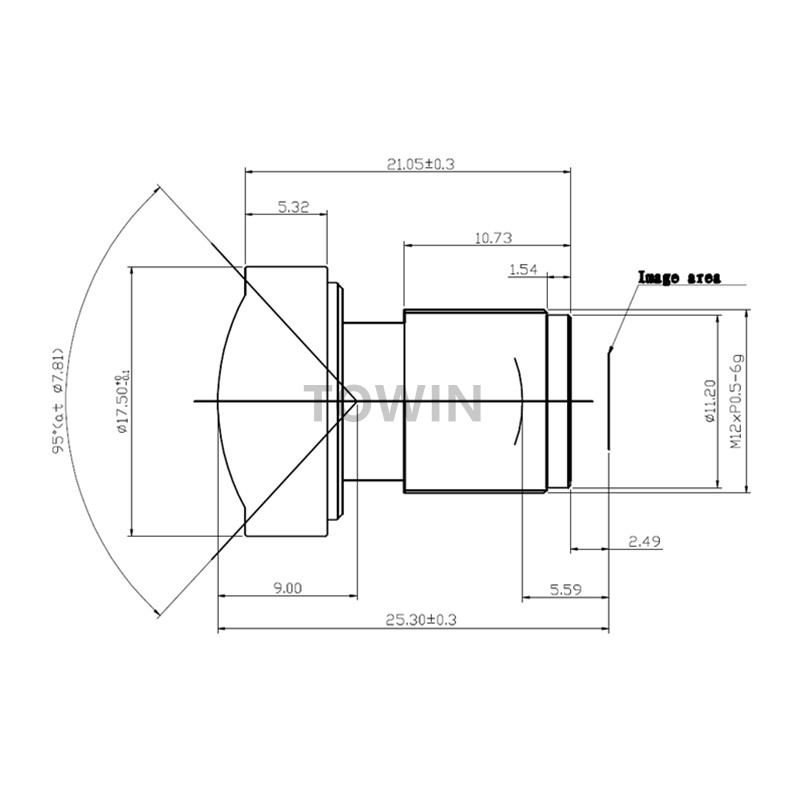

CCL123037MPF Low distortion wide angle 3.7mm 82° M12 mount lens 1/2.3“ with HD 14MP IMX117 UAV drone
| IMAGE FORMAT | 1/2.3“ |
| FOCAL LENGTH | 3.78mm |
| F.O.V. | 95°(D) |
| 82°(H) | |
| 65°(V) | |
| RESOLUTION | 12.5MP |
| TV DISTORTION | <2.8% |
| APERTURE | F2.8 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 25.3mm |
| CONSTRUCTION | 8G+IRF |
CCL123037MPF Low distortion wide angle 3.7mm 82° M12 mount lens with HD 14MP IMX117 UAV drone
Online contact
| SENSOR | |
|---|---|
| E.F.L. | |
| H. F.O.V. | |
| FNo. | |
| Max Dist. | |
| IRIS | |
| MOUNT | |
| RESOLUTION | |
| T.T.L.(mm) | |
| FEATURE | |
| MARK |
