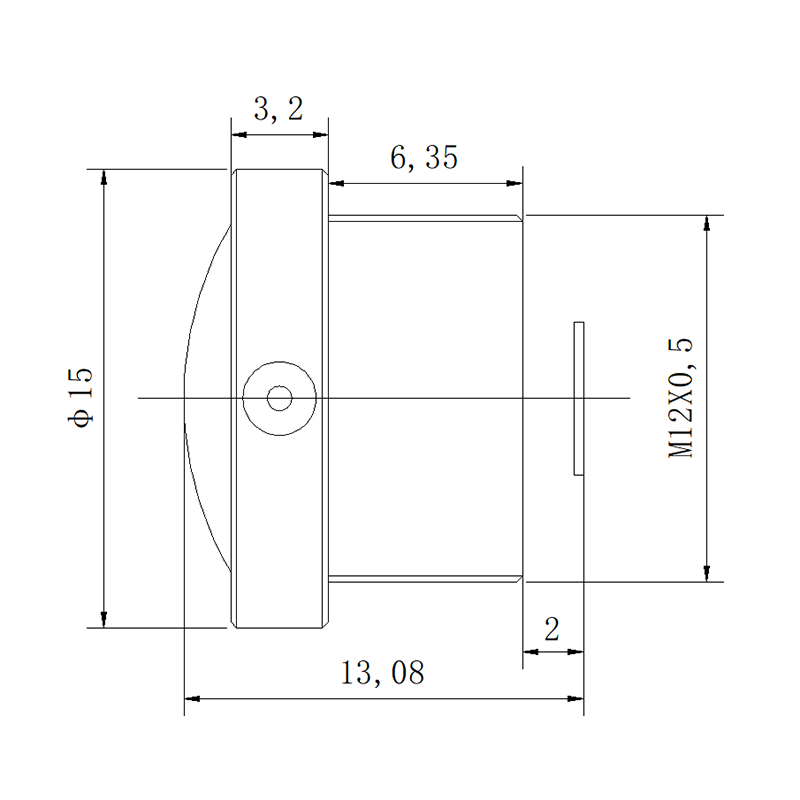

S01213716020F69
Fisheye IP69K Waterproof M12 Lens with Built-In IR Filter, 190° F2.0 Security/Surveillance Lens ruggedized design for harsh environments (-40°C to +85°C).
S01213716020F69 is Fisheye IP69K Waterproof M12 Lens with Built-In IR Filter, 190° F2.0 Security/Surveillance Lens ruggedized design for harsh environments (-40°C to +85°C).
| IMAGE FORMAT | 1/3.7″ Φ4.6 |
| FOCAL LENGTH | 1.2mm |
| F.O.V. (OV7955) | 190°(D=4.80) |
| 160°(H=3.84) | |
| 126° (V=2.88) | |
| RESOLUTION | 640*480 |
| DISTORTION | <-69% |
| APERTURE | F2.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 13.08mm |
| STRUCTURE | 2G4P+IRCF |
| WATERPROOF | IP69K |
| WORKING TEMP. | -40°C~+85°C |
