Low Distortion Lens – CCL14034MP

CCL14034MP is 3.4mm High-Quality low distortion lens for Achromatic, F2.8 M7X0.35 mount lens, 1/4″ high resolution 2-Megapixel CCTV lens.

3.4mm M7 Low Distortion Miniature Lens

The 3.4mm M7 low distortion miniature lens is designed for compact imaging systems that require a small optical footprint, controlled distortion, and reliable close-range imaging. With a 70° diagonal field of view, <1% distortion, F2.8 aperture, and 0.1m minimum object distance, this lens provides a practical balance between coverage and image geometry for embedded vision applications.

Its M7×0.35 mount, 0.8mm back focal length, fixed iris, and manual focus make it suitable for compact cameras where installation space is limited. The 4P optical construction supports lightweight and space-constrained camera designs.

M7 Miniature Low Distortion Lens Core Highlights

<1% Low Distortion Imaging

With distortion controlled below 1%, this lens is suitable for applications where image geometry and object proportions need to remain relatively accurate. The controlled distortion is particularly useful for inspection, measurement-oriented imaging, and machine vision systems where excessive barrel distortion can affect image interpretation.

For more information about optical distortion and its practical impact, see TOWIN’s Distortion Guide.

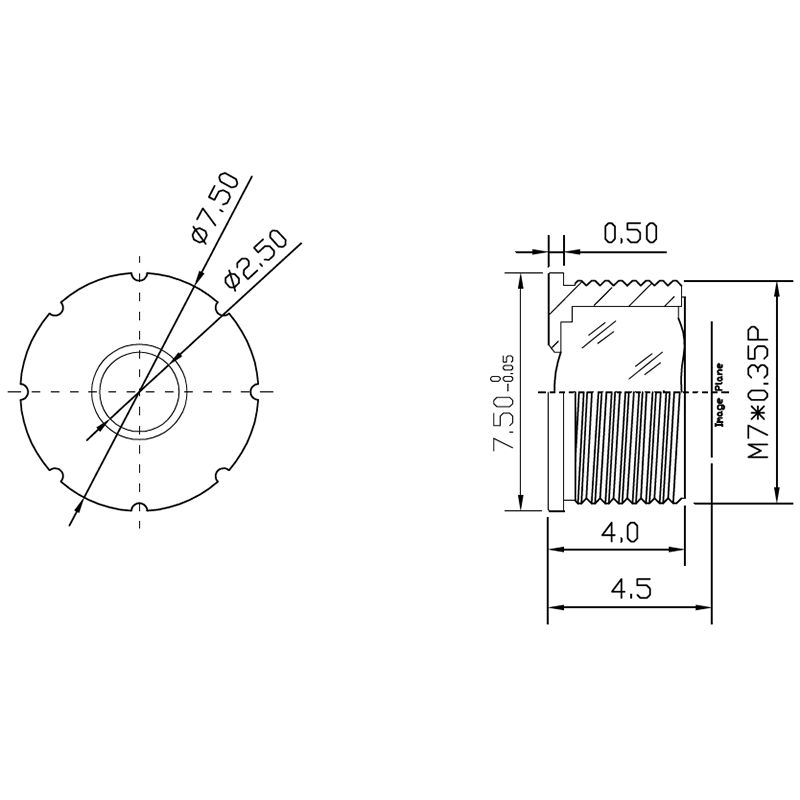

Compact M7×0.35 Mount

The M7×0.35 mount provides a compact mechanical interface for miniature camera modules. Its small form factor makes the lens suitable for embedded cameras and vision devices where a standard C-mount or CS-mount lens would be too large.

The lens can be considered alongside TOWIN’s range of M8/M7/M6/M5/M3.5 Small Mount Lenses when selecting an optical solution for space-constrained equipment.

70° Diagonal Field of View

The 70° diagonal FOV provides a useful viewing range without relying on an extreme wide-angle or fisheye optical design. The 60° horizontal and 40° vertical fields of view make the lens appropriate for compact cameras that need moderate scene coverage while maintaining controlled image geometry.

0.1m Minimum Object Distance

A minimum object distance of 0.1m enables close-range imaging in compact inspection and embedded vision systems. This makes the lens useful when the camera must be installed relatively close to the target while still covering a practical field of view.

TOWIN’s Lens Selection Guide provides additional guidance for matching optical parameters to camera requirements.

M7 Miniature Low Distortion Lens Applications

This 3.4mm M7 lens is particularly suitable for compact systems where lens size and controlled distortion are both important.

Compact Machine Vision

The <1% distortion specification can help preserve object geometry in compact inspection cameras. The 70° diagonal FOV provides sufficient coverage for close-range inspection without the severe geometric distortion associated with fisheye optics.

Explore TOWIN’s Machine Vision Solutions for industrial imaging applications requiring compact optical configurations.

Robotics and Compact Vision Modules

The small mechanical format is useful for robotic or embedded vision modules where optical size and installation clearance are important design constraints.

See TOWIN’s Robotics Vision Solutions for additional application information.

Designed for compact machine vision, embedded imaging, and close-range inspection applications.

Technical Selection Considerations

When integrating this M7 lens into a camera system, several parameters should be evaluated together.

First, verify that the camera sensor is compatible with the 1/4″ image format. Using a sensor significantly larger than the specified image format may result in insufficient image coverage or vignetting.

Second, consider the 70° diagonal field of view in relation to the camera-to-target distance. A wider FOV covers more of the scene, while a longer focal length generally provides a narrower view and greater image magnification.

Third, the <1% distortion specification is important when the application involves object positioning, dimensional inspection, or image-based measurement. If distortion requirements are particularly strict, the complete camera-lens system should be evaluated rather than relying only on the nominal lens specification.

Finally, the 0.8mm BFL and M7×0.35 mounting interface should be checked against the mechanical design of the camera module before integration.

For additional optical fundamentals, visit TOWIN’s Lens Basics Knowledge Center.

Frequently Asked Questions

Q1: What sensor size is this 3.4mm M7 lens designed for?
A: This lens is specified for a 1/4″ image format and is designed for compact camera modules using compatible sensors.

Q2: What is the field of view of the 3.4mm M7 lens?
A: The specified field of view is 70° diagonal, 60° horizontal, and 40° vertical.

Q3: How much distortion does this M7 lens have?
A: The specified distortion is less than 1%, making it suitable for applications where controlled image geometry is important.

Q4: What is the minimum object distance?
A: The minimum object distance is 0.1m, allowing the lens to be used for relatively close-range imaging applications.

Q5: Is this lens fixed focus or autofocus?
A: The lens uses manual focus and fixed zoom. The focus can be adjusted during camera assembly or optical calibration.

Q6: What mount does this lens use?
A: It uses an M7×0.35 mount, which is commonly suited to miniature and embedded camera modules.

Q7: Is this lens suitable for machine vision?
A: Yes. Its 2MP resolution, <1% distortion, 70° diagonal FOV, and compact M7 mechanical design make it suitable for selected compact machine vision and inspection applications.

Q8: Is this lens a fisheye lens?
A: No. Although it provides a relatively broad 70° diagonal FOV, its <1% distortion specification indicates a controlled-distortion design rather than a fisheye configuration.
