Low Distortion Lens – CCL14029MPF

CCL14029MPF is 2.9mm High-end M7 Miniature low distortion lens with IR cut filter, F2.8 M7X0.35 mount lens, 1/4″ Megapixel resolution CCTV lens.

2.9mm M7 Miniature Low Distortion Lens

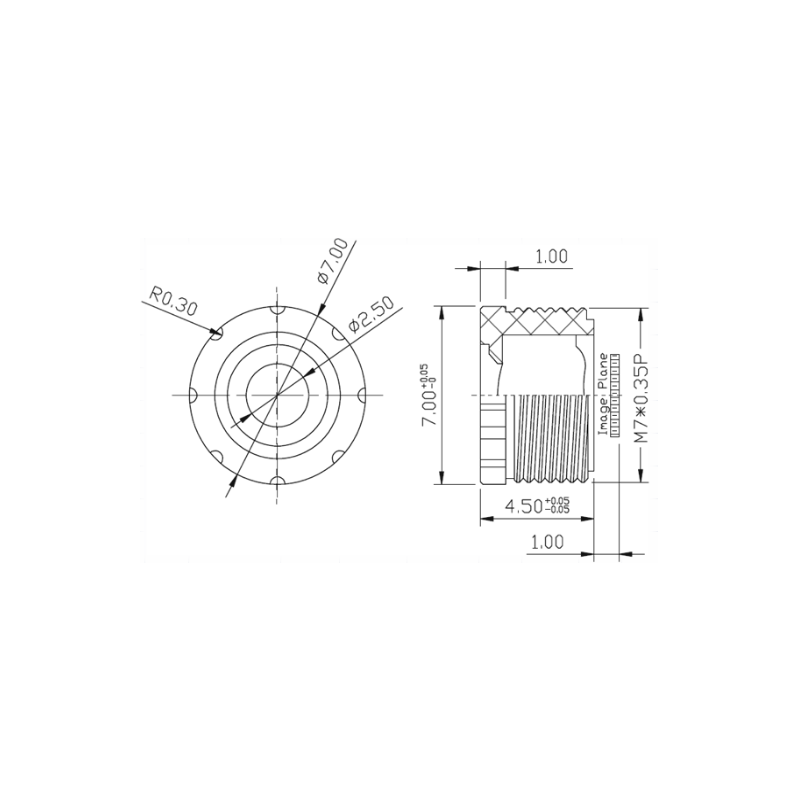

This 2.9mm M7 low distortion lens is a compact optical solution for 1/4″ camera systems that require accurate image geometry and a practical 75° diagonal field of view. With distortion below 1%, a fixed F2.8 aperture, M7×0.35 mount, 1mm BFL, and 4P optical construction with an integrated IR cut filter, it is well suited to compact imaging systems where low distortion and mechanical size are important.

For more miniature optical solutions, explore TOWIN’s M8/M7/M6/M5/M3.5 Small Mount Lenses or browse the complete Products range.

M7 Low Distortion Lens Core Highlights

• Ultra-Low Distortion — Distortion below 1% helps maintain more accurate image geometry for applications where excessive image deformation can affect visual analysis.
• 2.9mm Fixed Focal Length — Provides a 75° diagonal field of view for broad coverage within a compact optical package.
• Compact M7×0.35 Mount — The miniature M7 interface is suitable for space-constrained camera modules and embedded imaging devices.
• 1mm BFL — The short back focal length supports integration into compact optical assemblies.
• Integrated IR Cut Filter — The 4P optical construction includes an IR cut filter for visible-light imaging applications.
• Fixed F2.8 Aperture — Provides a stable optical configuration for compact camera systems.

M7 Low Distortion Lens Applications

This M7 low distortion lens is designed for compact imaging applications where image geometry is more important than extreme field-of-view coverage. Its <1% distortion makes it particularly different from conventional fisheye and ultra-wide lenses, providing a more natural image shape while retaining a 75° diagonal field of view.

Designed for compact low-distortion imaging applications.

Compact Machine Vision

The low distortion characteristic makes this lens suitable for machine vision systems that need to capture objects with relatively consistent geometric proportions. It can be considered for inspection, positioning, object recognition, and visual monitoring where excessive barrel distortion could affect image interpretation.

The compact M7×0.35 mounting interface is useful for embedded machine vision modules where available installation space is limited.

Explore TOWIN’s Machine Vision solution for industrial imaging applications.

Embedded Vision

The combination of a miniature M7 mount, 1mm BFL, and compact optical design makes this lens suitable for embedded camera systems. It can be integrated into small imaging devices where both optical performance and mechanical dimensions need to be considered.

Potential applications include compact inspection cameras, embedded vision modules, smart devices, and specialized imaging equipment.

For additional miniature lens options, visit the M8/M7/M6/M5/M3.5 Small Mount Lenses category.

Robotics Vision

In compact robotics vision modules, controlled distortion can be beneficial when the captured image is used for object recognition, positioning, or visual analysis. The 75° diagonal field of view provides useful scene coverage without the severe geometric deformation associated with fisheye optics.

See TOWIN’s Robotics Vision solution for related applications.

Smart Monitoring

The 2.9mm focal length provides broad scene coverage for compact monitoring cameras, while the low-distortion optical design helps maintain a more natural image geometry.

The integrated IR cut filter makes this lens suitable for visible-light camera systems that require infrared wavelengths to be filtered from the imaging path.

For application-specific information, explore Smart Security.

Why Choose a Low Distortion Lens?

Field of view and distortion should be considered together when selecting a compact camera lens. Extremely wide-angle and fisheye lenses can provide greater coverage, but they can also introduce substantial geometric deformation.

This 2.9mm M7 lens takes a different approach. With a 75° diagonal field of view and distortion below 1%, it provides useful scene coverage while maintaining much more controlled image geometry.

This characteristic can be beneficial when straight lines, object proportions, or spatial relationships need to remain visually consistent.

For more information about optical distortion, visit TOWIN’s Distortion Guide.

Lens Selection Considerations

Before selecting this lens, confirm that the camera uses a 1/4″ image format and that the mechanical design supports an M7×0.35 mount.

The 2.9mm focal length provides a 75° diagonal FOV, while the 0.2m minimum object distance makes the lens suitable for relatively close imaging applications.

The 1mm BFL is also an important mechanical parameter when designing the camera housing and sensor-to-lens optical assembly.

For more information about matching a lens to a camera sensor, visit the Sensor Guide and Lens Selection Guide.

You can also use the FOV Calculator to evaluate the required field of view for your application.

Frequently Asked Questions

Q: What is the focal length of this M7 lens?
A: The focal length is 2.9mm.

Q: What is the field of view of this lens?
A: The specified diagonal field of view is 75°.

Q: How low is the distortion of this lens?
A: The specified distortion is below -1%, making it a low-distortion optical solution compared with conventional wide-angle or fisheye lenses.

Q: What sensor format is this lens designed for?
A: The lens is designed for a 1/4″ image format.

Q: What mount does this lens use?
A: It uses an M7×0.35 miniature mount.

Q: Does the lens include an IR cut filter?
A: Yes. The optical construction is specified as 4P + IR cut filter.

Q: What is the minimum object distance?
A: The specified M.O.D. is 0.2m.

Q: Is the aperture adjustable?
A: No. The lens uses a fixed F2.8 aperture and fixed iris.

Related TOWIN Optical Resources

TOWIN provides optical solutions for compact embedded cameras, industrial imaging, machine vision, and specialized camera systems. Explore M12 Lenses, C-Mount Lenses, CS-Mount Lenses, and Other Mount Lenses to compare different mounting platforms.

For optical fundamentals and lens selection information, visit the Lens Basics, Optical Design, and Knowledge Center.

If you need help selecting a miniature low-distortion lens for a specific camera or application, contact TOWIN through the Contact page.
