Wide Angle Lens – CCL14028MP

CCL14028MP is 2.8mm High-Quality wide-angle lens, 1/4″ Low F-number M12/S-Mount HD Lens (F2.0), 89° high resolution 5-Megapixel CCTV lens.

2.8mm M12 5MP Low Distortion Wide Angle Lens

This 2.8mm M12 wide angle lens is designed for compact 5MP imaging systems that require broad scene coverage with controlled optical distortion. Featuring an 89° diagonal field of view, F2.0 fixed aperture, M12×0.5 mount, and 7G optical construction, it provides a practical balance between wide-angle coverage, image detail, and compact mechanical integration.

For more compact lens options, explore TOWIN’s M12 Lenses or browse the complete Products range.

M12 Wide Angle Lens Core Highlights

• 2.8mm Wide-Angle Focal Length — Provides 89° diagonal, 73° horizontal, and 61° vertical field of view for broad scene coverage.
• 5MP Resolution — Designed for 5MP imaging systems where wide-angle coverage and image detail are both important.
• Controlled Optical Distortion — Distortion below -18% provides a more controlled image geometry than extreme fisheye designs.
• F2.0 Fixed Aperture — Provides a relatively bright optical configuration for compact imaging systems operating under varying lighting conditions.
• Compact M12×0.5 Mount — The standard M12 interface simplifies integration into embedded cameras and compact vision systems.
• 7G Optical Construction — The 7-element glass construction supports the optical requirements of a 5MP wide-angle imaging system.

M12 Wide Angle Lens Applications

This 2.8mm M12 lens is suitable for compact camera systems that need a relatively wide viewing angle without the extreme geometric distortion associated with fisheye lenses. Its 73° horizontal FOV provides broad scene coverage while maintaining a more controlled optical profile.

Machine Vision

The combination of 5MP resolution, 2.8mm focal length, and controlled distortion makes this lens suitable for machine vision systems where the camera needs to observe a relatively large working area.

It can be considered for inspection systems, object presence detection, positioning, classification, and other industrial imaging tasks where extreme telephoto magnification is not required.

Designed for compact machine vision inspection applications.

Explore TOWIN’s Machine Vision solution for additional industrial imaging applications.

Embedded Vision

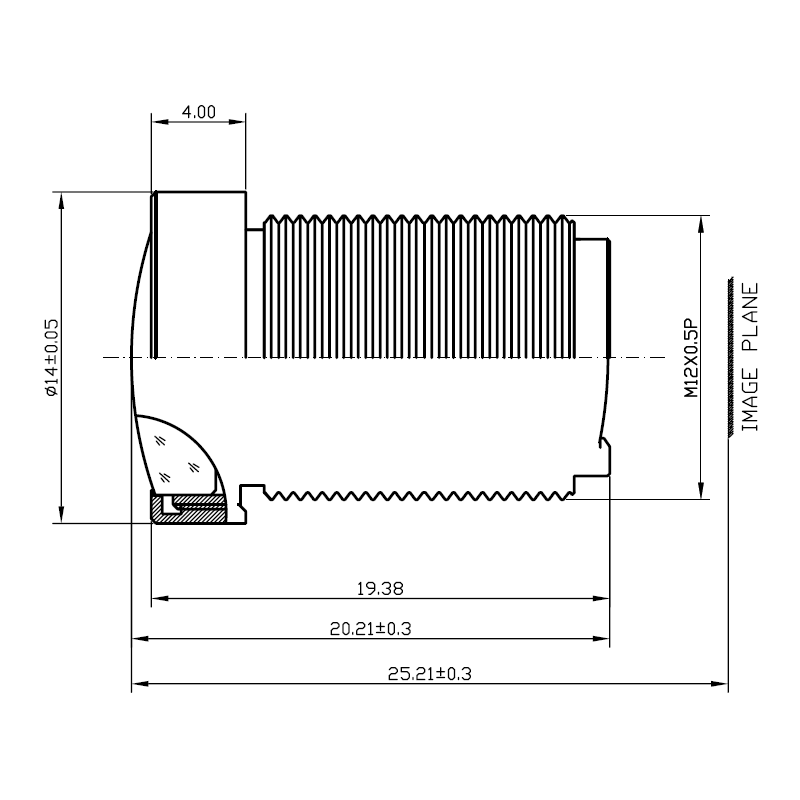

The M12×0.5 mount makes this lens suitable for embedded camera modules where optical dimensions and mechanical integration are important. The 25.21mm TTL provides a defined optical package for camera designers working with compact housings.

Typical applications include embedded inspection cameras, smart imaging devices, compact monitoring systems, and industrial camera modules.

For additional information about M12 optical systems, visit TOWIN’s M12 Lens solution.

Robotics Vision

A 73° horizontal field of view can provide useful scene coverage for robotic imaging systems while maintaining more controlled distortion than an ultra-wide fisheye lens. This makes the lens suitable for applications where the camera needs to observe objects or operating areas at relatively close distances.

Potential applications include robotic inspection, object detection, positioning, and compact vision modules.

See the Robotics Vision solution for more information.

Smart Security

The 2.8mm focal length and 89° diagonal FOV can provide broad coverage for compact monitoring cameras and embedded security devices. The F2.0 aperture also makes the lens suitable for applications where a relatively bright optical system is beneficial.

For security-focused imaging applications, explore TOWIN’s Smart Security solutions.

Compatible Devices

This lens can be considered for:

• 1/4″ 5MP camera modules
• M12×0.5 camera systems
• Embedded vision cameras
• Compact machine vision cameras
• Robotics vision modules
• Industrial inspection cameras
• Smart monitoring devices
• Compact security camera systems

Wide Angle with Controlled Distortion

When selecting a wide-angle lens, field of view and distortion should be evaluated together. A shorter focal length generally provides broader scene coverage, but extreme wide-angle designs can introduce substantial geometric distortion.

With an 89° diagonal FOV and distortion below -18%, this 2.8mm lens occupies a practical position between standard wide-angle imaging and extreme fisheye imaging. This makes it suitable when broad coverage is required but excessive image deformation should be avoided.

For a deeper explanation of distortion and its effect on imaging, visit the Distortion Guide.

You can also use TOWIN’s FOV Calculator to estimate the field of view required for your camera system.

Lens Selection Considerations

Before selecting this lens, confirm that your camera uses a 1/4″ image format and an M12×0.5 mounting interface. The 2.8mm focal length provides a relatively broad field of view, while the 0.2m minimum object distance makes it suitable for applications involving relatively close subjects.

For more information about matching lenses with camera sensors, visit the Sensor Guide and Lens Selection Guide.

If you need to compare focal lengths for a specific working distance and target area, TOWIN’s Focal Length Calculator can also be used during the lens selection process.

Frequently Asked Questions

Q: What is the focal length of this M12 lens?
A: The focal length is 2.8mm, providing a wide field of view for compact 1/4″ imaging systems.

Q: What is the field of view of this lens?
A: The lens provides an 89° diagonal, 73° horizontal, and 61° vertical field of view.

Q: What resolution does this lens support?
A: This lens is specified for 5MP imaging applications.

Q: Is this a fisheye lens?
A: No. The 2.8mm lens provides a wide-angle field of view, but its <18% distortion is more controlled than the extreme distortion normally associated with fisheye optics.

Q: What mount does this lens use?
A: It uses an M12×0.5 mount, making it suitable for compact M12 camera modules and embedded imaging systems.

Q: What is the aperture of this lens?
A: The lens uses a fixed F2.0 aperture and fixed iris configuration.

Q: What is the minimum object distance?
A: The specified minimum object distance is 0.2m.

Q: What is the optical construction?
A: The lens uses a 7G optical construction.
