Wide Angle Lens – CCL14024MP

CCL14024MP is 2.4mm Wide-Angle Lens with High Light Transmission Rate, F2.8 M7X0.35 mount lens, 1/4″ 2-Megapixel resolution CCTV HD lens.

2.4mm M7 Wide Angle Lens

This 2.4mm M7 low distortion wide angle lens provides a 120° diagonal field of view while maintaining a controlled -14% TV distortion, making it suitable for compact camera systems that require broad scene coverage without the extreme image deformation of fisheye optics. With 2MP resolution, an F2.8 fixed aperture, and an M7×0.35 miniature mount, it is designed for embedded imaging, robotics, industrial monitoring, and compact machine vision systems.

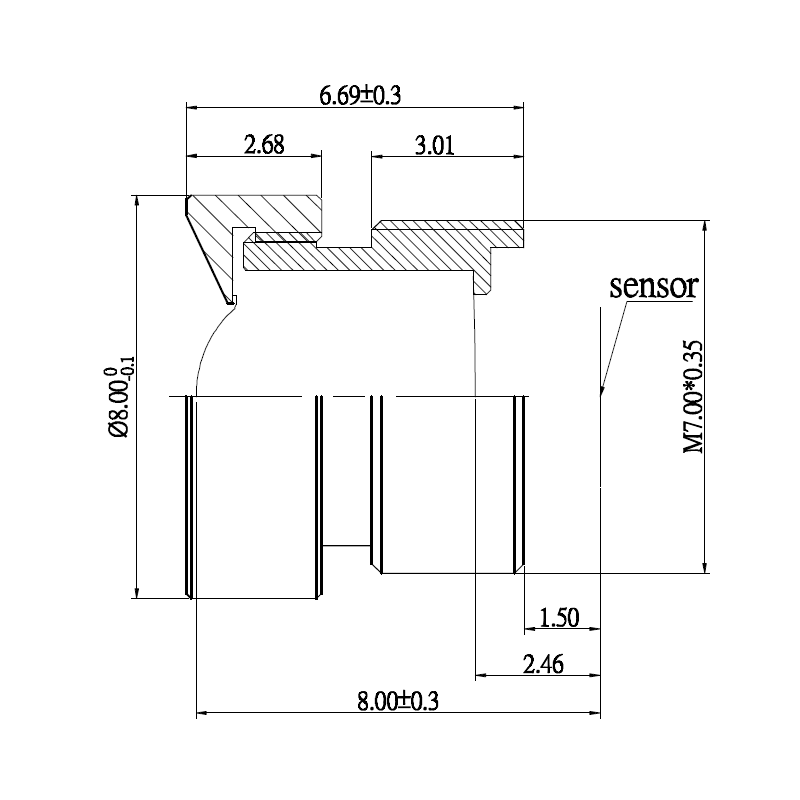

Its 2G2P optical construction, 2.46mm BFL, and 0.2m minimum object distance provide a compact optical configuration for applications where both wide-angle coverage and limited installation space are important.

For additional miniature lens options, explore TOWIN’s M8/M7/M6/M5/M3.5 Small Mount Lenses.

M7 Miniature Wide Angle Lens Core Highlights

• 120° Wide Diagonal FOV — Provides broad scene coverage from a compact camera position.
• -14% TV Distortion — Offers controlled geometric distortion for wide-angle imaging applications.
• 2MP Resolution — Provides practical image detail for compact embedded and industrial camera systems.
• M7×0.35 Miniature Mount — Supports integration into small camera modules where mechanical space is limited.
• 0.2m Minimum Object Distance — Supports close-range wide-area imaging in compact installations.

M7 Miniature Wide Angle Lens Applications

This 2.4mm M7 wide angle lens is designed for compact imaging systems that need to cover a relatively large scene from a limited installation distance. Its 120° diagonal FOV provides broad visual coverage, while the -14% TV distortion offers a more controlled image geometry than highly distorted fisheye designs.

Compact Embedded Vision

The miniature M7×0.35 mount makes this lens suitable for embedded camera modules installed inside compact equipment. Its wide viewing angle can help a small camera observe a larger area without requiring a physically large optical assembly.

Designed for compact embedded wide-angle imaging applications.

Robotics & Mobile Platforms

For small robotic platforms, a wide-angle lens can increase the amount of surrounding information captured by a single camera. The 2.4mm focal length and compact M7 form factor make this lens suitable for embedded robotic vision modules where installation space is restricted.

Explore TOWIN’s Robotics Vision solution for additional robotic imaging applications.

Industrial Equipment Monitoring

This lens can be integrated into cameras used to monitor operating areas around industrial equipment, automated machinery, and compact inspection platforms. Its controlled distortion is useful where broad observation is required without adopting a highly distorted fisheye image.

For industrial imaging applications, see TOWIN’s Machine Vision solution.

Short-Distance Wide-Area Imaging

With a specified M.O.D. of 0.2m, this lens is suitable for close-range applications where the camera must cover a wide area. This can be useful for equipment observation, compact robotic platforms, and embedded camera systems installed near the monitored scene.

Wide Coverage with Controlled Distortion

A very wide field of view does not necessarily require a fisheye lens. For many embedded and industrial applications, excessive geometric distortion can make objects near the edge of the image appear significantly deformed.

This lens combines a 120° diagonal FOV with -14% TV distortion, providing a practical balance between wide scene coverage and image geometry. It is therefore better suited to applications that require a broad view while retaining more controlled image representation.

For more information about how distortion affects lens performance, visit TOWIN’s Distortion Guide.

When evaluating this lens for a camera project, sensor format, focal length, working distance, and field of view should be considered together. TOWIN’s Lens Selection Guide provides additional guidance for choosing a suitable optical configuration.

You can also use the FOV Calculator to estimate the required coverage for a specific camera installation.

Frequently Asked Questions

Q: What is the focal length of this M7 lens?
A: The focal length is 2.4mm, providing a wide viewing angle for compact imaging applications.

Q: What is the field of view of the lens?
A: The specified field of view is 120° diagonal, 88° horizontal, and 60° vertical.

Q: What is the TV distortion of this lens?
A: The specified TV distortion is -14%, providing controlled distortion for a wide-angle optical configuration.

Q: Is this lens a fisheye lens?
A: It is better classified as a low distortion wide-angle lens rather than a conventional fisheye lens. The 120° diagonal FOV is wide, while the -14% distortion provides more controlled image geometry.

Q: What image format does this lens support?
A: The specified image format is 1/4″.

Q: What type of mount does the lens use?
A: It uses an M7×0.35 miniature mount for compact camera assemblies.

Q: What is the minimum object distance?
A: The specified M.O.D. is 0.2m.

Q: Does this lens have a fixed aperture?
A: Yes. The lens uses a fixed F2.8 aperture and fixed iris configuration.

Related TOWIN Products & Resources

TOWIN provides a range of compact optical solutions for different sensor formats, mounting interfaces, and imaging requirements. Browse the complete Products range to compare available industrial and embedded lenses.

For miniature M12-based systems, explore M12 Lenses; For larger industrial camera architectures, TOWIN also offers C-Mount Lenses and CS-Mount Lenses.

For fundamental information about focal length, FOV, sensor matching, and other optical parameters, visit Lens Basics and Sensor Guide.

If you need help selecting or customizing a lens for your camera module, contact TOWIN through the Contact page.
