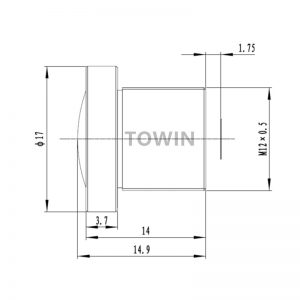

CCL1401820MP is 1.8mm Compact Fisheye Lens with T.T.L. 14mm, 5-megapixel resolution F2.0 aperture Low F-number M12/S-Mount Lens(Fast Lenses).
| IMAGE FORMAT | Φ4.7mm |
| FOCAL LENGTH | 1.8mm |
| F.O.V.@4.7mm | 200° |
| F.O.V.@4.6mm | 185° |
| F.O.V.@3.84mm | 136° |
| F.O.V.@3.4mm | 110° |
| RESOLUTION | 5 Megapixel |
| OPTICAL DISTORTION | <-122% |
| APERTURE | F2.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 14mm |
| B.F.L. | 3.46mm |
| COMPONENT | 6G |
