CCL125026MPFR
2.6mm Fisheye 8 Megapixel CCTV HD Lens, M12x0.5 mount lens, surveillance lens.
CCL125026MPFR-2.6mm High-Quality Fisheye Lens Supplier, 8 Megapixel CCTV HD Lens, F2.4 aperture, M12x0.5 mount lens, surveillance lens.
| IMAGE FORMAT | Max ø7.9 |
| FOCAL LENGTH | 2.6mm |
| F.O.V.(IMX347) | 185°(D) |
| 175°(H) | |
| 105°(V) | |
| RESOLUTION | 8 MP |
| DISTORTION | <-95% |
| APERTURE | F2.4 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| T.T.L. | 22.20mm |

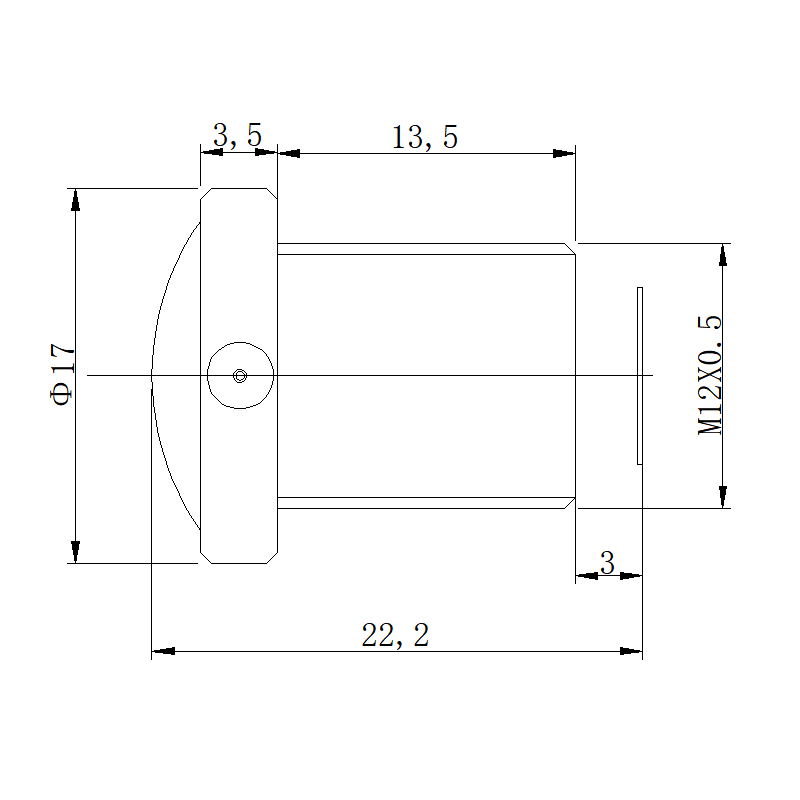

| DIMENSION | Φ17×19.14mm |
| STRUCTURE | 7G+IRF |
