CCL1316MP
Low distortion CCTV 16mm M12 S-mount board lens 1/3″ HD IR corrected F1.8 surveillance
CCL1316MP Low distortion CCTV 16mm M12 S-mount board lens 1/3″ HD IR corrected F1.8 surveillance
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 16mm |
| F.O.V. | 20°(D) |
| 16.5°(H) | |
| 12.5°(V) | |
| RESOLUTION | 2MP |
| DISTORTION | <0.5% |
| APERTURE | F1.8 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| M.O.D. | 0.3m |
| T.T.L. | 21.87mm |
| B.F.L. | 6.57mm |

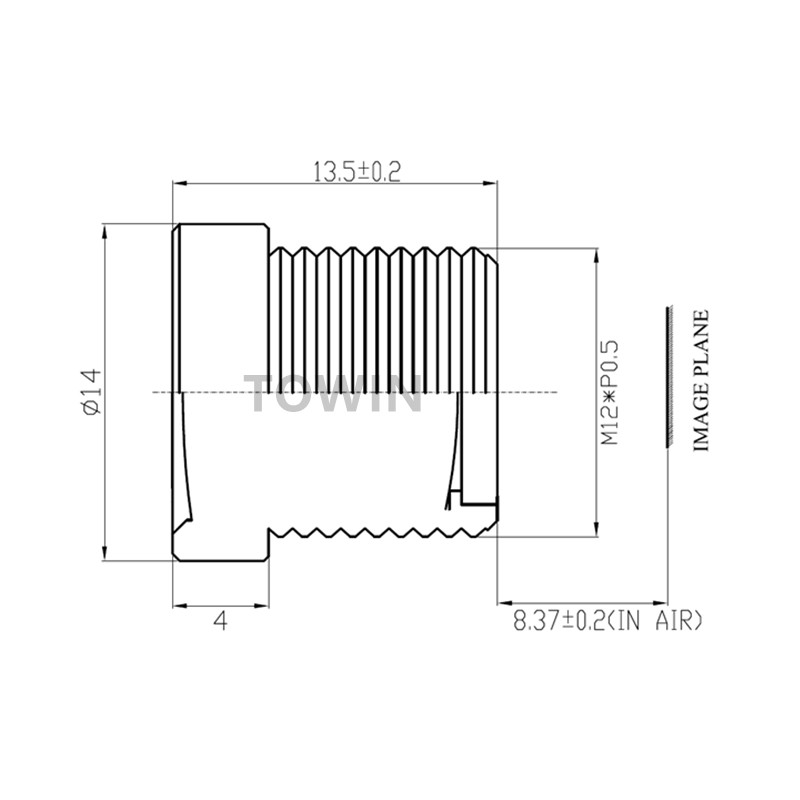

| DIMENSION | Φ14×13.5mm |
