CCL2312MPR4
Low distortion 12mm F4.0 M12 S-mount board lens 2/3″ HD 5MP for IR rectilinear scanning
CCL2312MPR4 Low distortion 12mm F4.0 M12 S-mount board lens 2/3″ HD 5MP for IR rectilinear scanning
| IMAGE FORMAT | 2/3″, 1/1.8″,1/2″ |
| FOCAL LENGTH | 12mm |
| F.O.V.(2/3″) | 50°(D) |
| 39°(H) | |
| 28°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-1.4% |
| APERTURE | F4.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| B.F.L. | 8.59mm |
| T.T.L.(mm) | 19.44 |

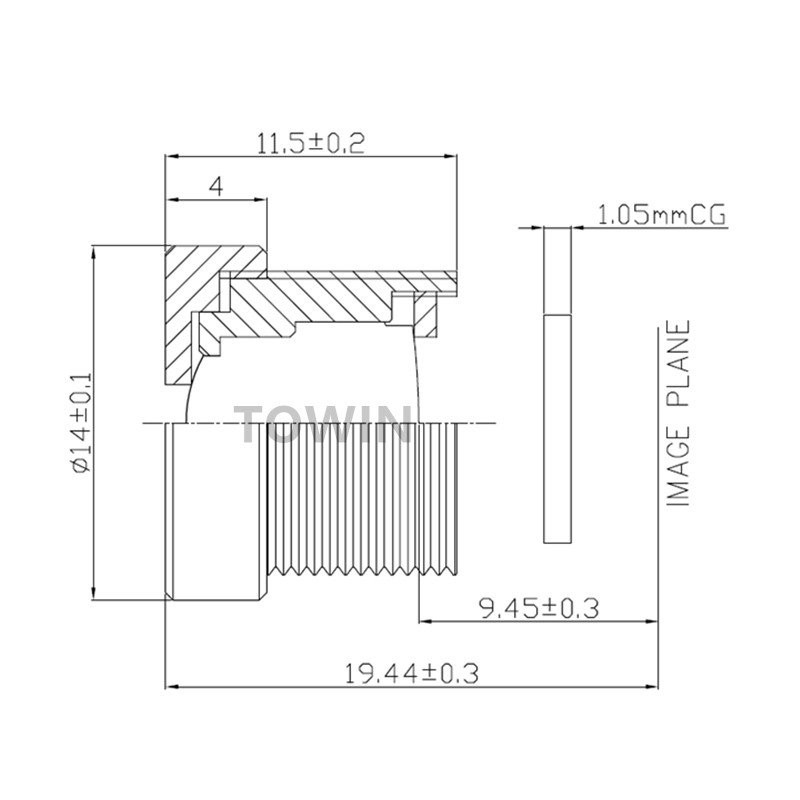

| DIMENSION | Φ14×11.5mm |
| CONSTRUCTION | 6G |
CCL2312MPR4 Low distortion 12mm F4.0 M12 S-mount board lens HD 5MP for IR rectilinear scanning
