CCL13042MPF

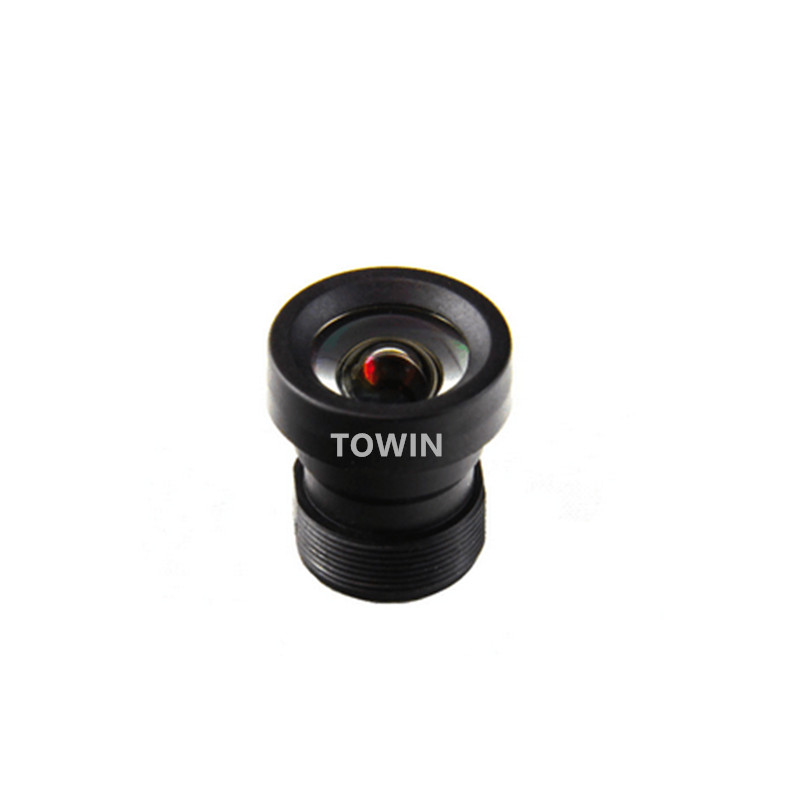

Low distortion wide angle 4.2mm M12 mount lens HD megapixel rectilinear scanning
CCL13042MPF Low distortion wide angle 4.2mm M12 mount lens HD megapixel rectilinear scanning
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 4.2mm |
| F.O.V. | 73°(D) |
| 62°(H) | |
| 48°(V) | |
| RESOLUTION | 14 MP |
| DISTORTION | <-0.2% |
| APERTURE | F3.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| T.T.L. | 21.84mm |

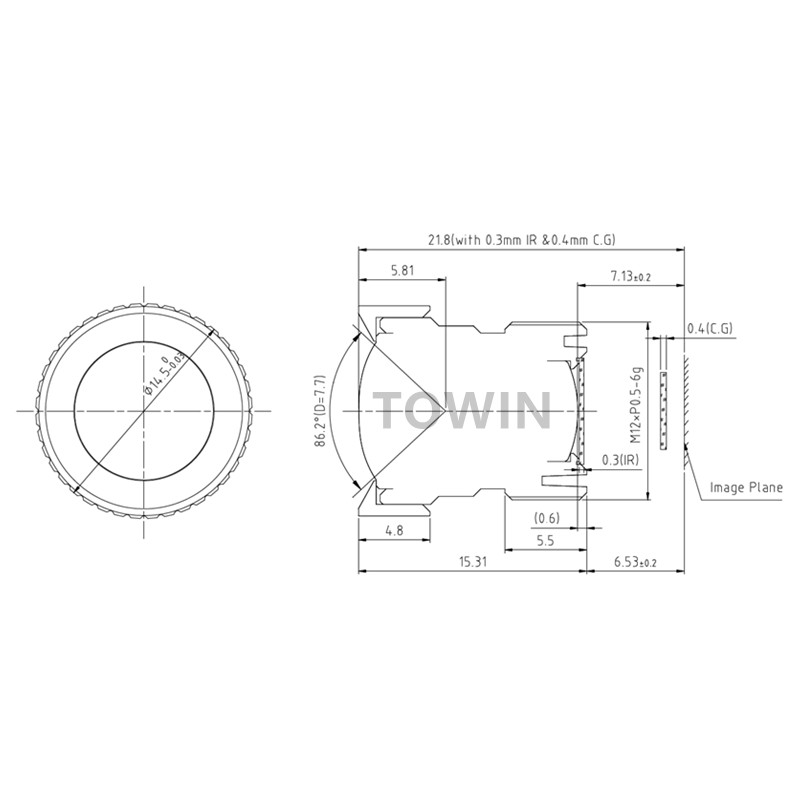

| DIMENSION | Φ15.31×14.5mm |
| LENS COMPOMEMT | 3G2P+IRF |
CCL13042MPF Low distortion wide angle 4.2mm M12 mount lens HD megapixel rectilinear scanning
