CCL13060MPR
Low distortion wide angle 6mm 44° M12 mount lens HD 3MP F3.5 rectilinear scanning
CCL13060MPR Low distortion wide angle 6mm 44° M12 mount lens HD 3MP F3.5 rectilinear scanning
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 6mm |
| F.O.V. | 54°(D) |
| 44°(H) | |
| 34°(V) | |
| RESOLUTION | 3 MP |
| OPTICAL DISTORTION | <-0.1% |
| APERTURE | F3.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.B.F.L. | 2.64mm |
| M.O.D. | 0.1m |
| T.T.L. | 9.83mm |

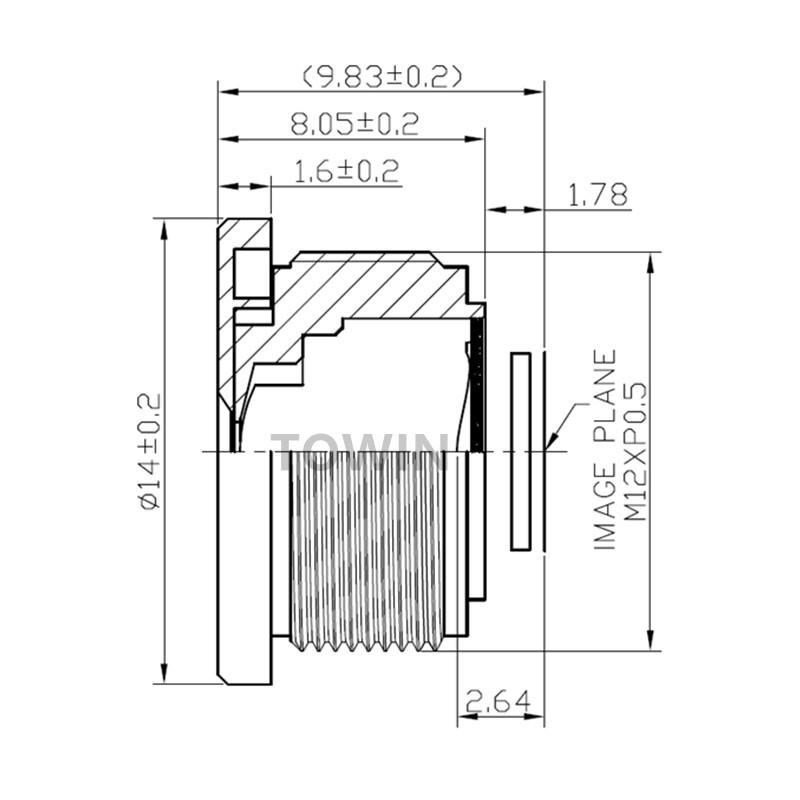

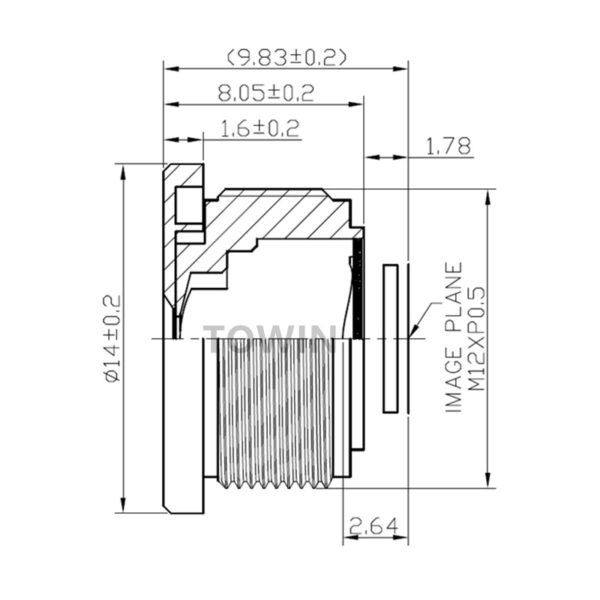

| DIMENSION | Φ14x8mm |
| LENS COMPONEMT | 2G2P |
CCL13060MPR Low distortion wide angle 6mm 44° M12 mount lens HD 3MP F3.5 rectilinear scanning
