CCL1302322MPF
Wide Angle IP67 automotive M12 S-mount board lens 2.3mm waterproof car view HD

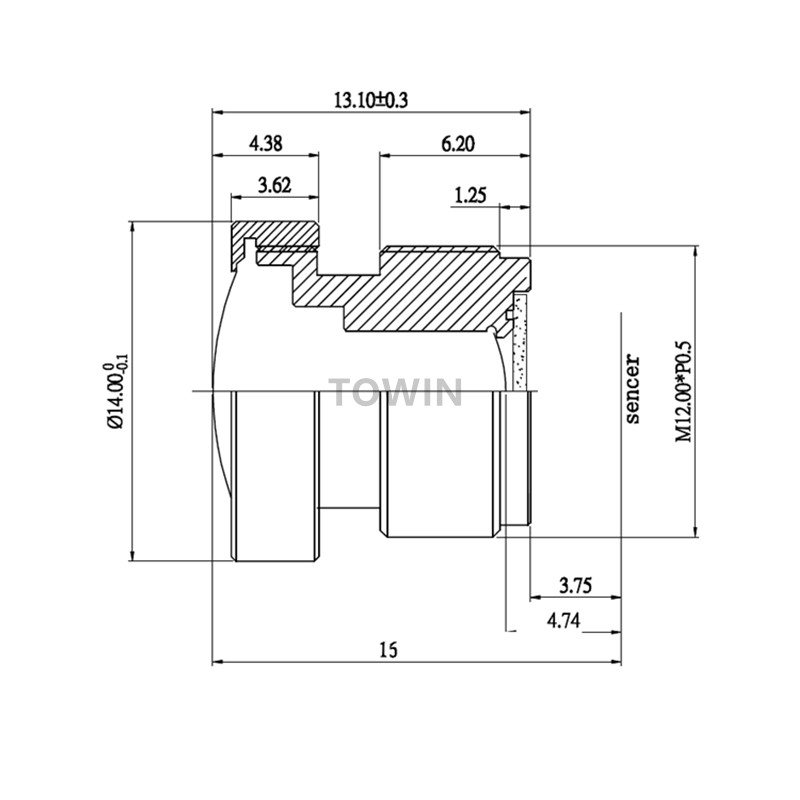

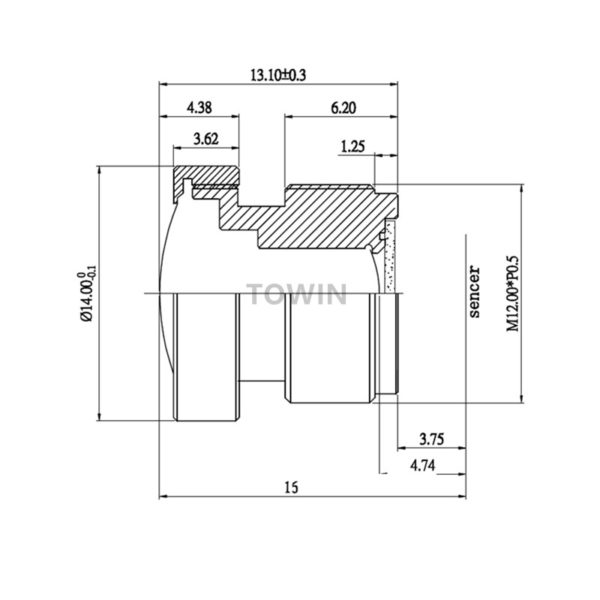

CCL1302322MPF Wide Angle IP67 automotive M12 S-mount board lens 2.3mm waterproof car view HD
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 2.3mm |
| F.O.V.(OV4689) | 170°(D=6.18) |
| 143°(H=5.38) | |
| 78°(V=3.02) | |
| F.O.V.(AR0130) | 160°(D) |
| 118°(H) | |
| 75°(V) | |
| TV DISTORTION | 25% |
| RESOLUTION | 4 MP |
| APERTURE | F2.2 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| B.F.L. | 4.74mm |
| TTL | 16.85 |
| M.O.D. | 0.3m |
| CONSTRUCTION | 6G+IR cut |
