Low light F1.2 HD CCTV M12 S-mount board lens 2MP wide angle 3.6mm OV2710

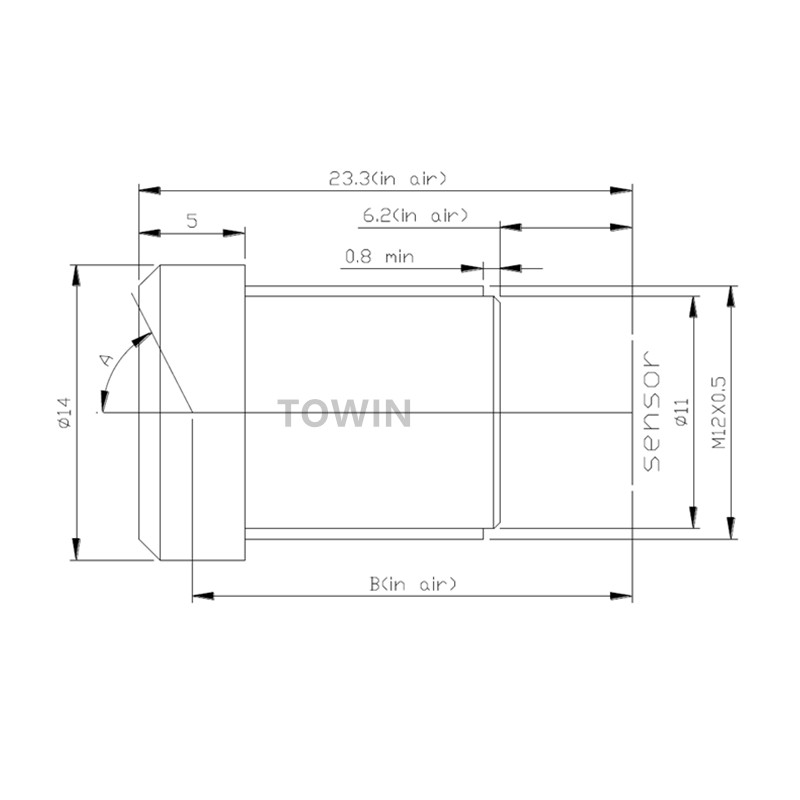

CCL12703612MP Low light F1.2 HD CCTV M12 S-mount board lens 2MP wide angle 3.6mm OV2710
| IMAGE FORMAT | 1/2.7″ |
| FOCAL LENGTH | 3.6mm |
| F.O.V. | 117°(D) |
| 95°(H) | |
| 49°(V) | |
| RESOLUTION | 3Megapixel |
| APERTURE | F1.2 |
| MOUNT | M12X0.5 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 6.2mm |
| TTL | 23.3 |
| M.O.D. | 0.3m |
| IR | Corrected |
CCL12703612MP Low light F1.2 HD CCTV M12 S-mount board lens 2MP wide angle 3.6mm OV2710
