CCL125030MPF
Low distortion wide angle 3mm 1/2.5″ 95° M12 mount lens for car rear view driving recorder

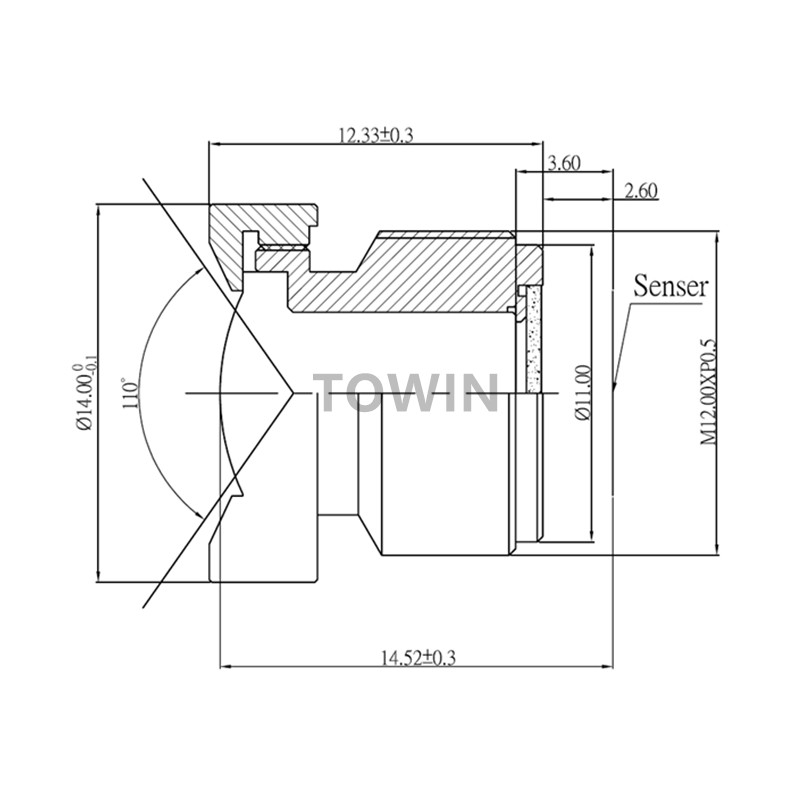

CCL125030MPF Low distortion wide angle 3mm 1/2.5″ 95° M12 mount lens for car rear view driving recorder
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 3mm |
| F.O.V. | 110°(D) |
| 95°(H) | |
| 74°(V) | |
| RESOLUTION | 5 MP |
| OPTICAL DISTORTION | <-18% |
| APERTURE | F2.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| TTL | 14.52 |
| DIMENSION | Φ14×12.33mm |
| LENS COMPOMEMT | 2G+2P+IR |
CCL125030MPF Low distortion wide angle 3mm 95° M12 mount lens for car rear view driving recorder
Online contact
| SENSOR | |
|---|---|
| E.F.L. | |
| H. F.O.V. | |
| FNo. | |
| Max Dist. | |
| IRIS | |
| MOUNT | |
| RESOLUTION | |
| T.T.L.(mm) | |
| FEATURE | |
| MARK |
