CCL125029MPF
Low distortion wide angle 2.9mm 1/2.5″ 85° M12 mount lens F4.0 HD 5MP rectilinear scanning
CCL125029MPF Low distortion wide angle 2.9mm 1/2.5″ 85° M12 mount lens F4.0 HD 5MP rectilinear scanning
| IMAGE FORMAT | 1/2.5″ |
| FOCAL LENGTH | 2.9mm |
| F.O.V. | 102°(D) |
| 85°(H) | |
| 68°(V) | |
| RESOLUTION | 5 MP |
| DISTORTION | <-1% |
| APERTURE | F4.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.01m |
| T.T.L. | 20.9mm |

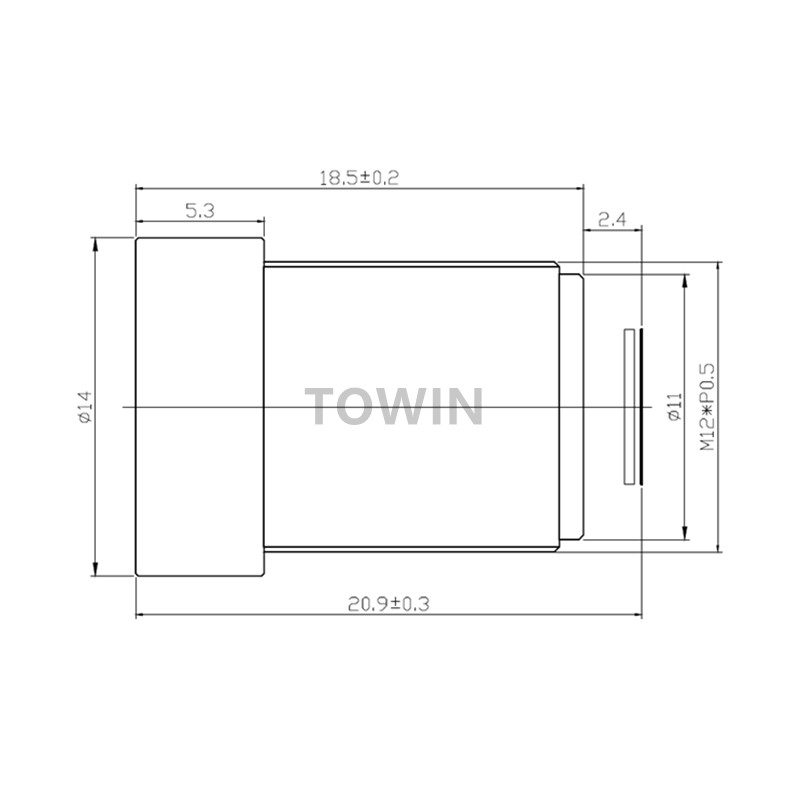

| DIMENSION | Φ14×18.5mm |
| LENS COMPOMEMT | 6E+IR cut |
CCL125029MPF Low distortion wide angle 2.9mm 85° M12 mount lens F4.0 HD 5MP rectilinear scanning
