S02713011625F

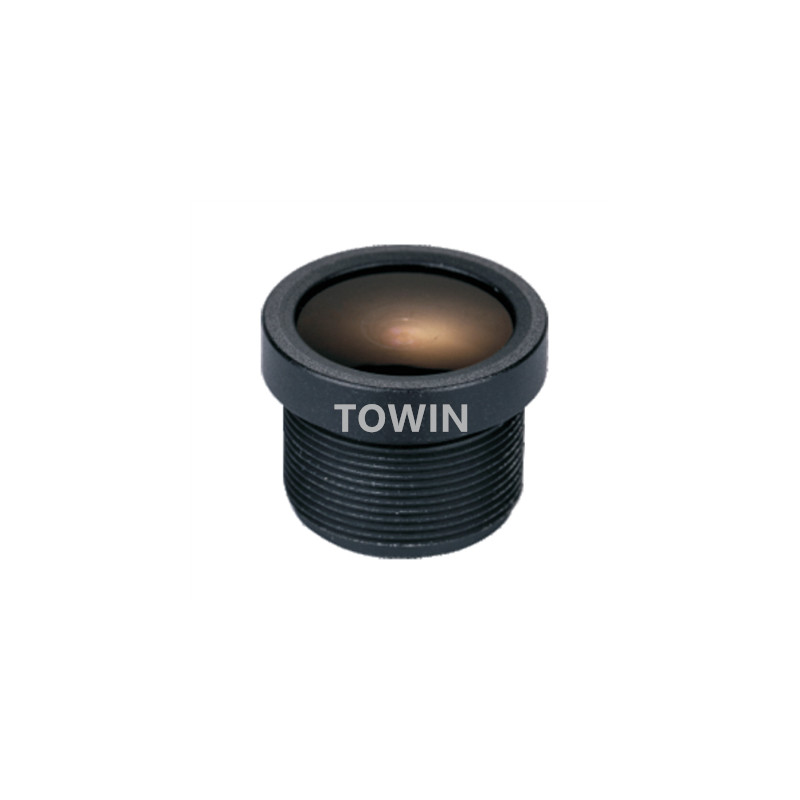

1/3″, 2.7mm, HFOV 116 degree wide angle automotive S mount lens, short T.T.L. 14.5mm.
S02713011625F is a 2.7mm Automotive S-Mount lens. It is designed for 1/3″ sensors, such as AR0330, OV4688, 3 Mega Pixel. And It is wide angle HFOV 116 with very short T.T.L. 14.5mm.
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 2.7mm |
| F.O.V. (AR0330) (16:9) | 144° |
| 116° | |
| 72° | |
| RESOLUTION | 3 MP |
| DISTORTION | <66% |
| APERTURE | F2.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 14.5mm |
| STRUCTURE | 5G+IRCF |

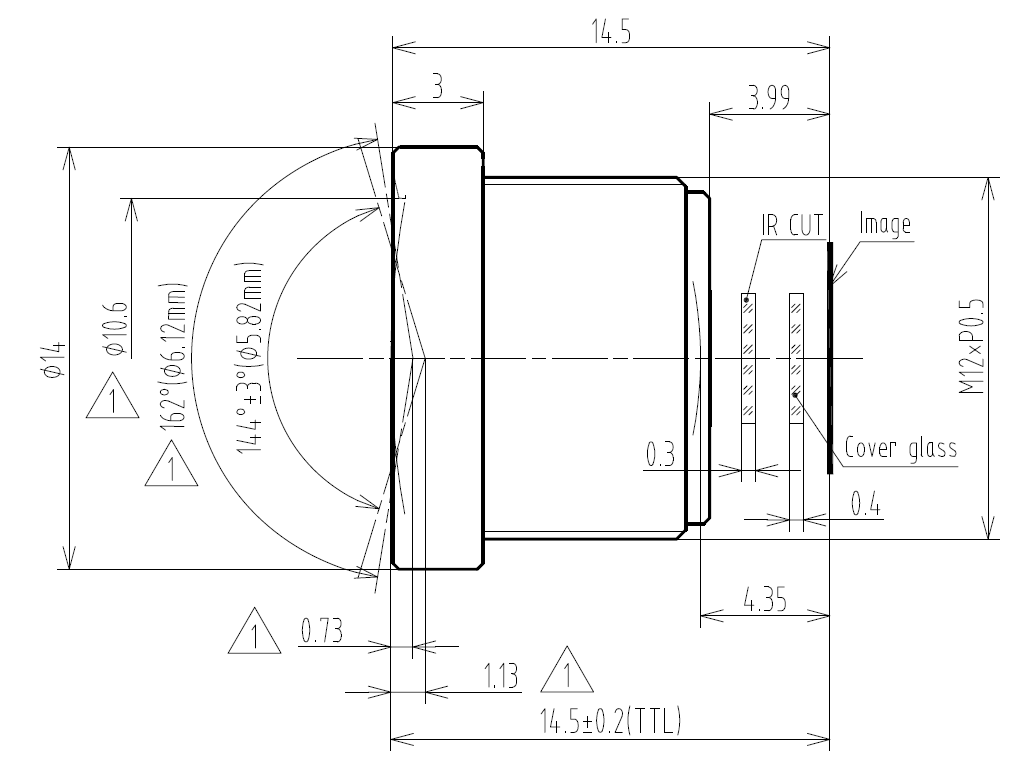

S02713011625F 2.7mm Automotive S-Mount lens-1
