Introduction

In the field of sports photography, Fisheye lens, with their unique ultra-wide-angle perspective, have become indispensable tools for documenting extreme sports, creating VR panoramic content, and producing cinematic content where immersive visual effects are crucial. By 2026, with breakthroughs in optical technology and AI algorithms, fisheye lenses will see a qualitative leap in terms of lightweight design, image stabilization, and distortion control capabilities.

Key Criteria: What Makes a Great Fisheye Lenses in 2026?

Selecting a professional-grade fisheye lenses for modern action cameras requires evaluating several core metrics beyond just a wide perspective:

• Optical Resolution (Megapixels): The lens must be able to resolve the pixel density of next-generation 8MP, 10MP, and 12MP sensors without introducing excessive chromatic aberration or softness.
• Field of View (FOV): A truly effective fisheye pushes the boundaries, offering perspectives from 170° up to a full 360° circle, allowing users to capture entire scenes in a single frame.
• Durability and Build Quality: For action-oriented use, robust construction, including waterproof ratings (IP standards) and high-quality metal/glass components, is essential to withstand harsh environments.
• Distortion & Image Quality: While barrel distortion is an inherent characteristic of a fisheye, professional optics manage edge-to-edge sharpness and minimize chromatic issues (fringing).

The Top 5 Fisheye Lenses for Action Cameras & Professional Imaging (2026 Update)

Here are our curated top five fisheye lenses from Towin, engineered with precise specs and specialized features to meet diverse professional demands—from UAV surveillance to industrial imaging. Each lens leverages unique optical design to deliver exceptional performance in its target scenario.

1. CCL123010MPF (The Ultra-Wide Immersion Master)

Core Specs

• Image Format: Φ4.4mm, 1/2.3″ | Focal Length: 1.0mm
• Field of View (FOV): 245° (Diagonal/Horizontal/Vertical) – ultra-panoramic coverage
• Resolution: 10 Megapixels | Aperture: F2.8
• Distortion Control: F-Θ distortion < -1.6% (industry-leading for extreme wide angles)
• Key Features: M12x0.5 mount, fixed iris, 0.1m minimum object distance (MOD), 8G+IR cut component, TTL=36.9mm

Standout Advantages

• Unmatched 245° full-angle coverage: Captures nearly 360° surrounding scenery without blind spots, delivering immersive visuals that other fisheyes can’t match.
• Low distortion + high resolution: Achieves <1.6% distortion—an engineering breakthrough for such a wide FOV—paired with 10MP clarity, ensuring edge-to-edge sharpness even in panoramic shots.
• IR cut integration: Enhances image contrast in low-light or night scenarios (ideal for CCTV and drone surveillance) by filtering out infrared interference.

Ideal Applications

• UAV/drone aerial photography: Captures sweeping landscape shots or 360° situational awareness for industrial inspections, adventure filming.
• Sports cameras: Perfect for extreme sports (surfing, skiing) to encapsulate the full dynamic environment around the athlete.
• CCTV surveillance: Provides comprehensive coverage for large spaces (warehouses, parking lots) with minimal camera placement.

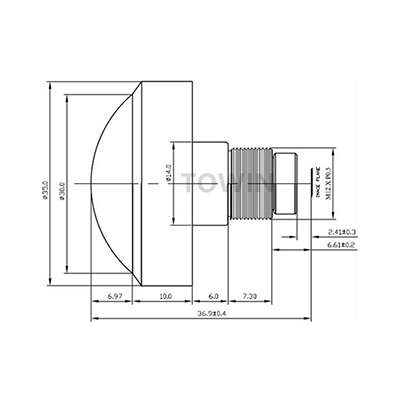

Fisheye CCTV HD lenses

2. S01512323020 (The Waterproof 8MP Workhorse)

Core Specs

• Image Size: Φ4.7mm | Sensor Compatibility: 1/2.3″
• Focal Length: 1.5mm | FOV: 230° (Diagonal/Horizontal/Vertical)
• Resolution: 8 Megapixels | Aperture: F2.0 (bright for low-light performance)
• Distortion: < -25% | Key Features: IP68 waterproof rating, M12x0.5 mount, fixed iris, manual focus, 6G construction, TTL=14.8mm

Standout Advantages

• IP68 waterproof durability: Withstands dust, submersion, and harsh weather—ideal for outdoor and automotive use without compromising performance.
• Fast F2.0 aperture: Gathers 40% more light than F2.8 lenses, ensuring clear, low-noise images in dim environments (e.g., night surveillance, rainy days).
• Versatile compatibility: 1/2.3″ sensor support and M12 mount fit most standard action camera PCBs and automotive imaging modules, making it a plug-and-play upgrade.

Ideal Applications

• Automotive imaging: Dashcams, 360° vehicle surround-view systems (ADAS support) – resistant to road debris, rain, and temperature fluctuations.
• Outdoor security surveillance: Outdoor cameras for homes, parks, or construction sites where exposure to water/dust is inevitable.
• Adventure action cameras: Waterproof setups for snorkeling, hiking, or off-roading—manual focus allows fine-tuning for dynamic scenes.

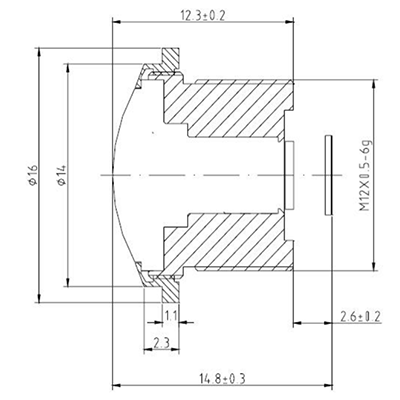

8-Megapixel M12 Fisheye lenses

3. CCL1301020MP (The 360° AR Panoramic Specialist)

Core Specs

• Image Size: Φ3.0mm, 1/3″ | Focal Length: 1.0mm
• FOV: 210° (Diagonal/Horizontal/Vertical) – optimized for panoramic stitching
• Resolution: 8 Megapixels | Aperture: F2.0
• Distortion: Optical distortion < -99% (fisheye-specific distortion for seamless stitching)
• Key Features: M12x0.5 mount, fixed iris, 0.1m MOD, 6G component, TTL=14.84mm

Standout Advantages

• 210° FOV for seamless panoramic stitching: Designed specifically for 360° AR content, its distortion profile ensures smooth merging of multiple lens feeds without visible seams.
• Balanced sharpness and light intake: 8MP resolution preserves fine details (critical for AR overlays) while F2.0 aperture delivers consistent exposure across the wide frame.
• Compact TTL (14.84mm): Fits into slim panoramic camera housings, ideal for multi-lens array setups.

Ideal Applications

• 360° AR panoramic cameras: Virtual tours (real estate, tourism), live event streaming, or industrial AR visualization (e.g., factory floor monitoring with digital overlays).
• Machine vision systems: Wide-angle coverage for automated inspection lines, where capturing the full scope of equipment/parts is essential.
• Compact action cams: Lightweight design suits handheld 360° cameras for vlogging or travel content.

Fisheye lens Φ3 210° HD M12 mount lens

4. S02106819024 (The Multi-Sensor Adaptive Performer)

Core Specs

• Image Format: Φ6.8mm (max) | Focal Length: 2.1mm
• Variable FOV: 190° (@Φ6.8mm) / 180° (@Φ6.3mm) / 95° (@Φ3.57mm) – adapts to different sensor sizes
• Resolution: 8 Megapixels | Aperture: F2.4
• Distortion: F-θ distortion < -10% (ultra-low for precise imaging)
• Key Features: M12/S-mount, fixed iris, 0.1m MOD, 6G structure, TTL=16.64mm

Standout Advantages

• Multi-sensor adaptability: Adjusts FOV across three sensor sizes, eliminating the need for multiple lenses—saves cost and inventory for manufacturers.
• Ultra-low distortion (<10%): Outperforms most fisheyes in clarity, making it suitable for professional imaging where distortion correction is minimal.
• 8MP high resolution: Maintains sharpness even at 190° FOV, bridging the gap between wide-angle coverage and detail capture.

Ideal Applications

• Security surveillance (flexible setups): Works with various camera sensors for indoor/outdoor use (offices, retail stores, corridors) – switch FOV based on space size.
• Professional imaging equipment: Industrial cameras, scientific imaging (e.g., environmental monitoring) where precise, low-distortion wide-angle shots are required.
• Compact gimbal systems: Balances wide coverage and image quality for content creators using portable gimbals for short films or documentaries.

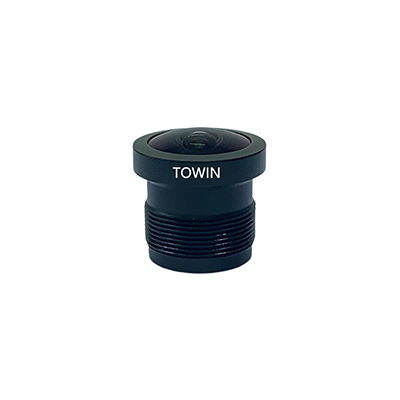

8-Megapixel Fisheye Lens

5. S01014019520F (The Rugged Industrial & Surveillance Pro)

Core Specs

• Image Format: Φ4.1mm | Sensor Compatibility: 1/4″
• Focal Length: 1.0mm | FOV: 200° (Diagonal) / 195° (Horizontal) / 151° (Vertical)
• Resolution: 1.3 Megapixels | Aperture: F2.0
• Distortion: < -125% | Key Features: IP69K waterproof rating, built-in IRCF (IR filter), -40°C~+85°C wide temperature range, 2G4P+IRCF structure, TTL=12.88mm

Standout Advantages

• Extreme durability: IP69K waterproof/dustproof (resists high-pressure washing) + wide temperature tolerance, surviving harsh industrial or outdoor conditions (deserts, cold regions).
• Built-in IRCF: Enhances night vision performance for CCTV by blocking IR light during the day and allowing it to pass at night—ensures consistent image quality 24/7.
• Reliable low-light performance: F2.0 aperture delivers bright images in dark environments (e.g., warehouses, night patrols) without sacrificing wide-angle coverage.

Ideal Applications

• Industrial surveillance: Factories, oil rigs, or construction sites—withstands high-pressure cleaning, extreme temperatures, and dusty conditions.
• Outdoor security: High-security areas (military bases, power plants) requiring 24/7 monitoring and resistance to vandalism/water damage.
• Specialized industrial imaging: Equipment monitoring in harsh environments (freezers, foundries) where standard lenses would fail.

waterproof IP69K M12 Fisheye CCTV lens

Optical Technology Trends (2026)​

2026’s fisheye lens innovation is deeply tied to optical engineering breakthroughs that directly solve the practical pain points of action and professional imaging. Towin’s R&D direction aligns with these industry trends, focusing on two core technological advancements that translate to tangible performance gains in real-world scenarios:​

1. High-Grade Optical Glass:

The Foundation of Stable Performance – While plastic optical elements reduce costs, they fall short in the extreme environments where action cameras and industrial imaging operate (e.g., -40°C cold snaps for skiing, +85°C industrial workshops). Towin prioritizes high-purity schott optical glass for key lens components, which offers superior thermal stability (minimizing image drift caused by temperature fluctuations) and light transmission (boosting low-light clarity by 15-20% compared to plastic). This glass-centric design is the backbone of our lenses’ edge-to-edge sharpness—such as the 10MP CCL123010MPF’s <1.6% distortion control—and ensures consistent performance across harsh conditions.​

2. Advanced Nano Anti-Reflection (AR) Coating:

Conquering Glare and Flare – Wide-angle fisheyes are inherently prone to lens flare and ghosting when shooting into bright light (e.g., sunlight during outdoor sports, stadium floodlights). Towin’s 6-layer nano AR coating technology addresses this by reducing light reflection to <0.1% per surface, effectively eliminating glare and preserving vivid colors even in backlit scenarios. For action photographers, this means clearer dynamic shots (e.g., surfing at sunset) without washed-out highlights; for surveillance users, it ensures accurate color reproduction for facial recognition and object tracking. This coating technology is standard in our top-tier lenses, including the waterproof S01512323020 and AR panoramic CCL1301020MP.​

Full Frame Fisheye Lens

Customization and B2B Solutions​

For B2B partners looking to differentiate their 2026 action cameras, surveillance systems, or industrial imaging products, Towin acts as more than a supplier—we are a collaborative optical engineering partner. Our customization services are tailored to align with your product roadmap, focusing on practicality, scalability, and performance alignment with your target scenarios:​

1. Full-Dimensional Optical & Mechanical Customization – Beyond standard parameters (focal length, FOV, aperture), we offer scenario-specific tweaks: sensor compatibility (1/2.3″, 1/3″, 1/4″, or custom sizes), environmental adaptability (IP68/IP69K waterproof ratings, wide temperature ranges), and mechanical fitting (M12/S-mount, custom TTL dimensions, or integrated IRCF/IR cut components). For example, if you need a 200° FOV lens for a mini drone with strict weight limits, we can optimize the glass structure to reduce weight while maintaining 8MP resolution.​

2. End-to-End R&D & Production Support – Our service covers the entire product lifecycle: (1) Demand analysis (aligning lens specs with your use cases, e.g., ADAS automotive imaging or 360° VR cameras); (2) Rapid prototyping (delivering functional samples within 4-6 weeks for testing); (3) Mass production (scalable manufacturing with strict quality control, ensuring consistent performance across 10k+ units); (4) Technical documentation (providing detailed mechanical drawings, optical performance reports, and integration guides for your PCB/housing design).​

3. Synergy with 2026 Market Trends – We proactively integrate emerging needs into customization, such as AI-driven distortion correction compatibility (optimizing lens distortion profiles for seamless software de-warping) and low-power consumption design (for battery-powered action cameras). From extreme sports cams to industrial surveillance, we craft optical solutions that make your 2026 market value proposition shine.

FAQs

Q1: Can these fisheye lenses support 4K or 8K resolution cameras?

A: Yes. All five lenses listed in our 2026 guide, such as the CCL1301020MP, are engineered with high-grade optical glass to support high-resolution sensors. We provide 5MP to 20MP options, guaranteeing razor-sharp 8K images from center to edge.

Q2: What is the difference between “Circular Fisheye” and “Full-frame Fisheye”?

A: A Circular Fisheye (like our S01014019520F) produces an image that appears as a circle within the frame, offering an ultra-wide FOV up to 195°-245°. A Full-frame Fisheye covers the entire rectangular sensor, providing a wide-angle view without black corners. The choice depends on whether you prioritize maximum FOV or a standard frame filling.

Q3: Are these lenses compatible with GoPro or other standard action cameras?

A: Most of our lenses use the industry-standard M12 mount (S-Mount). Many action cams use M12 threads, but some brands like GoPro need a modified rib or adapter for lens replacement. For B2B clients, we provide detailed mechanical drawings to ensure seamless integration with your custom PCB or housing.

Q4: Do you offer OEM/ODM services for specific FOV or mounting requirements?

A: Absolutely. TowinLens specializes in customized optical solutions. Whether you need a specific focal length, a wider aperture for low-light performance, or a waterproof mount for underwater action cams, our engineering team can provide a tailor-made solution to fit your 2026 product roadmap.

Fisheye M12-mount F2.0 CCTV Lens

Conclusion

Fisheye lenses are not just tools; they are the visual language of sports photographers. Choosing the right fisheye lens is a critical decision that impacts the final image quality and creative potential of sports cameras.
