Telephoto vs. Wide-Angle Lens: FOV Optimization Guide
Comparing Glass vs. Plastic Lenses
03/22/2026
Table of Contents
Key Takeaways
- FOV (Field of View) defines the observable area a lens can capture; wide‑angle = large FOV, telephoto = small FOV.
- Use our Towin FOV Calculator to get accurate horizontal/vertical FOV in 1 click: FOV Calculator
- Wide‑angle lenses excel at surveillance, automotive, and panoramic scenes; telephoto lenses suit long‑distance recognition & industrial detection.
- FOV optimization focuses on distortion control, resolution, sensor matching, IR correction, and structure stability.
- Towin provides custom FOV design and lens solutions for Telephoto vs. Wide-Angle Lens, tailored for global buyers.
What Is FOV (Field of View) & Why It Matters for Optical Lenses
FOV (Field of View) is a key factor when comparing Telephoto vs. Wide-Angle Lens. This guide helps you understand their differences, optimize FOV, and choose the right lens for your application.
FOV directly determines:
- Monitoring coverage and effective range
- Image distortion level
- Compatibility with image sensors
- Real‑world application performance
- Installation flexibility
Wide‑Angle Lenses: Large FOV Characteristics & Applications
Wide‑angle lenses deliver an extra‑large field of view, typically ≥80° (horizontal FOV).
Key Features
- Ultra‑wide viewing range
- Short focal length
- Compact and lightweight structure
- Excellent for small spaces
- Low‑light friendly with high transmittance
Typical Applications
- CCTV & IP surveillance cameras
- Automotive surround‑view systems
- Video conference cameras
- Smart home devices
- Panoramic imaging
- Robot vision & drone cameras
Towin Wide‑Angle Lens Recommendations
- M300617513730 Wide‑Angle Lens
- CCL117032MPCS Low‑Distortion Wide Lens
- S06023009024F High‑Resolution Wide Lens
1/2.7″ 4.1mm 90° wide-angle lens
Telephoto Lenses: Narrow FOV Characteristics & Applications
Telephoto lenses use a narrow FOV (usually ≤30°) to capture distant targets with high clarity.
Key Features
- Long focal length
- Narrow, precise viewing area
- Strong detail capture ability
- Extremely low distortion
- Stable long‑distance imaging
Typical Applications
- Intelligent traffic systems (ITS)
- Long‑distance security monitoring
- Machine vision inspection
- High‑precision industrial detection
- Fauna observation
Towin Telephoto Lens Recommendations
- C‑Mount Industrial MV Lenses
- CS‑Mount Vari‑Focal Lenses
- Long‑Distance Surveillance Lenses

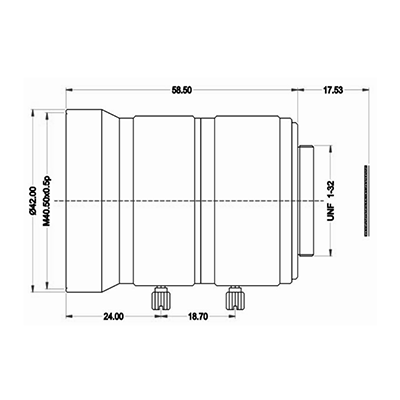

Telephoto Lens
Use Towin FOV Calculator for Accurate FOV Calculation
Accurate FOV calculation is the foundation of correct lens selection. Use our 100% free online FOV calculator: 👉 towinlens.com/fov-calculator.html
What You Need to Input
- Sensor size (1/2.8″, 1/3″, 1/2″, 1/1.8″, etc.)
- Focal length (mm)
- Working distance (m)
What You Will Get
- Exact theoretical horizontal FOV
- Matching Towin lens recommendations
- Real‑world deviation within ±5°
FOV Calculation Example Table
| Sensor Size | Focal Length | Working Distance | Calculated H‑FOV | Matching TOWIN Lens |
| 1/2.8″ | 4mm | 3m | 77.3° | CCL12044MPF |
| 1/3″ | 2.8mm | 2m | 110° | M300617513730 |
| 1/2.7″ | 16mm | 15m | 22° | C‑Mount Telephoto |
| 1/1.8″ | 25mm | 20m | 15° | ITS Traffic Lens |
Telephoto vs. Wide-Angle Lens: Core FOV Comparison
| Item | Wide‑Angle Lens | Telephoto Lens |
| FOV Range | Large (60°–180°+) | Small (10°–40°) |
| Focal Length | Short (1.6mm–6mm) | Long (12mm–100mm+) |
| Distortion | Barrel distortion | Almost zero distortion |
| Main Purpose | Large‑area monitoring | Long‑distance capture |
| Common Mounts | M12 / S‑Mount / CS | C‑Mount / CS‑Mount |
| Typical Products | Fisheye, Low Distortion | MV, ITS, Vari‑Focal |
FOV Optimization for Wide‑Angle Lenses
Core Goals
- Maximize effective FOV
- Control distortion to <2% (low‑distortion series)
- Improve edge illumination and resolution
- Ensure IR co‑focus for day/night use
Optimization Methods
- Aspherical lens structure design
- High‑refractive index optical glass
- Multi‑layer broadband coating
- Miniaturized M12 board lens structure
- Precision optical assembly
FOV Optimization for Telephoto Lenses
Core Goals
- Maintain stable narrow FOV
- Reduce chromatic aberration & spherical aberration
- Enhance long‑distance clarity
- Stable zoom and focus mechanism
Optimization Methods
- Extra‑low dispersion (ED) glass
- Telecentric optical design
- High‑transmittance coating
- Rugged metal structure
- Industrial C/CS‑Mount standard
FOV Calculation
How to Choose Between Telephoto vs. Wide-Angle Lens Based on FOV
Choose Wide‑Angle Lenses If
- You need large‑area monitoring
- Installation space is limited
- Application: automotive, smart home, panoramic
- FOV requirement ≥70°
Choose Telephoto Lenses If
- You need long‑distance recognition
- Application: traffic, industrial inspection
- Need high detail & ultra‑low distortion
- FOV requirement ≤40°
Quick Lens Selection Table
| Scenario | Recommended Lens Type | FOV Range | Typical Mount |
| Indoor Security | Wide‑Angle | 80–110° | M12 / CS |
| Outdoor Panoramic | Fisheye | 120–180° | M12 |
| Traffic Monitoring | Telephoto | 15–30° | C‑Mount |
| Machine Vision | Telephoto / MV | 10–25° | C‑Mount |
| Automotive Surround View | Low‑Distortion Wide | 100–140° | M12 |
Why Towin for FOV‑Optimized Lenses
- Professional optical lens manufacturer in China
- Full series: M12, C‑Mount, CS‑Mount
- Fisheye lens, wide‑angle lens, low‑distortion lens, telephoto lens, TOF lens
- Custom FOV design & ODM service
- Free professional FOV calculation tool
- Fast sampling & mass production
- Global export with stable quality
Get Your Ideal FOV Lens Today
Calculate your exact FOV first with our free tool, then choose the best option for Telephoto vs. Wide-Angle Lens from Towin.
📩 Get Custom Quote: info@towin-elec.com
