S06023009024F

112° Wide-angle 5MP IR corrected 2/3″ M12/S-mount lens, 6mm focal length, F2.4 aperture CCTV lens

Category: Wide Angle Board Lens Tag: wide-angle lens

Description
Additional information

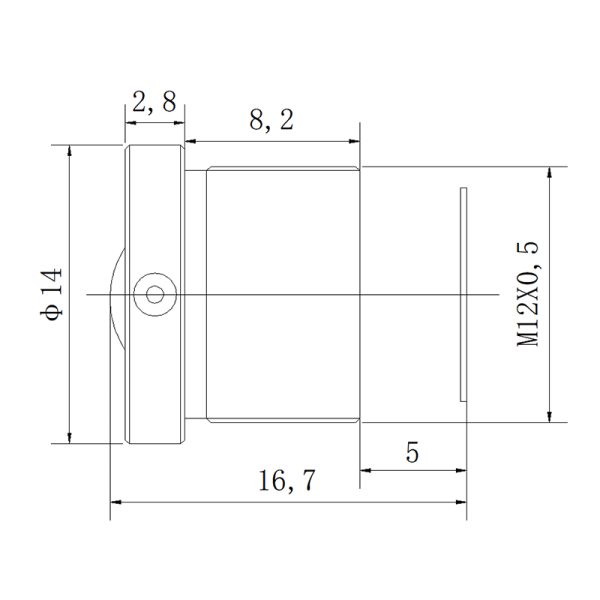

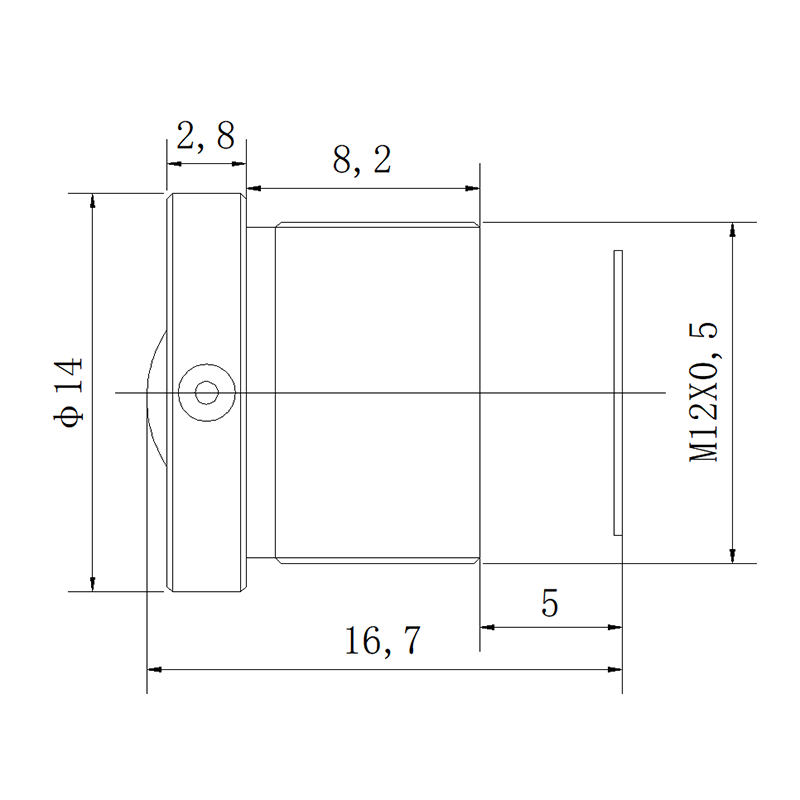

S06023009024F-112° Wide-angle 5MP IR corrected 2/3″ M12/S-mount lens, 6mm focal length, F2.4 aperture CCTV lens

IMAGE FORMAT	2/3″
FOCAL LENGTH	6mm
F.O.V.	112°(D)
	90°(H)
	69°(V)
RESOLUTION	5 MP
TV DISTORTION	<14%
APERTURE	F2.4
MOUNT	M12x0.5
IRIS	Fixed
M.O.D.	0.2m
T.T.L.	16.7mm
CONSTRUCTION	6G+IRCF

Download Specs Sheet

Online contact

SENSOR	2/3"
E.F.L.	6mm
H. F.O.V.	90°
RESOLUTION	5MP
FNo.	2.4
FEATURE	CCTV, Wide Angle
IRIS	Fixed
Max Dist.	14%
MOUNT	M12x0.5
T.T.L.(mm)	16.65
