Low Distortion Lens – S07011009228

S07011009228-102° 20MP Low Distortion Wide angle manual focus fixed-iris fixed-zoom M16X0.5 mount lens

7mm 20MP M16 Low Distortion Wide Angle Machine Vision Lens

This 7mm 20MP M16 wide angle lens is designed for high-resolution industrial imaging systems that require a broad field of view with exceptionally low geometric distortion. Supporting a 1″ image format, 102° diagonal FOV, 20MP resolution, and less than 2.9% distortion, it provides a strong combination of image detail, scene coverage, and optical precision for machine vision and industrial inspection applications.

With an M16×0.5 mount, F2.8 fixed aperture, manual focus, and a 3.97mm back focal length, this fixed focal lens is well suited to demanding compact vision systems where high-resolution imaging and controlled distortion are essential.

Product Core Highlights

• 20MP high-resolution imaging — Supports detailed image capture for demanding industrial inspection and machine vision systems.
• <2.9% low distortion — Maintains excellent geometric control across a wide 102° diagonal field of view.
• 1″ sensor coverage — Designed to take advantage of larger image sensors while maintaining broad scene coverage.
• 102° diagonal wide FOV — Captures a large working area without relying on fisheye-level optical distortion.

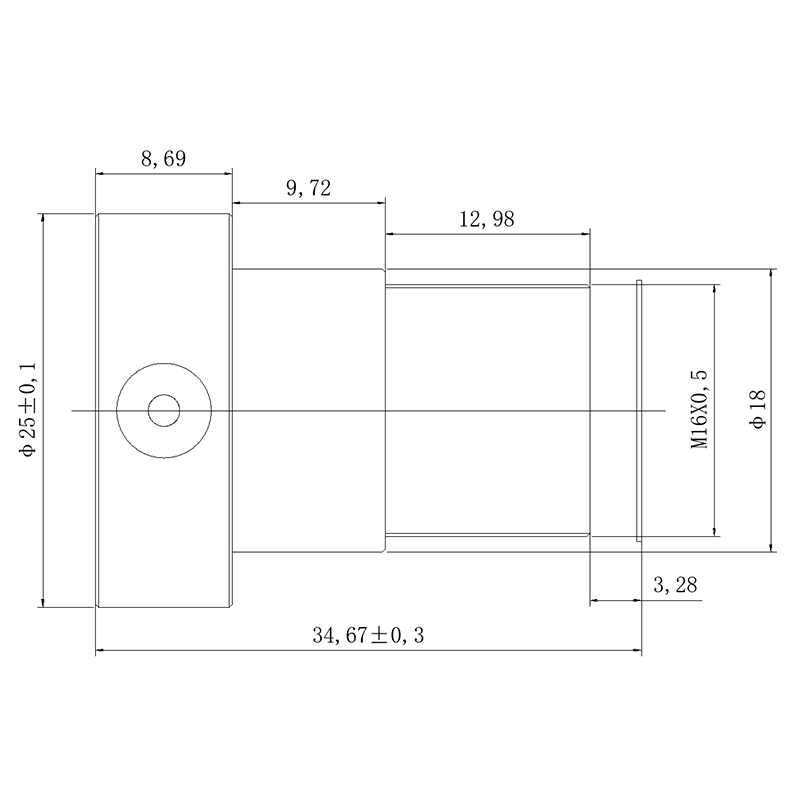

• M16×0.5 mechanical interface — Provides a compact mounting solution for specialized industrial and embedded vision equipment.
• 6G3P optical construction — Provides a multi-element optical configuration for high-resolution imaging performance.

Low Distortion Lens Applications

This 7mm M16 lens is designed for industrial vision systems where high resolution and low distortion must be achieved together with a wide field of view. The combination of 20MP resolution and <2.9% distortion makes it particularly suitable for applications that need to inspect or measure multiple features across a relatively large working area while preserving accurate image geometry.

Designed for high-resolution machine vision inspection, this lens can be integrated into industrial cameras used for large-area surface inspection, electronic component inspection, dimensional checking, printed circuit board inspection, packaging inspection, and automated quality control. Its 1″ image format and 20MP resolution allow the camera system to capture fine details while covering a wider portion of the inspection area.

The low distortion performance is especially valuable when the image is used for geometric analysis, object positioning, edge detection, pattern recognition, or measurement-related vision tasks. Compared with conventional wide angle optics, the <2.9% distortion specification helps reduce image deformation toward the edges of the frame.

The 0.2m minimum object distance also supports relatively close-range inspection setups, making the lens practical for compact production-line vision stations where the camera has limited working distance.

For high-resolution industrial imaging projects, this lens can be evaluated alongside TOWIN’s Industrial Lens solutions and Machine Vision applications. Engineers looking specifically for controlled geometric performance can also explore TOWIN’s Low Distortion Lenses range.

Compatible devices and systems include:

• 20MP industrial cameras
• High-resolution machine vision cameras
• Automated optical inspection systems
• PCB and electronics inspection equipment
• Industrial surface inspection cameras
• Dimensional inspection systems
• Automated quality-control equipment
• High-resolution embedded vision systems

The manual focus configuration allows the optical system to be adjusted during camera integration and installation, while the fixed iris provides a consistent F2.8 aperture for applications operating under controlled or relatively stable lighting conditions.

For selecting the appropriate sensor format, focal length, and field of view, engineers can refer to TOWIN’s Lens Selection Guide and Sensor Guide.

Frequently Asked Questions

Q: What type of lens is the 7mm model?
A: It is a 7mm M16 fixed focal wide angle lens designed for 1″ sensors, offering 20MP resolution, 102° diagonal FOV, and less than 2.9% distortion.

Q: Is this a low distortion lens?
A: Yes. With distortion below 2.9%, this lens provides significantly controlled geometric deformation for a wide angle design, making it suitable for machine vision and industrial inspection applications where image geometry matters.

Q: Is the 7mm lens suitable for 20MP cameras?
A: Yes. The lens is specified for 20MP imaging and a 1″ image format, making it suitable for high-resolution industrial cameras and machine vision systems requiring detailed image capture.

Q: What field of view does the lens provide?
A: The lens provides a 102° diagonal, 92° horizontal, and 68° vertical field of view on its specified 1″ image format.

Q: Is this lens suitable for precision machine vision?
A: Yes. Its 20MP resolution and <2.9% distortion make it suitable for high-resolution inspection, positioning, measurement-support imaging, and other machine vision applications where controlled image geometry is important.

Q: What is the minimum object distance?
A: The minimum object distance is 0.2m, allowing the lens to be used for relatively close-range industrial imaging and inspection setups.

Q: What mount does this industrial lens use?
A: The lens uses an M16×0.5 mount, making it suitable for specialized industrial cameras and compact vision systems designed around the M16 interface.

Q: Can TOWIN customize this 20MP industrial lens?
A: TOWIN can support customized optical solutions based on sensor format, focal length, FOV, distortion requirements, resolution, mechanical dimensions, mounting interface, and application conditions.
