Wide Angle Lens – S01214014425F69

S01214014425F69 is Wide-angle CCTV lens with with Built-In IR Filter, 1/4″ format, M12/S-Mount, 160° diagonal field of view, IP69K Waterproof Automotive Lens.

1.2mm M12 Wide Angle Automotive Lens for 160° Vehicle Imaging

This 1.2mm M12 wide angle automotive lens is designed for vehicle camera systems requiring broad scene coverage in a compact optical package. With a 160° diagonal FOV on the AR0144 sensor, megapixel resolution, F2.5 aperture, and IP69K protection, it is well suited for demanding automotive imaging applications.

Product Highlights at a Glance

• 160° diagonal FOV for broad vehicle surroundings and wide-angle imaging
• 1.2mm focal length provides extensive coverage from a compact lens package
• Megapixel performance supports detailed automotive camera imaging
• IP69K protection for demanding exterior vehicle camera environments

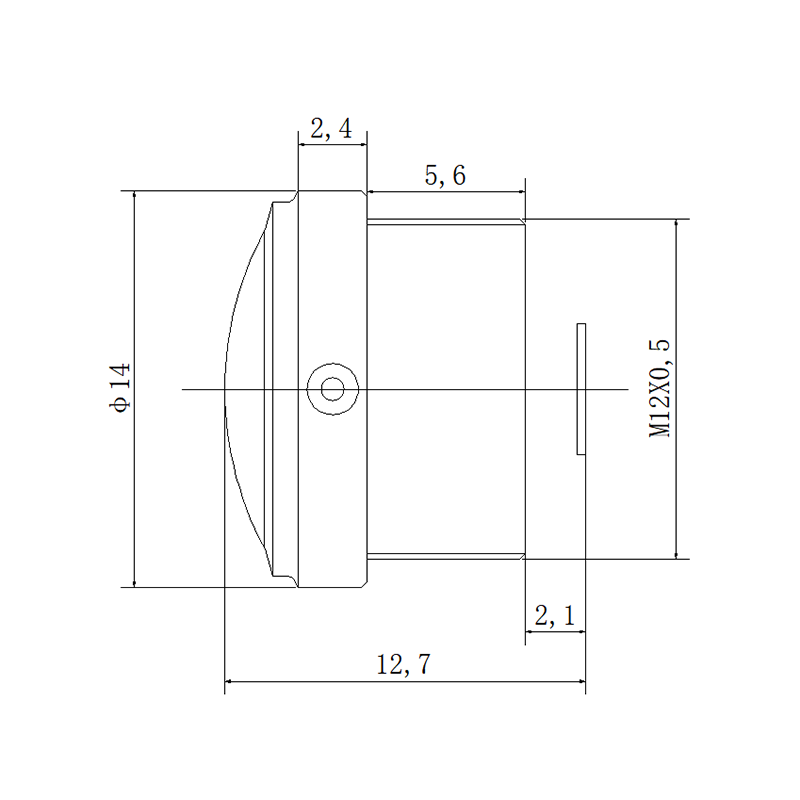

• M12 × 0.5 compact mount simplifies integration into small automotive camera modules

1.2mm M12 Wide Angle Lens Applications

Core Automotive Applications

This 1.2mm lens combines an extremely short focal length with a 160° diagonal field of view, allowing a compact camera module to capture a large surrounding area. Its 0.1m minimum object distance is also useful for applications where nearby objects need to remain within the captured scene.

Designed for wide-angle automotive camera applications, the lens is suitable for vehicle imaging systems where broad coverage and compact optical integration are important.

Typical applications include:

• Automotive surround-view cameras for capturing wide areas around the vehicle
• Parking assistance cameras where nearby objects and vehicle surroundings need to be monitored
• Front and rear wide-angle cameras for expanded scene coverage
• Side-view and corner-view cameras for monitoring areas close to the vehicle
• Vehicle safety and monitoring cameras requiring compact wide-angle optics
• Commercial vehicle camera systems requiring robust outdoor optical protection

The IP69K construction makes this lens particularly suitable for camera modules installed in locations exposed to water, dust, cleaning processes, and other demanding environmental conditions.

For vehicle vision system development, this lens can be used with TOWIN’s ADAS solutions, particularly where wide-area image acquisition is required.

Compatible Devices

The lens can be integrated with:

• AR0144-based automotive camera modules
• 1/4″ megapixel image sensors
• Compact M12 camera assemblies
• Automotive surround-view cameras
• Parking assistance camera modules
• Front, rear, side, and corner-view cameras
• Vehicle-mounted monitoring systems

The IP69K rating provides a high level of environmental protection for appropriately sealed camera assemblies used in demanding vehicle locations.

For additional compact automotive optics, see the M12 lens product range. When selecting an alternative focal length, sensor format, or viewing angle, TOWIN’s FOV Calculator can help compare different optical configurations.

Frequently Asked Questions

Q: What is the field of view of this 1.2mm M12 automotive lens?
A: When used with the AR0144 sensor, the lens provides a 160° diagonal FOV, 144° horizontal FOV, and 91° vertical FOV.

Q: Is this lens suitable for automotive applications?
A: Yes. It is designed for wide-angle vehicle imaging and combines a compact M12 mount, megapixel performance, broad FOV, and IP69K environmental protection.

Q: What sensor is this lens designed for?
A: The specified optical performance is based on the AR0144 sensor in a 1/4″ image format.

Q: Is this a fisheye lens?
A: This lens is positioned as a wide-angle automotive lens rather than a fisheye lens. Its 160° diagonal FOV provides very broad coverage while the specified TV distortion is below -19%.

Q: Does this lens have low distortion?
A: No. The specified TV distortion is below -19%, so the optical design prioritizes wide scene coverage rather than low-distortion imaging.

Q: What mount does this lens use?
A: It uses an M12 × 0.5 mount, which is suitable for compact automotive and embedded camera modules.

Q: What is the minimum object distance of the lens?
A: The minimum object distance is 0.1m, allowing the lens to capture relatively close objects in wide-angle vehicle imaging applications.

Q: Can this lens be used in exposed vehicle camera positions?
A: The lens has an IP69K waterproof rating, making it suitable for appropriately sealed automotive camera modules exposed to water, dust, and demanding cleaning or environmental conditions.
