Low Distortion Lens – S06012705318F

S06012705318F is 6.0mm High-precision Low Distortion Wide Angle Lens, 60° Low F-number S-Mount Lens (F1.4), 4-megapixel resolution CCTV lens.

6mm 4MP M12 Low Distortion Lens

This 6mm 4MP M12 low distortion lens is designed for compact imaging systems that require a controlled field of view and accurate image reproduction. With a 60° diagonal FOV, 53° horizontal FOV, and TV distortion below -4.9%, it provides a more balanced optical profile than ultra-wide M12 lenses.

Designed for a maximum image circle of Φ6.8mm and compatible with the OV4689 1/3″ sensor, this fixed focal lens combines 4MP resolution, F1.8 aperture, and M12×0.5 mounting in a compact optical assembly. Its controlled distortion makes it particularly suitable for industrial inspection, embedded machine vision, intelligent monitoring, and applications where excessive image deformation can affect visual analysis.

For compact optical systems requiring improved geometric control, this lens can be evaluated within TOWIN’s M12 Lenses portfolio.

M12 Low Distortion Lens Core Highlights

• Low-Distortion Imaging — TV distortion below -4.9% helps maintain more natural object geometry across the image.
• 4MP Resolution — Provides detailed image capture for compact industrial and embedded vision systems.
• 6mm Fixed Focal Length — Offers a moderate field of view suitable for targeted imaging rather than extreme wide-area coverage.
• F1.8 Aperture — Provides strong light-gathering capability for indoor and controlled industrial imaging environments.
• Compact M12×0.5 Mount — Simplifies integration into embedded cameras and space-constrained machine vision equipment.

M12 Low Distortion Lens Applications

Core Application Scenes

This 6mm M12 low distortion lens is designed for imaging tasks where the camera needs a more controlled perspective than an ultra-wide lens can provide. Its 53° horizontal FOV gives the camera sufficient scene coverage while the <-4.9% TV distortion helps reduce visible geometric deformation.

For industrial inspection and embedded machine vision, controlled distortion can be particularly useful when cameras need to observe components, labels, product surfaces, or equipment features without excessive bending of straight edges. The 4MP resolution provides sufficient detail for many detection and measurement-oriented imaging tasks.

In smart security, the lens can be used where a moderate viewing angle is preferred over an ultra-wide surveillance perspective. The 6mm focal length allows the camera to concentrate more strongly on a defined monitoring area while maintaining useful image detail.

For robotics vision, this lens can serve as a compact vision module for targeted object observation, robotic work areas, and equipment interaction. Its moderate FOV can help avoid the excessive perspective distortion associated with very wide-angle lenses when the robot needs to visually analyze a defined workspace.

The lens is also suitable for embedded industrial cameras and inspection modules where the optical assembly must remain compact while providing controlled image geometry.

Designed for low-distortion industrial inspection, embedded machine vision, and targeted monitoring applications.

Compatible Device List

• 1/3″ OV4689 Camera Modules: Specifically specified with the OV4689 sensor for the stated FOV performance.
• 4MP Embedded Cameras: Suitable for compact camera modules requiring 4MP imaging and a controlled field of view.
• Industrial Inspection Cameras: Can be integrated into compact inspection equipment for product, component, and equipment monitoring.
• Machine Vision Modules: Suitable for embedded machine vision systems where moderate FOV and controlled distortion are important.
• Smart Security Cameras: Appropriate for indoor or targeted surveillance systems that do not require ultra-wide coverage.
• Robotics Vision Modules: Suitable for robotic systems that need to observe a defined workspace with less geometric deformation.
• OEM Camera Assemblies: The M12×0.5 interface supports integration into customized camera housings and embedded optical systems.

For engineers evaluating sensor and lens compatibility, TOWIN’s Sensor Guide can help with the relationship between sensor format and optical image coverage.

Why Low Distortion Matters for Machine Vision

In machine vision applications, excessive optical distortion can change the apparent shape and position of objects near the edges of an image. This can complicate visual measurement, alignment, dimensional inspection, and image-based positioning.

With a specified TV distortion below -4.9%, this lens provides a more controlled optical geometry than many extreme wide-angle M12 designs. This makes it a better fit for applications where image geometry is relevant but a large telephoto lens or larger C-mount optical assembly is impractical.

The lens should not, however, be considered a metrology-grade zero-distortion lens without application-specific testing. Actual measurement accuracy depends on the complete camera system, calibration, sensor characteristics, working distance, and image-processing method.

For further information about optical distortion and lens selection, see TOWIN’s Distortion Guide.

Optical Performance and Integration

The 6mm fixed focal length provides a more targeted viewing area than the 3mm-class wide-angle M12 lenses commonly used for broad scene coverage. This makes it suitable when the camera should concentrate on a particular object, work area, or monitoring zone.

The F1.8 aperture provides useful light-gathering capability while keeping the optical configuration compact. This can benefit indoor industrial environments, equipment monitoring areas, and embedded vision systems with controlled or moderate illumination.

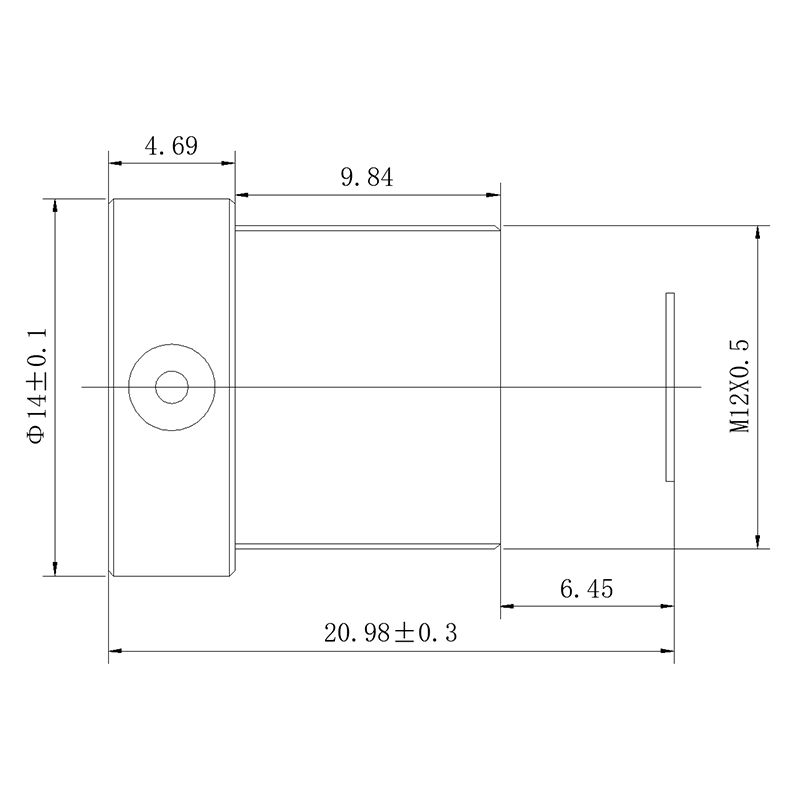

The lens has a 20.98mm T.T.L. and M12×0.5 mounting interface. Mechanical clearance, sensor position, and the required back focal configuration should be verified during camera integration.

For optical system planning, the Optical Design section provides additional information for engineers evaluating lens construction and imaging performance.

Frequently Asked Questions

Q: What type of lens is the 6mm 4MP M12 lens?

A: It is a fixed focal M12 low distortion lens designed for compact industrial, machine vision, security, and embedded imaging applications. It provides a 60° diagonal FOV and TV distortion below -4.9%.

Q: What sensor is this lens designed for?

A: The specified FOV is provided for a 1/3″ OV4689 sensor. The lens has a maximum image format of Φ6.8mm, so the actual camera configuration should be verified before integration.

Q: What is the field of view of the 6mm M12 lens?

A: With the specified 1/3″ OV4689 configuration, the lens provides a 60° diagonal, 53° horizontal, and 28° vertical field of view.

Q: Is this a low distortion lens?

A: Yes. The specified TV distortion is below -4.9%, making it appropriate for applications where controlled image geometry is important. However, precision metrology applications should still validate the complete camera system through calibration and testing.

Q: Is this lens suitable for machine vision?

A: Yes. Its 4MP resolution, controlled distortion, 6mm focal length, and compact M12 mount make it suitable for selected embedded machine vision and industrial inspection applications.

Q: Is the 6mm M12 lens suitable for surveillance cameras?

A: Yes. The moderate 53° horizontal FOV makes it suitable for targeted indoor monitoring and compact security cameras where a more focused viewing area is preferred over an ultra-wide scene.

Q: What does the F1.8 aperture provide?

A: The F1.8 aperture provides relatively strong light-gathering capability for a compact M12 lens, supporting useful image brightness in indoor and moderately illuminated environments.

Q: Can TOWIN customize this 6mm M12 lens?

A: TOWIN can evaluate OEM/ODM requirements based on sensor format, FOV, distortion, mechanical dimensions, working distance, optical performance, and environmental conditions. Customized requirements can be discussed through the Contact page.
