CCL140205MPF
2.05mm low distortion wide-angle lens, F2.6 M7X0.35 mount lens, 1/4″ 5-megapixel CCTV lens.

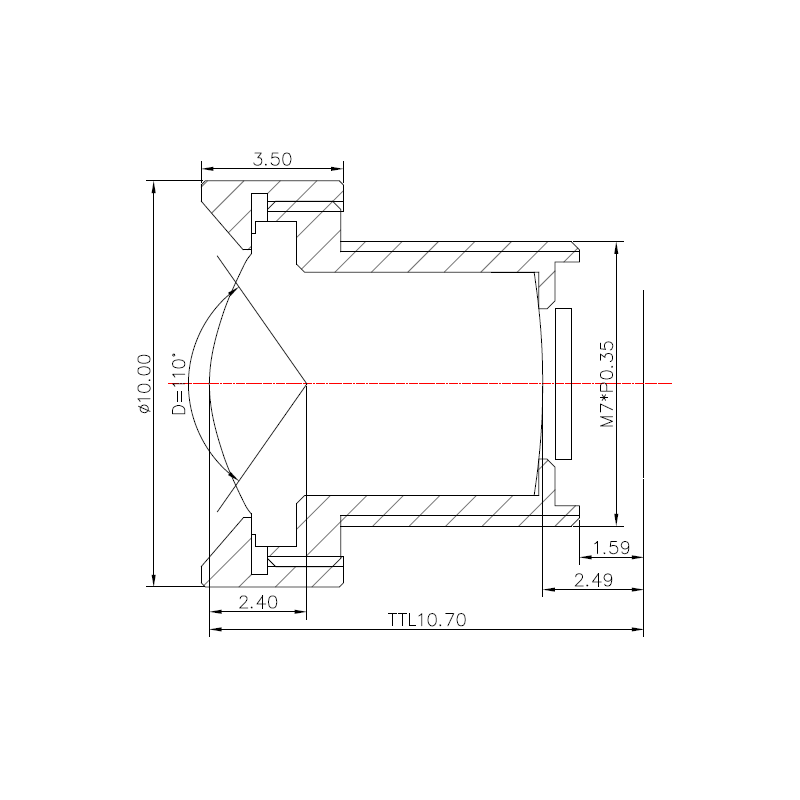

CCL140205MPF is 2.05mm High-Resolution low distortion wide-angle lens with Built-In Filter, F2.6 M7X0.35 mount lens, 1/4″ 5-megapixel CCTV lens.
| IMAGE FORMAT | 1/4″ |
| FOCAL LENGTH | 2.05mm |
| F.O.V.(OV5640) | 110°(D) |
| 92°(H) | |
| 71°(V) | |
| TV DISTORTION | -6% |
| RESOLUTION | 5MP |
| APERTURE | F2.6 |
| MOUNT | M7X0.35 |
| IRIS | Fixed |
| FOCUS | Manual |
| ZOOM | Fixed |
| B.F.L. | 2.49mm |
| M.O.D. | 0.2m |
| CONSTRUCTION | 2G2P+IR cut filter |
