Low Distortion Lens – CCL121640MP

CCL121640MP is 16mm Low-distortion 5-Megapixel CCTV lens IR corrected 1/2″ & 1/1.8″ & 2/3″ Φ14x16mm M12 lens 29°(D) F4.0 security surveillance.

16mm M12 Low Distortion Lens

This 5MP M12 IR corrected lens features a 16mm fixed focal length, <0.3% distortion, and compatibility with 1/2″, 1/1.8″, and 2/3″ image formats. Its compact Φ14 × 16mm design, M12 × 0.5 mount, and IR-corrected optical configuration make it suitable for compact machine vision and industrial imaging systems requiring stable image quality.

Sensor Compatibility & Field of View

• 1/2″ Sensor: 29° diagonal, 23° horizontal, and 17.5° vertical FOV.
• 1/1.8″ Sensor: Compatible with the specified image format for higher-resolution embedded imaging applications.
• 2/3″ Sensor: Supports a larger image format, providing additional flexibility for industrial camera integration.
• The 16mm focal length provides a relatively controlled viewing angle for applications where the target area needs to be isolated from unnecessary background information.
• Engineers can use the FOV Calculator to evaluate image coverage according to sensor size and working distance.

16mm M12 Low Distortion Lens Core Highlights

• 5MP High Resolution: Provides detailed imaging for industrial and embedded vision systems.
• <0.3% Low Distortion: Helps preserve image geometry for inspection and measurement tasks.
• IR Corrected Optical Design: Supports stable focus and imaging performance across visible and near-infrared wavelengths.
• Compact Φ14 × 16mm Housing: Designed for cameras with strict space constraints.
• 16mm Fixed Focal Length: Provides a controlled field of view for targeted imaging.

16mm M12 Low Distortion Lens Applications

Core Application Scenes

This 5MP 16mm M12 IR corrected lens is designed for compact vision systems where optical performance, mechanical size, and wavelength stability all need to be considered. The <0.3% distortion specification helps maintain accurate object geometry, while the IR-corrected optical design is beneficial in systems that operate with both visible and near-infrared illumination.

For industrial inspection, the 16mm focal length provides a relatively concentrated field of view, making the lens suitable for inspecting individual components, assemblies, labels, connectors, electronic parts, and other defined target areas rather than large scenes.

The compact Φ14 × 16mm body is particularly useful for embedded cameras installed inside machinery, inspection fixtures, access-control equipment, and other devices where a larger C-Mount lens would create mechanical constraints.

The lens can also be integrated into applications requiring infrared-assisted imaging. Unlike a conventional visible-light-only lens, its IR Corrected configuration is designed to reduce focus shift between visible and near-infrared wavelengths, helping maintain more consistent image sharpness when illumination conditions or imaging wavelengths change.

For optical engineers selecting between different sensor formats, focal lengths, and image circles, the Lens Selection Guide provides additional guidance for industrial lens selection.

Compatible Device List

• Industrial Vision Cameras: Suitable for compact cameras used in inspection, positioning, and automated quality-control systems.
• Embedded Vision Modules: The M12 × 0.5 interface and Φ14 × 16mm dimensions support integration into compact camera assemblies.
• Near-Infrared Vision Systems: The IR-corrected optical design is suitable for systems using visible and near-infrared illumination.
• Machine Vision Equipment: Appropriate for component inspection, defect detection, alignment, and dimensional observation.
• Electronic Inspection Devices: The 16mm focal length can be used for targeted inspection of PCBs, connectors, electronic components, and small assemblies.
• Compact Smart Cameras: The small optical package is suitable for embedded AI cameras and other space-constrained imaging devices.

Designed for compact industrial inspection and visible-to-near-infrared machine vision applications.

Frequently Asked Questions

Q: What image formats are supported by this M12 lens?
A: The lens is specified for 1/2″, 1/1.8″, and 2/3″ image formats, providing flexibility for different industrial camera configurations.

Q: What is the focal length of this lens?
A: It uses a 16mm fixed focal length, providing a controlled field of view for targeted inspection and embedded imaging applications.

Q: What is the distortion level?
A: The specified distortion is less than 0.3%, making the lens suitable for applications where maintaining accurate image geometry is important.

Q: Is this lens IR corrected?
A: Yes. The product is specified as IR Corrected, making it suitable for imaging systems that use visible and near-infrared wavelengths and require improved focus consistency across wavelengths.

Q: What is the field of view on a 1/2″ sensor?
A: On a 1/2″ sensor, the specified FOV is 29° diagonal, 23° horizontal, and 17.5° vertical.

Q: Is this lens suitable for machine vision applications?
A: Yes. Its 5MP resolution, <0.3% distortion, fixed 16mm focal length, M12 mount, and IR-corrected design make it suitable for a range of compact machine vision applications.

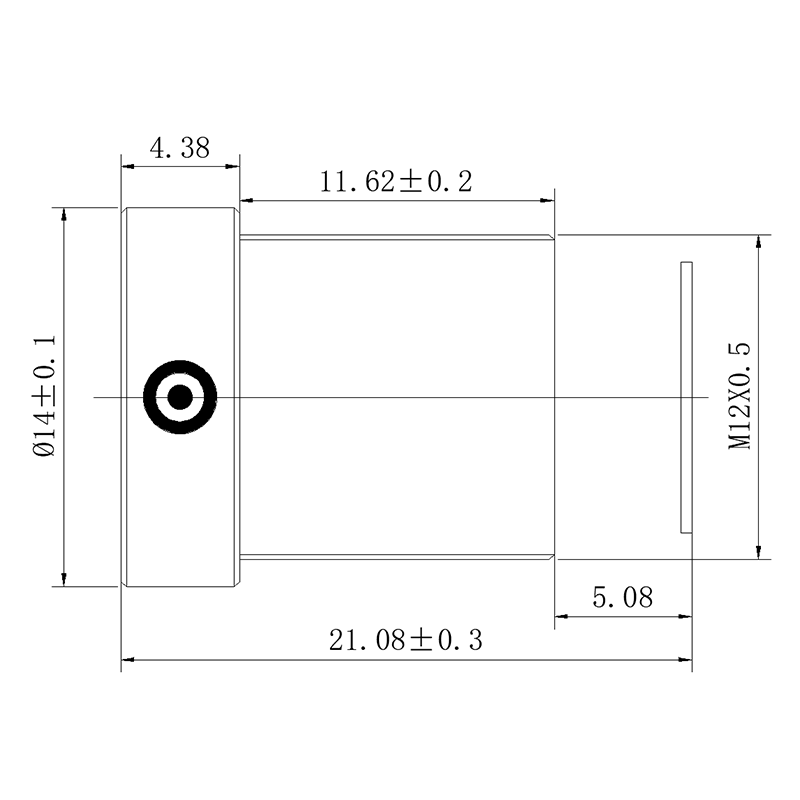

Q: What are the dimensions of this M12 lens?
A: The lens has a compact Φ14 × 16mm overall dimension, making it suitable for space-constrained camera designs.

Q: What mount does this lens use?
A: It uses an M12 × 0.5 mount with a fixed iris and a 5.75mm back focal length.
