Low Distortion Lens – CCL121630MPF

CCL121630MPF is Low-distortion 8-Megapixel CCTV lens with Built-In IR Filter, F3.0 M12 mount, offering different F.O.V.s for different sensor sizes.

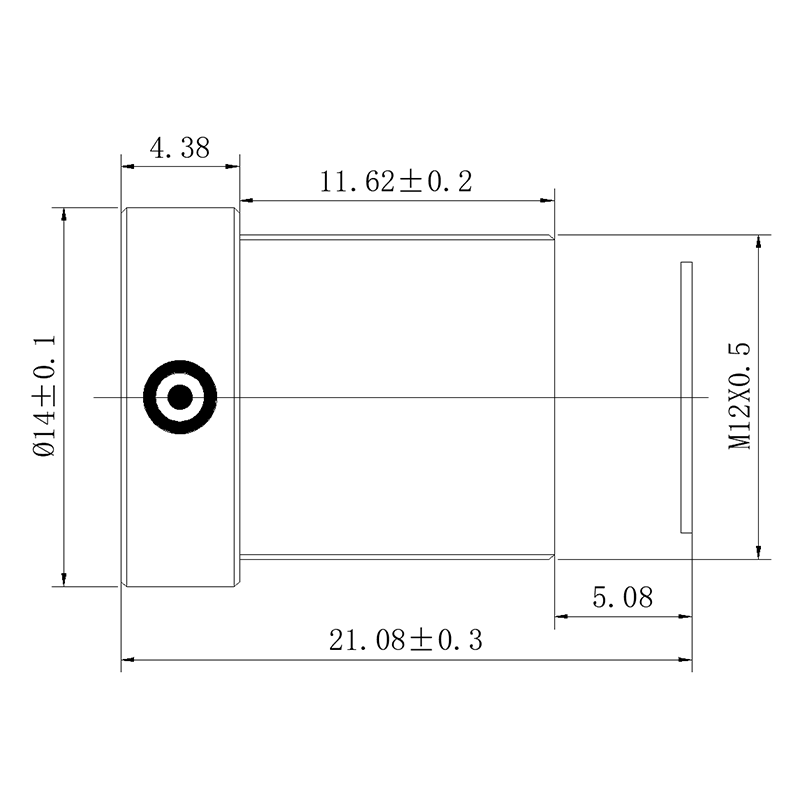

16mm M12 Low Distortion Lens

This 8MP M12 low distortion lens features a 16mm fixed focal length, <0.3% distortion, and compatibility with 1/1.8″ and 1/2.5″ image formats. With a compact M12 × 0.5 mount and fixed F3.0 aperture, it is designed for accurate imaging in industrial inspection, embedded vision, and machine vision systems.

Field of View by Sensor

• 1/1.8″ AR0822: 31° diagonal, 27.5° horizontal, 16° vertical.
• 1/2.5″ AR0522: 26° diagonal, 20.7° horizontal, 15.5° vertical.
• The different FOV values allow system designers to evaluate the lens according to the selected image sensor and required inspection area.
• For projects where working distance and image coverage need to be calculated before lens selection, the FOV Calculator can be used as an engineering reference.

M12 Low Distortion Lens Core Highlights

• 8MP High Resolution: Supports detailed image capture for demanding vision systems.
• <0.3% Low Distortion: Helps maintain accurate object geometry across the image.
• 16mm Fixed Focal Length: Provides a controlled field of view for targeted imaging.
• M12 × 0.5 Mount: Compact mechanical interface for embedded vision equipment.
• IRCF Structure: Integrated IR cut filter supports consistent visible-light imaging.

16mm M12 Low Distortion Lens Applications

Core Application Scenes

This 16mm 8MP M12 lens is designed for applications that require a relatively narrow, controlled field of view together with high-resolution image capture. Its <0.3% distortion makes it particularly suitable when the dimensional relationship between objects in the image needs to remain stable, rather than simply maximizing the viewing area.

In industrial environments, the lens can be used for component inspection, dimensional verification, assembly monitoring, and embedded camera inspection where a 16mm focal length helps isolate the target area from surrounding objects. The 0.3m minimum object distance also provides flexibility for close-to-medium working-distance installations.

The lens is also suitable for compact machine vision cameras and embedded imaging modules where a conventional C-mount optical assembly may be too large. Its M12 × 0.5 interface provides a compact optical solution while maintaining 8MP imaging capability.

For engineers comparing sensor size, focal length, and field of view, the Lens Selection Guide provides useful guidance when selecting an industrial lens for a specific imaging system.

Compatible Device List

• Industrial Cameras: Suitable for compact 8MP industrial and embedded camera modules using 1/1.8″ or 1/2.5″ sensors.
• Machine Vision Systems: Compatible with vision systems used for component inspection, positioning, measurement, and automated quality control.
• Embedded Vision Devices: The M12 × 0.5 mount makes the lens suitable for compact AI vision cameras and embedded imaging hardware.
• CMOS Sensors: Designed around image formats including 1/1.8″ and 1/2.5″, with specified FOV data available for AR0822 and AR0522 sensors.
• Fixed-View Inspection Equipment: The 16mm fixed focal length is appropriate for systems with a defined installation distance and stable inspection area.
• Optical Integration: The compact M12 configuration can simplify integration into space-constrained camera housings and customized vision modules.

Designed for high-resolution industrial inspection and compact machine vision applications.

Frequently Asked Questions

Q: What sensor sizes are compatible with this M12 lens?
A: The lens supports 1/1.8″ and 1/2.5″ image formats. The specified FOV data is based on the AR0822 and AR0522 sensors.

Q: What is the focal length of this lens?
A: This is a 16mm fixed focal length lens, providing a controlled field of view for targeted imaging applications.

Q: What is the distortion level of this 8MP lens?
A: The specified distortion is less than 0.3%, making it suitable for imaging applications where geometric accuracy is important.

Q: Is this lens suitable for machine vision?
A: Yes. Its 8MP resolution, <0.3% distortion, fixed 16mm focal length, and compact M12 mount make it suitable for various embedded and machine vision applications.

Q: What is the field of view with a 1/1.8″ AR0822 sensor?
A: With the AR0822 sensor, the FOV is 31° diagonal, 27.5° horizontal, and 16° vertical.

Q: What is the field of view with a 1/2.5″ AR0522 sensor?
A: With the AR0522 sensor, the FOV is 26° diagonal, 20.7° horizontal, and 15.5° vertical.

Q: Does this lens have an IR cut filter?
A: Yes. The lens structure is specified as With IRCF, indicating an integrated IR cut filter configuration for visible-light imaging.

Q: What type of mount does this lens use?
A: It uses an M12 × 0.5 mount, making it suitable for compact camera modules and embedded vision equipment.
