CCL117049MP
4.9mm Low distortion lens, 1/1.7″ M12/S mount lens, 12-Megapixel wide-angle lens, F2.2 aperture IR corrected CCTV lens.
CCL117049MP is 4.9mm High-Resolution Low distortion lens, 1/1.7″ M12/S mount lens, 12-Megapixel wide-angle lens, F2.2 aperture IR corrected CCTV lens.
| IMAGE FORMAT | 1/1.7″ |
| FOCAL LENGTH | 4.9mm |
| F.O.V.@IMX226 (3840×2160) | 96°(D) |
| 83°(H) | |
| 46°(V) | |
| RESOLUTION | 12 MP |
| TV DISTORTION | <-8% |
| APERTURE | F2.2 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.3m |
| T.T.L. | 33mm |

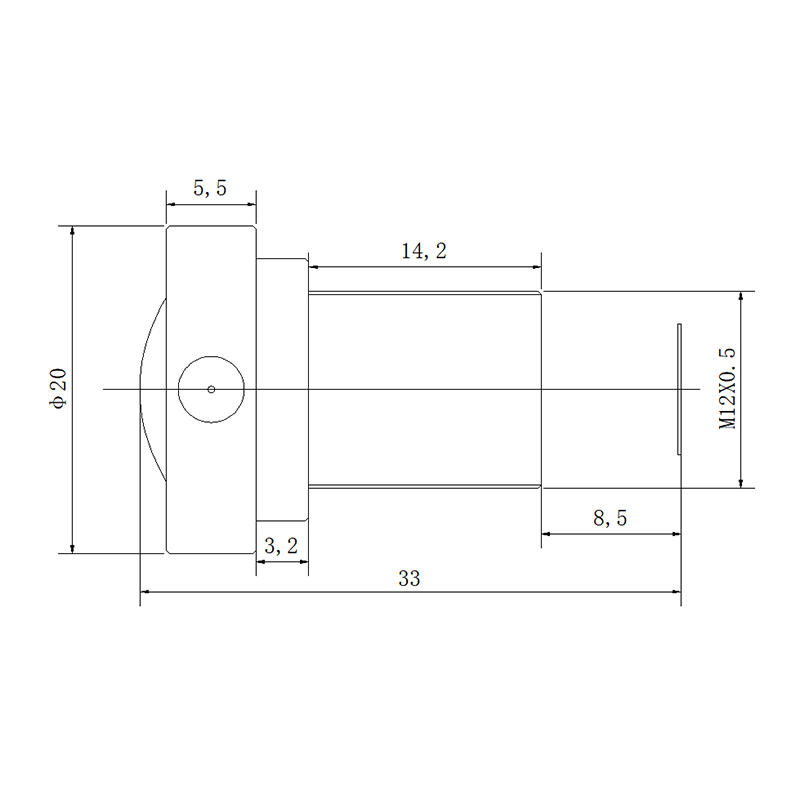

| DIMENSION | Φ20×24.4mm |
| IR | Corrected |
