Low Distortion Lens – CCL11812MPR4

CCL11812MPR4 is Achromatic low distortion M12-mount 12mm lens for 1/1.8″ sensors, featuring F4.0 aperture and 5-megapixel high-resolution performance.

12mm M12 5MP Low Distortion Industrial Lens

This 12mm M12 low distortion lens is designed for compact industrial and machine vision systems using 1/1.8″, 1/2″, or 2/3″ image sensors. With 5MP resolution, less than -1.5% TV distortion, and a compact Φ14 × 11.30mm design, it provides controlled image coverage for embedded vision, inspection, and space-constrained imaging devices.

For engineers selecting a lens according to sensor format and image coverage, the Sensor Guide provides useful background on sensor compatibility. The Lens Selection Guide can also help determine the appropriate focal length and optical configuration.

Product Core Highlights

• 12mm fixed focal length for controlled compact-system imaging.
• 5MP resolution for detailed industrial image capture.
• Low distortion below -1.5% for improved geometric image reproduction.
• M12 × 0.5 mount for compact embedded vision equipment.

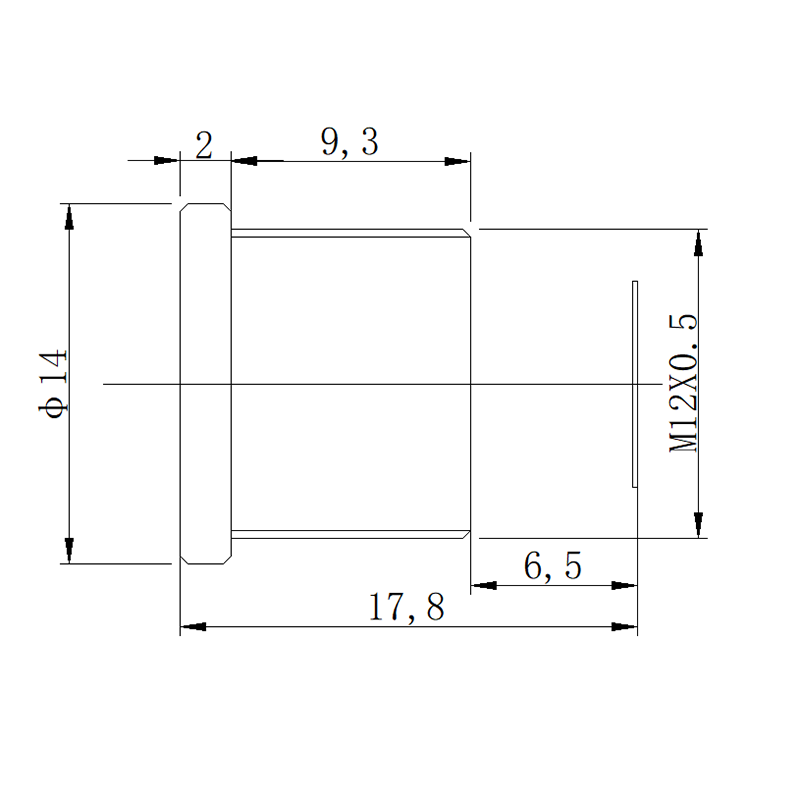

• Φ14 × 11.30mm housing for space-constrained camera designs.

As part of the M12 Lenses range, this compact optical design is well suited to embedded industrial cameras where mechanical space is limited but controlled distortion and reliable image detail are still required.

M12 Low Distortion Industrial Lens Applications

Core Application Scenes

This 12mm M12 industrial lens is designed for compact imaging systems that require a moderate field of view without the geometric distortion associated with more extreme wide-angle optics. On a 1/1.8″ sensor, it provides a 41° diagonal, 33° horizontal, and 25° vertical field of view, making it suitable for capturing a defined inspection area while maintaining controlled image geometry.

The lens is particularly suitable for embedded machine vision equipment, compact inspection cameras, smart devices, and automated imaging modules where the available installation space is restricted. Its Φ14 × 11.30mm dimensions allow optical integration into compact camera housings without requiring the larger mechanical envelope often associated with conventional industrial lenses.

The low distortion performance below -1.5% is useful when straight edges, component shapes, relative positions, or image geometry need to remain accurately represented. This makes the lens suitable for visual inspection, object positioning, barcode or code reading, and other industrial vision tasks where image geometry contributes to reliable image analysis.

The fixed F4.0 aperture provides a stable optical configuration for systems operating under controlled illumination. With a relative illumination specification above 83%, the lens is also designed to maintain useful brightness toward the image periphery, helping produce more consistent image quality across the captured scene.

For system designers determining the required viewing area from sensor size and working distance, the FOV Calculator can be used during the lens selection process.

Designed for compact machine vision, embedded inspection, and space-constrained industrial imaging applications.

Compatible Device List

• Embedded Vision Cameras: Suitable for compact camera modules requiring an M12 lens interface and controlled optical dimensions.
• Industrial Inspection Cameras: Compatible with machine vision systems using 1/1.8″, 1/2″, or 2/3″ sensors within the specified optical format.
• Compact FA Equipment: The small Φ14 × 11.30mm form factor is suitable for automated inspection equipment where installation space is limited.
• Smart Vision Devices: Suitable for embedded cameras used in intelligent inspection, object recognition, and automated visual monitoring.
• Barcode & Code Inspection Systems: The moderate FOV and low distortion characteristics can support applications where printed codes or markings need consistent image reproduction.
• Robotic Vision Modules: The compact M12 configuration can be integrated into lightweight vision modules used for object positioning and visual guidance.
• Custom Embedded Camera Systems: The fixed iris and fixed focal configuration provide a simple optical architecture for volume-integrated camera designs.

For compact camera projects requiring customized optical specifications, mechanical integration, coatings, or other application-specific modifications, engineers can contact Towin Lens for further technical consultation.

Frequently Asked Questions

Q: What sensor sizes are compatible with this 12mm M12 lens?
A: The lens is specified for 1/1.8″, 1/2″, and 2/3″ image formats, providing flexibility across different compact industrial camera platforms.

Q: What is the field of view of this M12 lens?
A: On a 1/1.8″ sensor, the lens provides a 41° diagonal, 33° horizontal, and 25° vertical FOV. The actual FOV will vary with the sensor format used.

Q: Is this lens a low distortion lens?
A: Yes. The specified distortion is below -1.5%, making it suitable for industrial imaging applications where controlled geometric reproduction is important.

Q: What type of mount does this lens use?
A: It uses an M12 × 0.5 mount, which is widely used for compact embedded cameras and small industrial vision modules.

Q: What is the resolution of this 12mm lens?
A: The lens is specified for 5MP resolution, making it suitable for detailed imaging in a range of industrial and embedded vision applications.

Q: Is the focal length adjustable?
A: No. This is a 12mm fixed focal lens with a fixed F4.0 aperture, providing a stable optical configuration for fixed imaging systems.

Q: Why is the compact size important for machine vision applications?
A: The Φ14 × 11.30mm dimensions allow the lens to be integrated into compact camera housings and equipment where installation space is restricted.

Q: What applications are suitable for this low distortion M12 lens?
A: Typical applications include embedded machine vision, compact industrial inspection, robotic vision modules, code inspection, smart vision devices, and space-constrained FA equipment where controlled distortion and compact dimensions are required.
