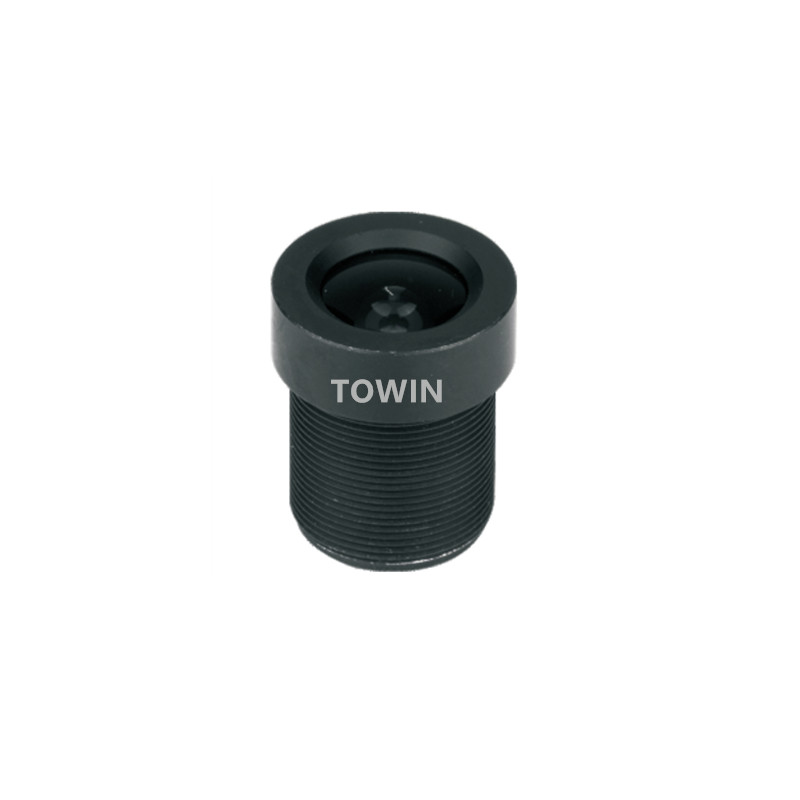

S04013007225 is a megapixle 4mm S-Mount lens. It is designed for 1/3″ megapixel sensors, such as AR0130, MT9M024. It is a fixed focal and fixed iris board lens.
| IMAGE FORMAT | 1/3″ |
| FOCAL LENGTH | 4mm |
| F.O.V. | 92° |
| 72° | |
| 52° | |
| RESOLUTION | 1.3 MP |
| DISTORTION | <19% |
| APERTURE | F2.5 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 22.17mm |
| STRUCTURE | 4G |

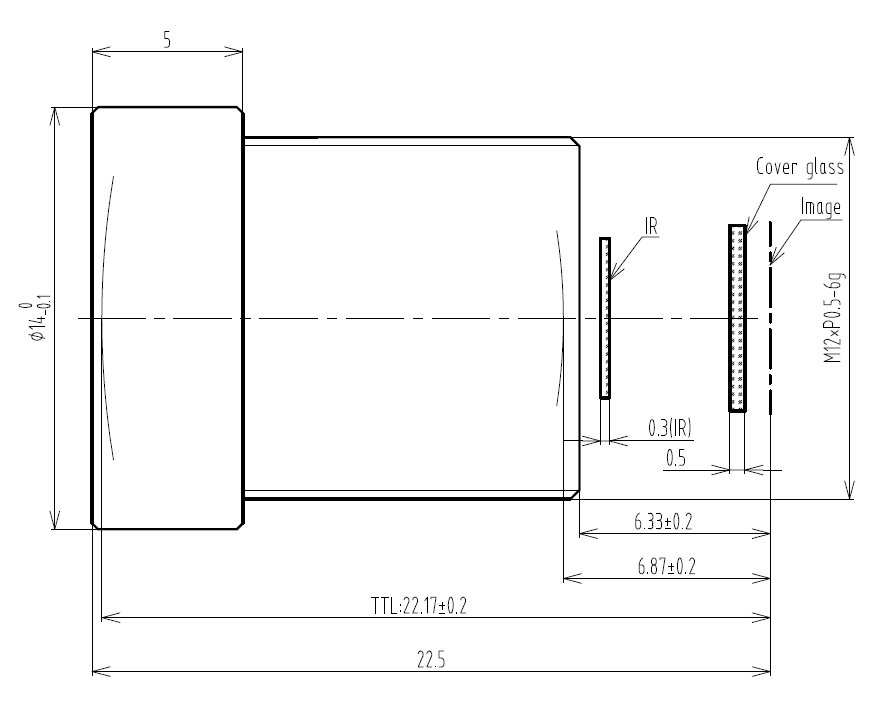

S04013007225 megapixle 4mm S-Mount lens-1
