Fisheye Lens – S01812719520F
1.8mm Fisheye S-Mount lens supports 1/2.7″ sensors, 3MP resolution and up to 195° FOV for panoramic security and embedded vision applications.

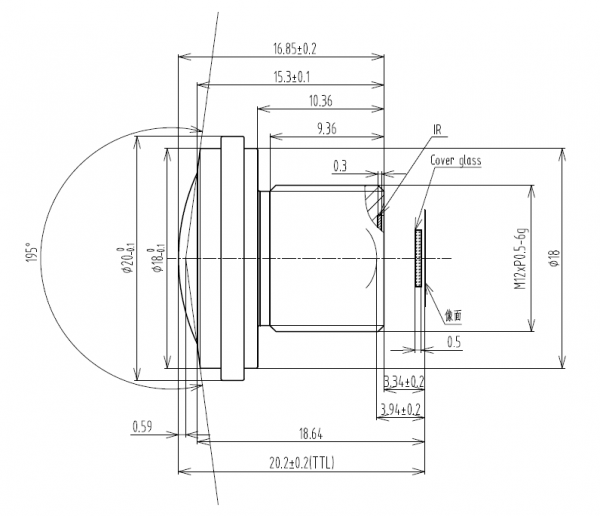

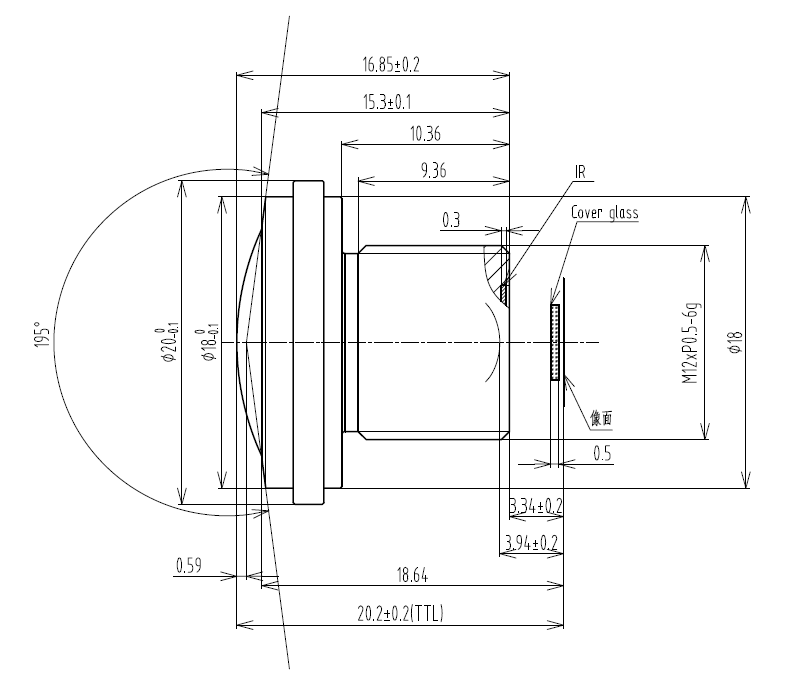

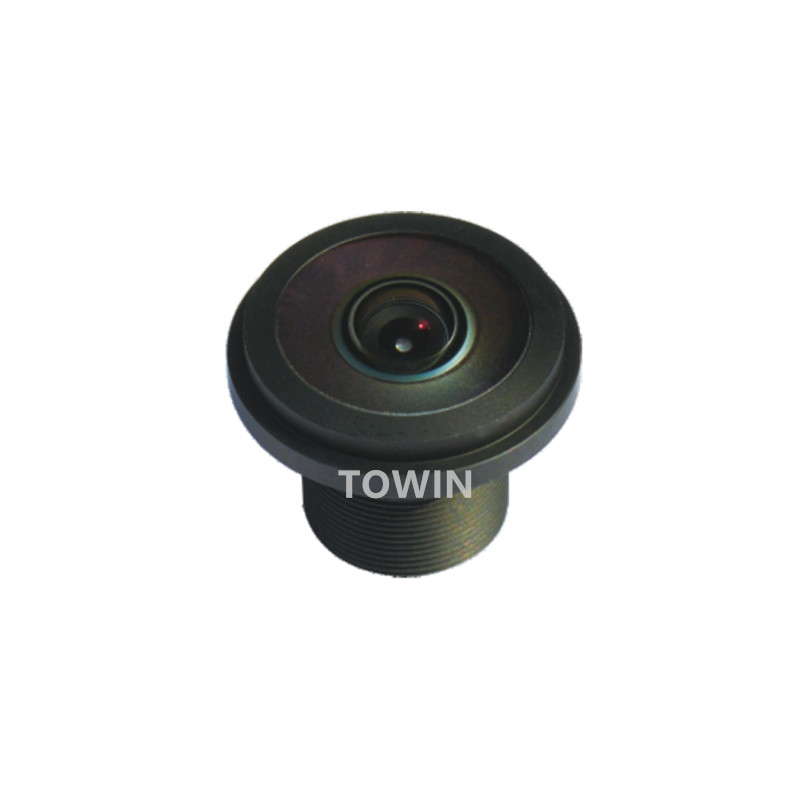

S01812719520F is a 1.8mm fisheye S-Mount lens. The image circle is Φ4.8, for 1/2.7″ sensors, such as OV2710, OV2735, AR0230, to get HFOV 195 degree. It has large aperture F2.0 for CCTV.
| IMAGE FORMAT | Φ4.8, 1/2.7″ |
| FOCAL LENGTH | 1.8mm |
| F.O.V.(OV2735) | 195° |
| 195° | |
| 116° | |
| RESOLUTION | 3 MP |
| DISTORTION | <90% |
| APERTURE | F2.0 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.1m |
| T.T.L. | 20.2mm |
| STRUCTURE | 5G1M+IRCF |
Product Description
The 1.8mm Fisheye S-Mount lens is designed for compact camera systems requiring extremely wide-angle coverage and reliable image performance. Supporting Φ4.8mm and 1/2.7″ image formats, this lens provides up to a 195° field of view with the OV2735 sensor, enabling cameras to capture an exceptionally broad scene from a single optical module.
Supporting 3MP resolution and an F2.0 fixed aperture, the lens provides stable image performance for panoramic and wide-area monitoring applications. The 0.1m minimum object distance enables close-range imaging, while the M12x0.5 mount provides straightforward integration into compact camera platforms.
Featuring a 5G1M+IRCF optical structure and 20.2mm total track length, this lens is suitable for panoramic security cameras, smart vision systems, embedded cameras and applications requiring maximum environmental coverage.
Fisheye S-Mount Lens Key Features
Up to 195° Ultra-Wide Field of View
The 1.8mm fisheye lens provides up to a 195° field of view with the OV2735 sensor, allowing cameras to capture extremely broad scenes and significantly reduce blind areas.
3MP High-Resolution Imaging
Supporting 3MP resolution, the lens delivers detailed image capture for panoramic surveillance, smart security and embedded vision applications.
1/2.7″ Sensor Compatibility
The lens supports 1/2.7″ image formats and is designed for compact camera modules requiring ultra-wide-angle imaging.
F2.0 Fixed Aperture
The F2.0 aperture provides stable light transmission and consistent imaging performance across different wide-angle camera applications.
Compact M12x0.5 Mount
The M12x0.5 interface provides a compact optical solution for embedded cameras, smart devices and space-constrained imaging systems.
5G1M+IRCF Optical Structure
The 5G1M+IRCF construction combines glass, molded optical elements and an IR-cut filter component to support stable optical performance and reliable image quality.
0.1m Minimum Object Distance
The short 0.1m minimum object distance enables close-range panoramic imaging while maintaining an ultra-wide viewing angle.
Fisheye S-Mount Lens Applications
Panoramic Security Cameras
This 1.8mm M12 fisheye lens is suitable for panoramic surveillance systems requiring extremely wide coverage and reduced monitoring blind spots.
Smart Security Systems
The ultra-wide field of view allows cameras to monitor extensive areas from a single installation position, supporting intelligent security and video analysis.
Embedded Vision Systems
The compact M12x0.5 mount makes the lens suitable for embedded cameras, smart devices and compact imaging modules.
Robotics and Autonomous Vision
The wide viewing angle helps robotic and autonomous systems capture more surrounding visual information for environmental perception and monitoring.
Industrial Wide-Area Monitoring
The lens can be integrated into industrial imaging systems requiring broad scene observation and environmental awareness.
Why Choose TOWIN as Your Industrial Lens Manufacturer?
TOWIN provides professional optical solutions for M12 lenses, fisheye lenses and customized imaging systems. With optical design expertise, precision manufacturing capability and experience in compact ultra-wide-angle optics, TOWIN supports customers from optical development through mass production.
| TOWIN Capability | Customer Benefits |
|---|---|
| Advanced optical design expertise | Optimized fisheye solutions for ultra-wide imaging requirements |
| M12 lens development experience | Compact optical solutions for embedded camera systems |
| Ultra-wide-angle optical design capability | Solutions for panoramic and broad-area imaging |
| OEM and ODM customization support | Flexible optical and mechanical customization |
| Precision manufacturing capability | Stable optical performance and consistent product quality |
| Strict quality control process | Reliable lenses for long-term imaging applications |
Frequently Asked Questions
Q: What applications is the 1.8mm M12 fisheye lens suitable for?
A: The 1.8mm M12 fisheye lens is suitable for panoramic security cameras, smart security systems, embedded vision devices, robotics and industrial monitoring applications requiring an ultra-wide field of view.
Q: What is the maximum field of view of this 1.8mm fisheye lens?
A: When paired with the OV2735 sensor, the lens provides up to a 195° field of view according to the supplied specifications, making it suitable for extremely wide-area imaging.
Q: What resolution does this M12 fisheye lens support?
A: The lens supports 3MP resolution, providing detailed image capture for panoramic monitoring and intelligent vision applications.
Q: What sensor size is compatible with this lens?
A: The lens supports a 1/2.7″ image format and is designed for compact camera systems using an M12x0.5 mount.
Q: What is the minimum object distance of this lens?
A: The minimum object distance is 0.1m, allowing the lens to capture relatively close scenes while maintaining its ultra-wide viewing capability.
Q: What is the advantage of the 5G1M+IRCF optical structure?
A: The 5G1M+IRCF construction combines multiple optical elements with an IR-cut filter component to support stable optical performance and reliable image quality.
Q: Can TOWIN customize M12 fisheye lenses for specific applications?
A: Yes. TOWIN provides OEM and ODM customization services, including optical optimization, mechanical adjustments and customized fisheye lens solutions for different camera platforms.
Q: Does TOWIN support mass production of M12 fisheye lenses?
A: Yes. TOWIN supports customized optical development and mass production with professional manufacturing processes and strict quality control systems.
