Fisheye Lens – CCL14010MPF

CCL14010MPF is 1/4″ 1.0mm Ultra Wide Angle fisheye lens with Built-In Filter, F2.0 S-Mount Lenses with Low F-number (Fast Lenses), VGA resolution.

1.0mm M12 Fisheye Lens

This 1.0mm M12 fisheye lens is designed for compact camera systems that require an exceptionally wide viewing angle in a small optical package. With a 165° diagonal FOV, 125° horizontal FOV, and 105° vertical FOV, it provides broad scene coverage for compact panoramic and close-range imaging applications.

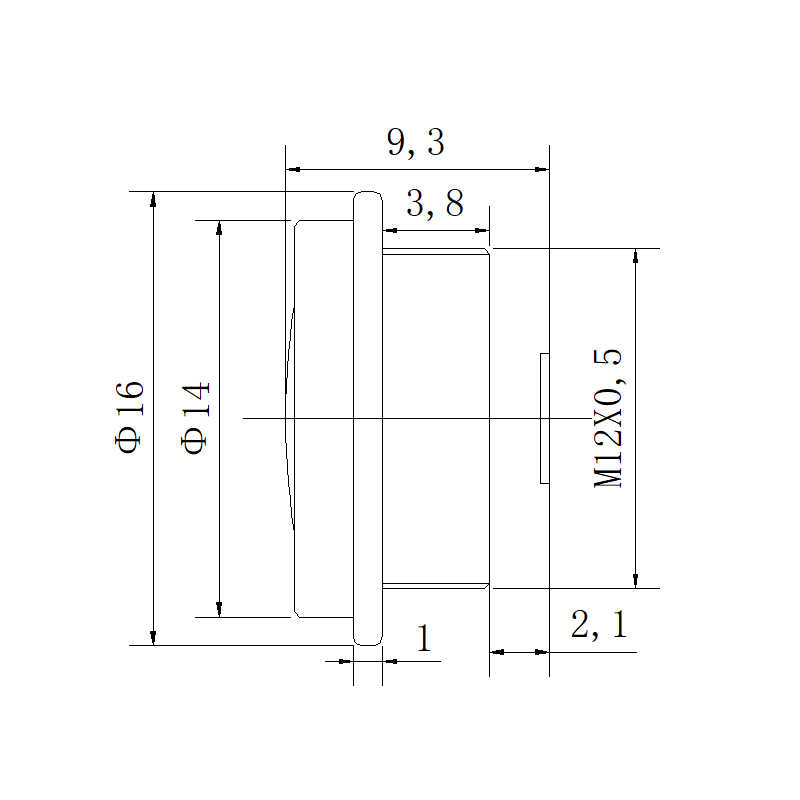

Featuring a 1/4″ image format, F2.0 aperture, M12×0.5 mount, and 2G2P+IRCF optical construction, this fixed-focal M12 fisheye lens is well suited for embedded cameras and space-constrained imaging devices where maximum coverage is a priority.

M12 Fisheye Lens Core Highlights

• 165° diagonal FOV delivers exceptionally broad image coverage for compact camera systems.
• 1.0mm ultra-short focal length supports panoramic and close-range wide-angle imaging.
• F2.0 aperture provides a practical optical configuration for compact embedded cameras.
• M12×0.5 mount simplifies integration into small camera modules and customized housings.
• 2G2P+IRCF structure combines compact optical construction with an integrated IR cut filter element.

M12 Fisheye Lens Applications

Core Application Scenes

This 1.0mm M12 fisheye lens is optimized for imaging systems where a conventional wide-angle lens cannot provide sufficient scene coverage. Its 165° diagonal FOV allows a compact camera module to capture a very broad nearby environment, making it particularly suitable for panoramic observation and close-range monitoring.

One key application is compact indoor panoramic monitoring. The lens can be integrated into small smart cameras installed in rooms, entrances, retail spaces, or other confined environments where a broad viewing angle is needed from a fixed camera position. The fisheye optical design helps reduce blind areas and increase the amount of surrounding scene captured by a single camera.

The lens is also suitable for compact robotics and mobile vision modules. A 165° diagonal field of view can provide a broad visual perspective for small mobile platforms operating at close range, helping capture surrounding obstacles, people, and objects without requiring a large camera assembly.

For embedded panoramic imaging devices, the 1.0mm focal length and M12×0.5 mount provide a compact optical solution where mechanical space is limited. The fixed-iris and fixed-zoom configuration can also simplify integration into dedicated camera products.

The integrated IRCF structure makes this configuration particularly relevant to camera modules where an IR cut filter is required as part of the optical assembly. It should be noted that IRCF indicates an IR cut filter configuration and should not be interpreted as an IR-corrected optical design.

Designed for compact panoramic monitoring, embedded fisheye imaging, and close-range wide-area vision applications.

Compatible Device List

• Compact Panoramic Cameras: Suitable for small camera modules requiring extremely broad scene coverage from a single imaging position.
• Smart Indoor Cameras: Can be integrated into compact room-monitoring, entrance-monitoring, and IoT camera systems.
• Robotic Vision Modules: Suitable for mobile robots and compact robotic platforms requiring broad close-range environmental awareness.
• Embedded Camera Boards: Compatible with compact camera assemblies using 1/4″ image sensors and M12×0.5 lens interfaces.
• Panoramic Imaging Devices: The 165° diagonal FOV makes the lens suitable for applications requiring broad environmental observation.
• OEM Camera Systems: The compact fixed-focal configuration can be integrated into customized camera housings and embedded imaging products.

For selecting a suitable image sensor for this fisheye lens, refer to the Sensor Guide. For a broader understanding of optical parameters and lens selection, the Lens Selection Guide provides useful design references.

You can also explore TOWIN’s M12 Lenses for additional compact S-Mount optical solutions and compare this product with other Fisheye Lenses.

Frequently Asked Questions

Q: Is this a fisheye lens?
A: Yes. This product is designed as an M12 fisheye lens, with a 165° diagonal FOV and 1.0mm focal length for extremely wide-area imaging.

Q: What is the field of view of this fisheye lens?
A: The lens provides a 165° diagonal FOV, 125° horizontal FOV, and 105° vertical FOV on the specified 1/4″ image format.

Q: What sensor format is this M12 fisheye lens designed for?
A: The specified image format is 1/4″, with VGA resolution listed for this optical configuration.

Q: What is the focal length of the lens?
A: The focal length is 1.0mm, providing an exceptionally wide field of view for compact panoramic and close-range imaging systems.

Q: Does this lens have adjustable focus or zoom?
A: The lens uses manual focus and a fixed zoom configuration. It is intended for camera systems where the optical configuration can be set during installation or integration.

Q: What does the 2G2P+IRCF structure mean?
A: The lens uses a 2G2P optical structure combined with an IRCF, or infrared cut filter, as part of the optical configuration.

Q: Is this lens an IR corrected lens?
A: No. The supplied specification identifies an IRCF configuration, which refers to an IR cut filter. Users shall not classify this lens as IR-corrected unless its optical design features dedicated correction for infrared wavelength variation.

Q: What is the BFL of this M12 fisheye lens?
A: The specified back focal length (BFL) is 2.2mm, which is suitable for compact camera module integration.

Related Products & Optical Resources

For applications requiring a very broad viewing angle, explore TOWIN’s dedicated Fisheye Lenses range. The complete M12 Lenses category also provides additional compact optical solutions for embedded camera systems.

When designing a fisheye imaging system, understanding sensor format and field of view is essential. The Lens Basics section provides fundamental information about lens parameters, while the Optical Design section can help with optical system considerations.

For wide-area security and monitoring applications, explore TOWIN’s Smart Security solution. For compact robotic imaging, the Robotics Vision solution provides additional application information.

If you need to evaluate the relationship between focal length, sensor size, and field of view, use the FOV Calculator before finalizing your camera configuration.

For OEM/ODM requirements, customized optical configurations, or technical assistance, contact TOWIN.
