Wide Angle Lens – CCL14013

CCL14013 is 1/4″ 1.3mm Wide Angle Lens with Low Dispersion, Low F-number S-Mount Lens (F2.0), VGA resolution CCTV lens, surveillance lens.

1.3mm M12 Wide Angle Lens

This 1.3mm M12 wide angle lens is designed for compact camera systems that require broad scene coverage without using a fisheye optical design. With a 140° diagonal FOV, F2.0 aperture, and 1/4″ image format, it provides a practical solution for close-range wide-area imaging in space-constrained camera modules.

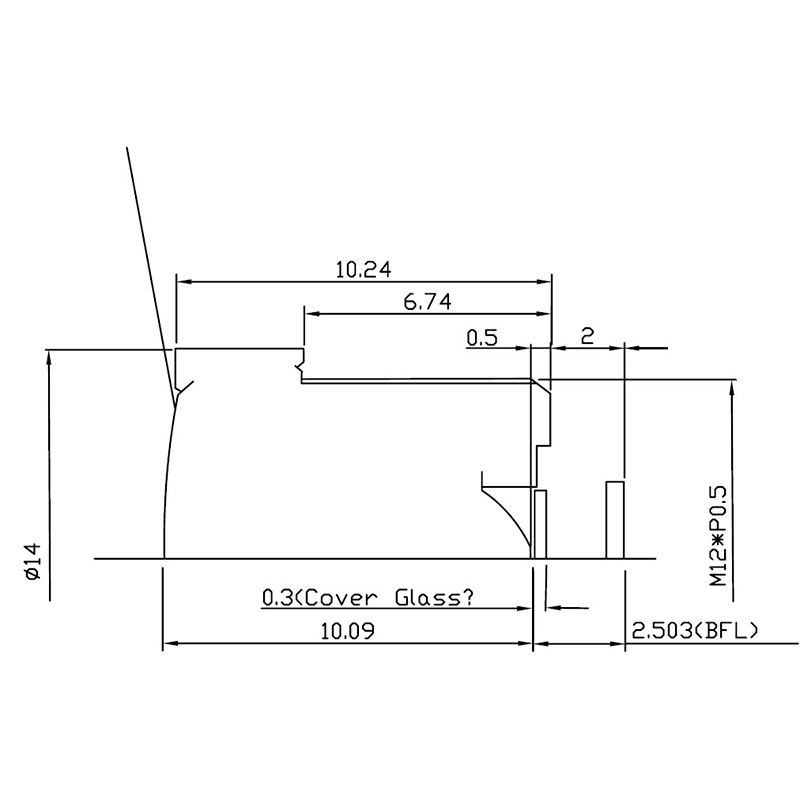

Featuring an M12×0.5 mount, 2.50mm BFL, 12.59mm TTL, and 0.2m minimum object distance, this fixed-focal lens is well suited for embedded cameras and compact monitoring devices where a wide viewing angle and short installation distance are important.

M12 Wide Angle Lens Core Highlights

• 140° diagonal FOV provides broad scene coverage for compact imaging systems.
• 1.3mm focal length supports wide-area close-range imaging without a fisheye classification.
• F2.0 aperture provides a practical light-gathering configuration for embedded cameras.
• 0.2m M.O.D. supports close-range imaging where the camera is installed near the monitored scene.
• Compact 12.59mm TTL helps accommodate space-constrained camera module designs.

M12 Wide Angle Lens Applications

Core Application Scenes

This 1.3mm M12 wide angle lens is designed for compact imaging applications where a conventional narrow-angle lens cannot provide enough scene coverage, but a fisheye lens is not required. Its 140° diagonal FOV allows a single camera module to monitor a broad nearby area while maintaining a compact optical configuration.

A suitable application is close-range indoor monitoring, particularly in small rooms, entrances, equipment enclosures, and compact IoT devices. The combination of a 1.3mm focal length and 0.2m M.O.D. makes the lens suitable for situations where the camera needs to observe a nearby scene from a relatively short installation distance.

The lens can also be used in compact embedded vision modules installed in smart devices, access equipment, and small monitoring systems. Its M12×0.5 mount provides a familiar mechanical interface for miniature camera assemblies, while the 12.59mm TTL helps designers manage limited internal installation space.

For mobile and robotic devices, the wide FOV can provide broad close-range environmental coverage, making it useful for applications where the camera needs to observe nearby objects or surroundings rather than identify distant fine details.

The fixed iris and fixed zoom configuration also makes the lens appropriate for dedicated camera products where the optical setup is established during system integration.

Designed for close-range wide-area monitoring, compact embedded cameras, and space-constrained imaging applications.

Compatible Device List

• Compact Indoor Cameras: Suitable for small monitoring modules requiring broad coverage across nearby scenes.
• IoT Imaging Devices: Can be integrated into smart-home and connected devices that require compact wide-angle imaging.
• Embedded Camera Modules: Compatible with 1/4″ sensor-based camera assemblies using an M12×0.5 interface.
• Access & Equipment Monitoring: Suitable for compact cameras installed near entrances, equipment, or enclosed spaces.
• Mobile Robotic Cameras: Can provide broad close-range visual coverage for compact mobile platforms.
• OEM Camera Systems: The fixed-focal design can be integrated into customized camera housings and dedicated imaging products.

For sensor selection and compatibility considerations, refer to the Sensor Guide. For additional guidance on selecting an appropriate lens, see the Lens Selection Guide.

The complete M12 Lenses range provides additional compact optical solutions, while TOWIN’s Wide Angle Lenses category can be used to compare other wide-field configurations.

Frequently Asked Questions

Q: Is this a fisheye lens?
A: No. Although the lens provides a wide 140° diagonal FOV, this product is classified as a wide angle lens rather than a fisheye lens.

Q: What is the focal length of this M12 lens?
A: The focal length is 1.3mm, providing a broad viewing angle for compact close-range imaging systems.

Q: What is the field of view?
A: The specified diagonal field of view is 140° on the 1/4″ image format.

Q: What sensor format is this lens designed for?
A: This lens is specified for a 1/4″ image format with VGA resolution.

Q: What is the minimum object distance of this wide angle lens?
A: The M.O.D. is 0.2m, making the lens suitable for relatively close-range imaging applications.

Q: What are the BFL and TTL of the lens?
A: The specified BFL is 2.50mm and the total track length (TTL) is 12.59mm.

Q: Does the lens have adjustable iris and zoom?
A: No. The lens uses a fixed iris and fixed zoom configuration. Focus is manual, allowing the optical system to be adjusted during camera integration.

Q: What type of mount does the lens use?
A: It uses an M12×0.5 mount, which is widely used for compact embedded camera and miniature vision modules.

Related Products & Optical Resources

For additional compact optical solutions, explore TOWIN’s M12 Lenses collection. For applications requiring broad scene coverage, the Wide Angle Lenses category provides additional options.

Selecting the correct combination of sensor size, focal length, and FOV is important when designing a wide-angle imaging system. The Lens Basics section provides fundamental optical information, while the Optical Design section covers broader lens design considerations.

For close-range monitoring and embedded applications, explore TOWIN’s Smart Security and Robotics Vision solutions.

Before finalizing the camera configuration, you can use the FOV Calculator to estimate scene coverage based on lens and installation parameters.
