S02814008324F

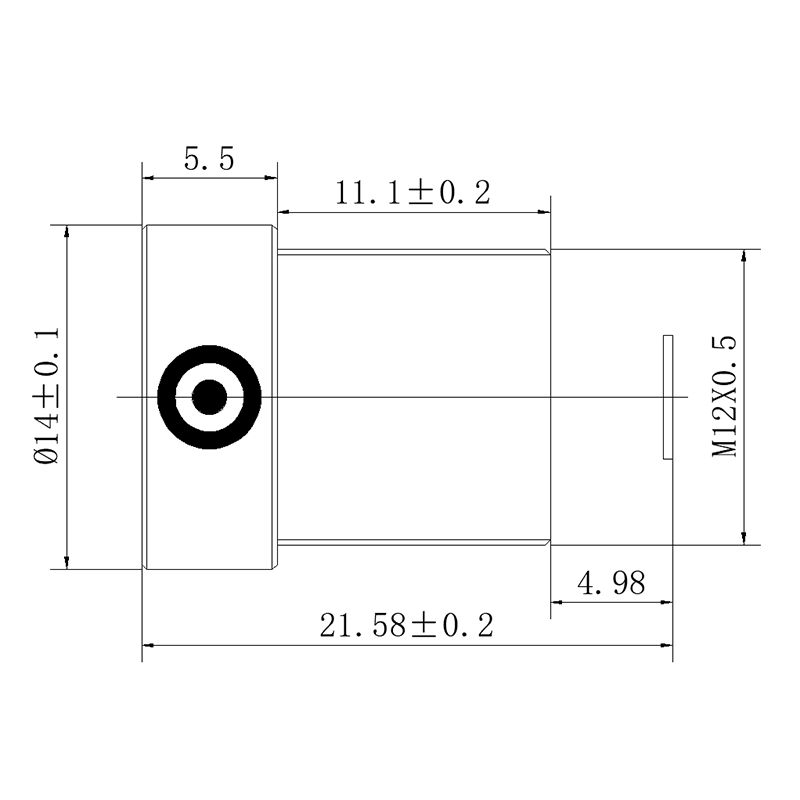

Wide-angle 1.3-Megapixel CCTV Lens with Built-In IR Filter, 1/4″ Φ5.2 M12 lens 120°(D) F2.4 Suitable for security Surveillance.
S02814008324F is Wide-angle 1.3-Megapixel CCTV Lens with Built-In IR Filter, 1/4″ Φ5.2 M12 lens 120°(D) F2.4 Suitable for security Surveillance.
| IMAGE FORMAT | MaxΦ5.2, 1/4″ |
| FOCAL LENGTH | 2.8mm |
| F.O.V. (1/4″, ASX340AT) | 120°(D) |
| 90°(H) | |
| 66°(V) | |
| RESOLUTION | 1.3MP |
| DISTORTION | <-48% |
| APERTURE | F2.4 |
| MOUNT | M12x0.5 |
| IRIS | Fixed |
| M.O.D. | 0.2m |
| IR | With IRCF |
